Dongfeng tianland 8X4 straight crane truck with ladder mounted crane in ChinaDongfeng tianland 8X4 straight crane truck with ladder mounted crane in ChinaDongfeng tianland 8X4 straight crane truck with ladder mounted crane in China

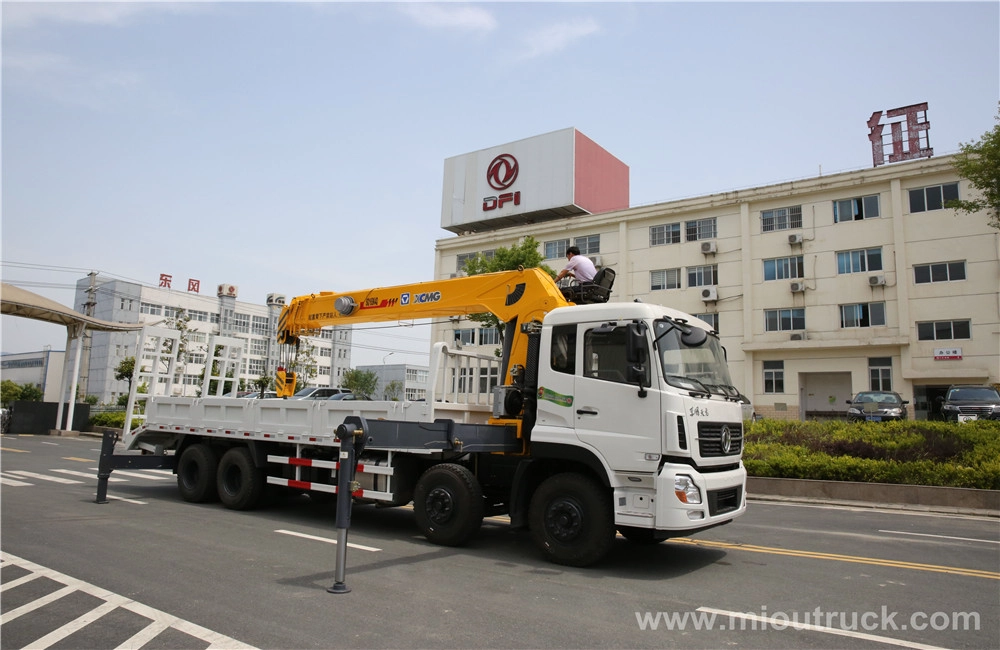

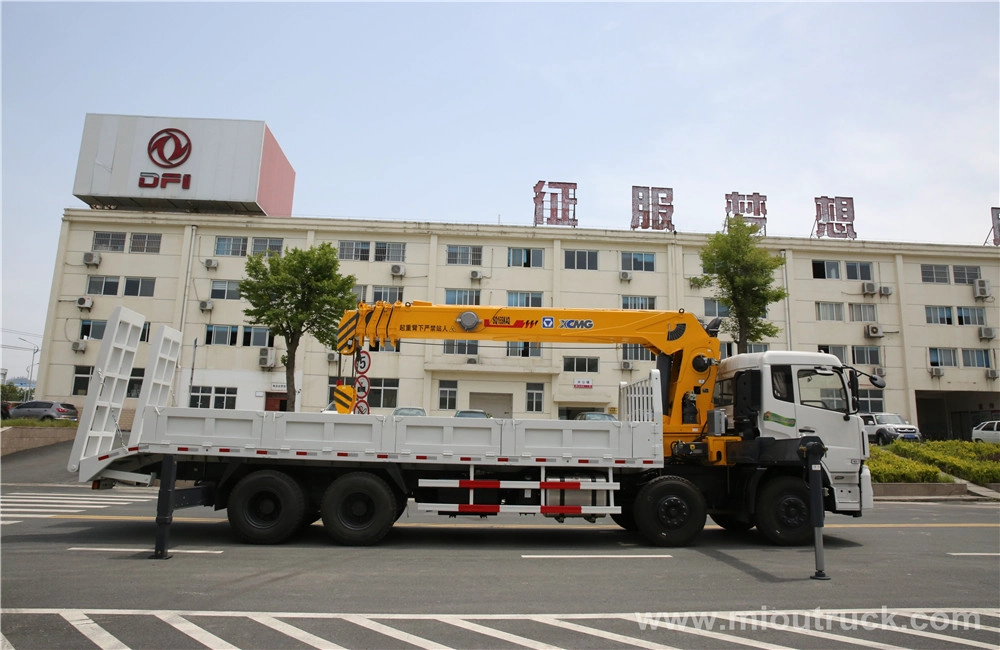

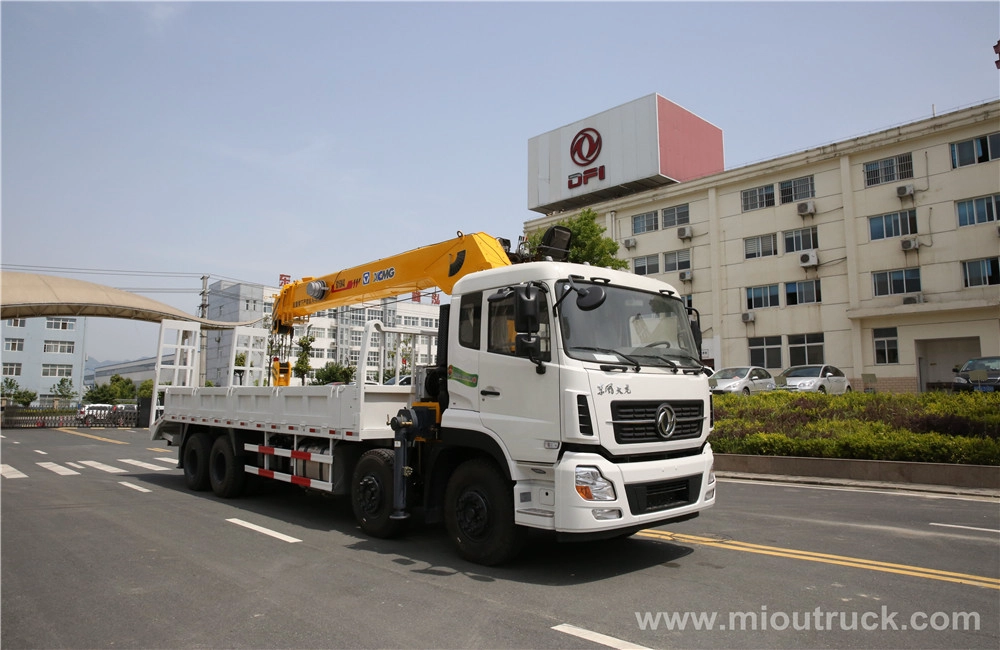

Dongfeng tianland 8X4 straight crane truck with ladder mounted crane in China

  • 1.Feature: Truck Crane
  • 2.Condition: New
  • 3.Max. Lifting Load:16000
  • 4.Max. Lifting Height: 11.518
  • 5.Application: construction
  • 6.Model Number: SQ16ZK3Q

Quick Details:

Feature: Truck Crane Condition: New Rated Lifting Moment: 16

Max. Lifting Load:16000            Model Number: SQ16ZK3Q Span:15

Max. Lifting Height: 11.518   Application: construction







Product Name Dongfeng 8x4 crane truck with ladder
Driving Type  8×4,left hand drive
Weights
GVW(kg) 31000
Rated payload weight(kg) 12465
Curb weight(kg) 18340
Dimensions
Wheelbase(mm) 1950+4250+1300
Overall Dimension(mm) 11690×2500×3920
Box dimension (mm) 7900×2294×550,600,800
 Max speed(km/h) 90
Engine
Engine model ISDe270 30
 Drive Line
Transmission 9JS119T-B,9 forwards,1 reverse gear,manual operation
Steering With power steering
Brake system Air brake
Cab
Air container Have
Standard configuration sound,electric windows,and so on
Axle
Front axle 5+5 tons
Rear axle 10+10 tons
Tire specification
Tire specification 10.00-20,10.00R20,11.00-20,11.00R20,295/80R22.5
12 tires+1 spare tire



Brief Introduction:

   Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.



Company Display:



Factory Display:








Packaging Details:

   nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriersor ro-ro ship or according to your requirements

Delivery Detail: 15 days






    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
     If you have any other questions or need any other information, please feel free to contact me. It would be my great pleasure to be on your service. Please check my contact information as following:
