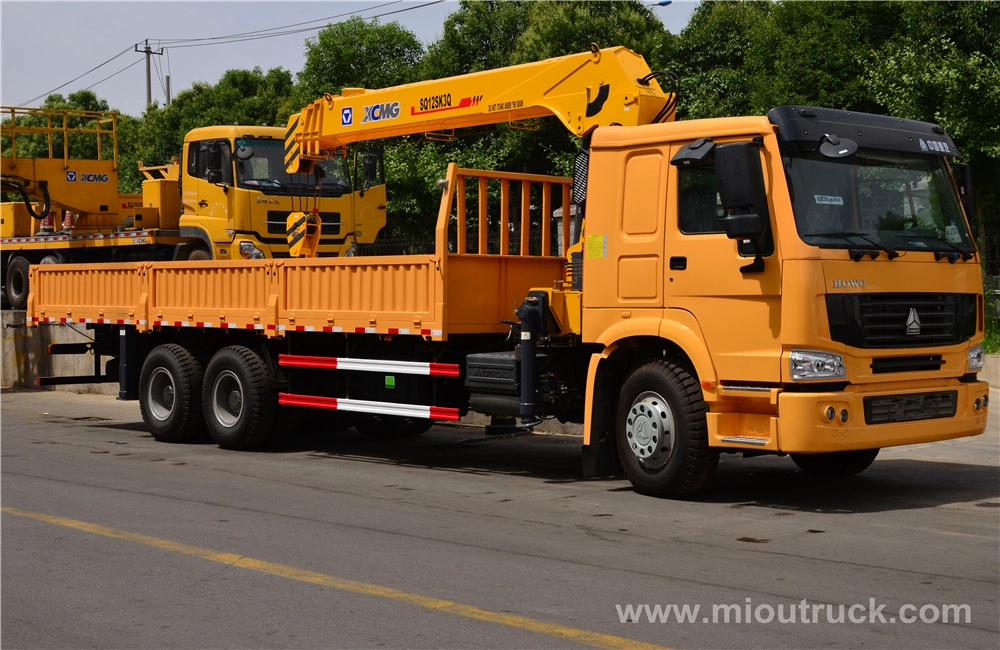

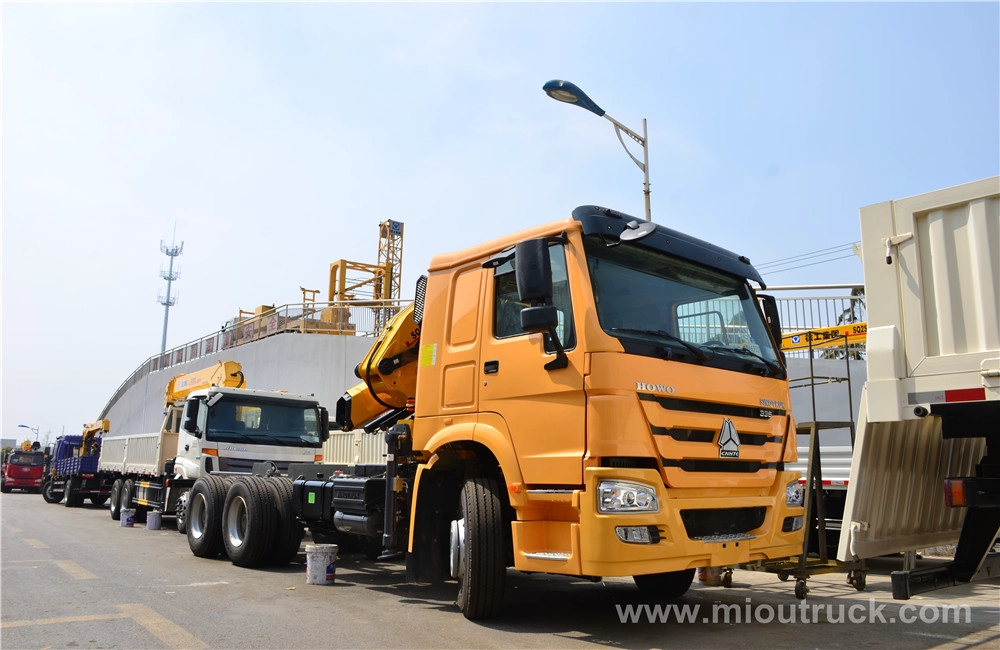

HOWO 6X4 truck mounted crane china supplier with good quality for sale
- 1.Condition:New
- 2.Drive Wheel:6X4
- 3.Emission Standard:Euro3
- 4.Quantity of axles:3
- 5.Fuel Type:Diesel
QUICK DETAILS:
Condition:New Emission Standard:Euro3 Total mass: 25000kg
Drive Wheel:6x4 Fuel Type:Diesel Curb weight: 15870kg
Feature:Truck Crane Quantity of axles:3 Max.vehicle speed: 90km/h
| Basic information of 5 tons truck crane | ||||
| Brand | HOWO | Drive Type | 6x4 | |
| Total mass | 25000kg | Rated load | 9000kg | |
| Curb weight | 15870kg | Brand of crane | XCMG | |
| Emission level | Euro 3 | Quantity of axles | 3 | |
| Wheel base | 5825+1350mm | F/R axle load | 7000/18000kg | |
| Quantity of leaf spring | 12th,Dec | Quantity of tires | 10 | |
| Tyre type | 11.00-20 | Approach/Departure angle | 16/14° | |
| Rear track | 1830/1830mm | Overall dimension | 11980x2498x3960mm | |
| Max.vehicle speed | 90km/h | Box dimension | 7500x2380x500mm | |
| Passengers in cab | 2 | Chassis model | ZZ1257N5847C | |
| Engine specifications | ||||
| Model | WD615.96C | |||
| Max.power | 276kw/375HP | |||
| Max.torque | 1500N.m | |||
| Displacement | 9726ml | |||
| Description | In line ,6 cylinders,4 strokes,water cooled,inter cooled, turbo charged,EGR |
|||
| Crane specifications | ||||
| Model | SQ5ZK2Q | |||
| Max Lifting Moment | 10.5t.m | |||
| Max Lifting Capacity | 5000kg | |||
| Recommend Power Needed At Recommend Oil Flow |
18kw | |||
| Max Oil Flow of Hydraulic System | 25L/min | |||
| Rated Pressure Of Hydraulic System | 28MPa | |||
| Oil Tank Capacity | 90L | |||
| Rotation Angle | (360°)All Rotation | |||
Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Payment terms,package and delivery:
Delivery date: 7-10 days
Payment terms: 30% TT as deposit and 70% TT upon receipt of B/L copy
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 7-10 days
Payment terms: 30% TT as deposit and 70% TT upon receipt of B/L copy
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
REMARKS:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Please check my contact information as following:
