Home > Products > Sewage suction truck > 6CBM 4*2 4TON SEWAGE SUCTI.....
6CBM 4*2 4TON SEWAGE SUCTION TRUCK WITH 91KW POWER6CBM 4*2 4TON SEWAGE SUCTION TRUCK WITH 91KW POWER6CBM 4*2 4TON SEWAGE SUCTION TRUCK WITH 91KW POWER6CBM 4*2 4TON SEWAGE SUCTION TRUCK WITH 91KW POWER

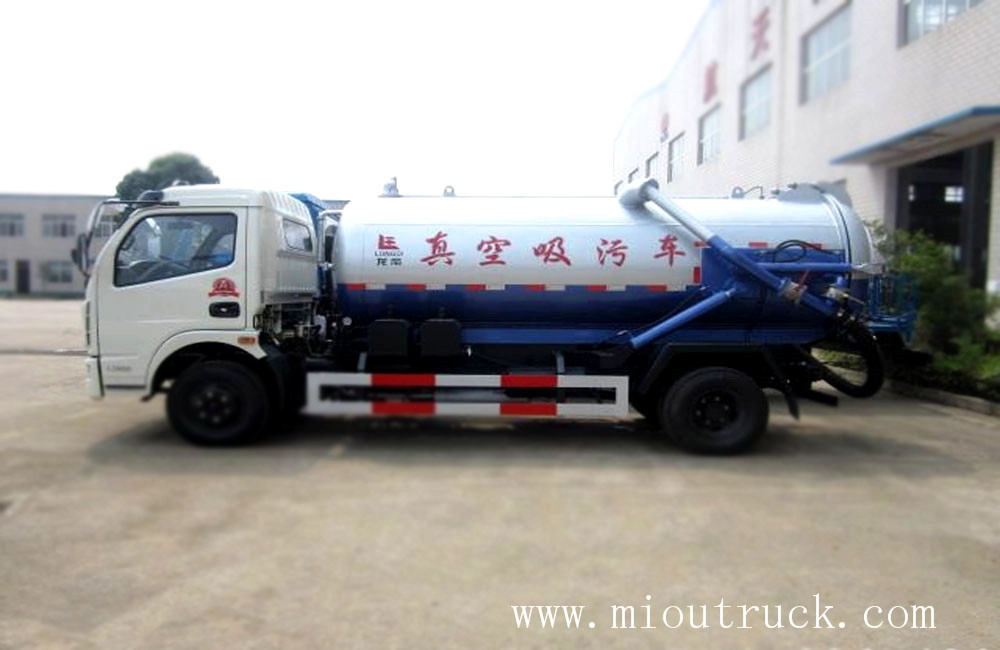

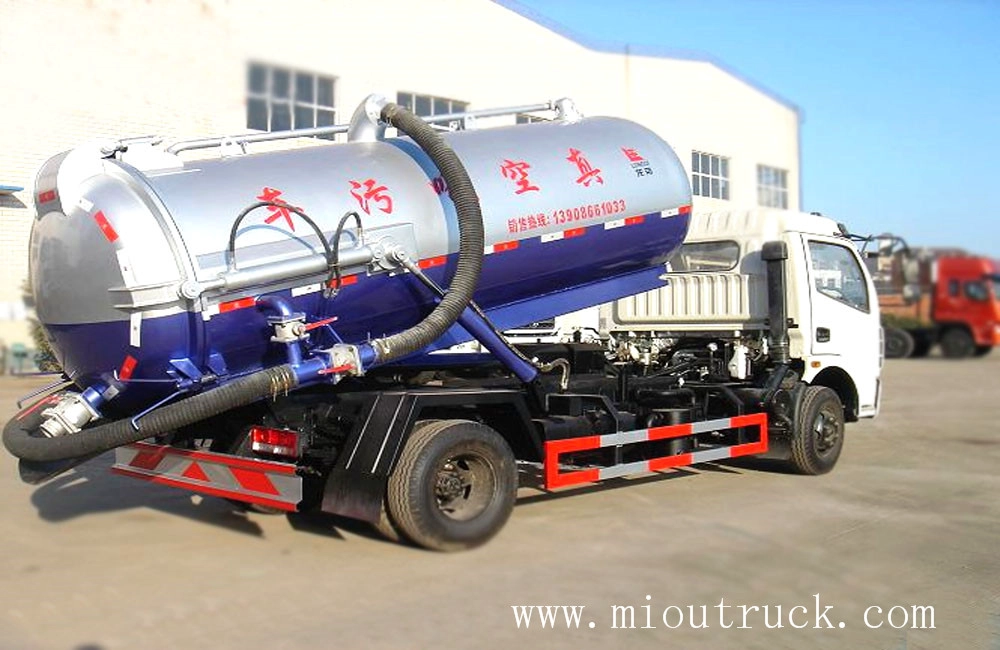

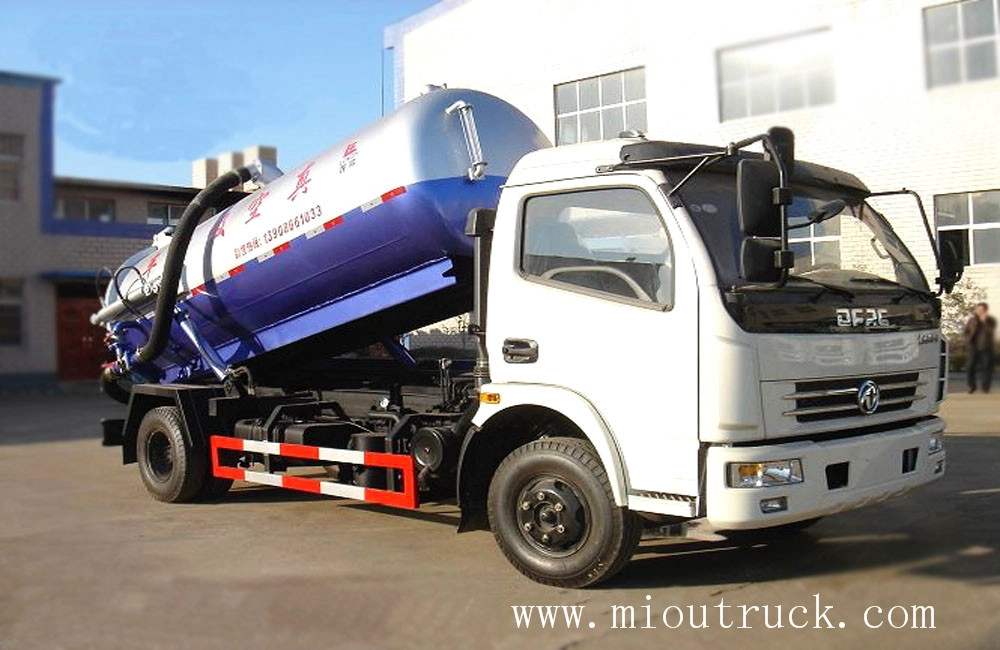

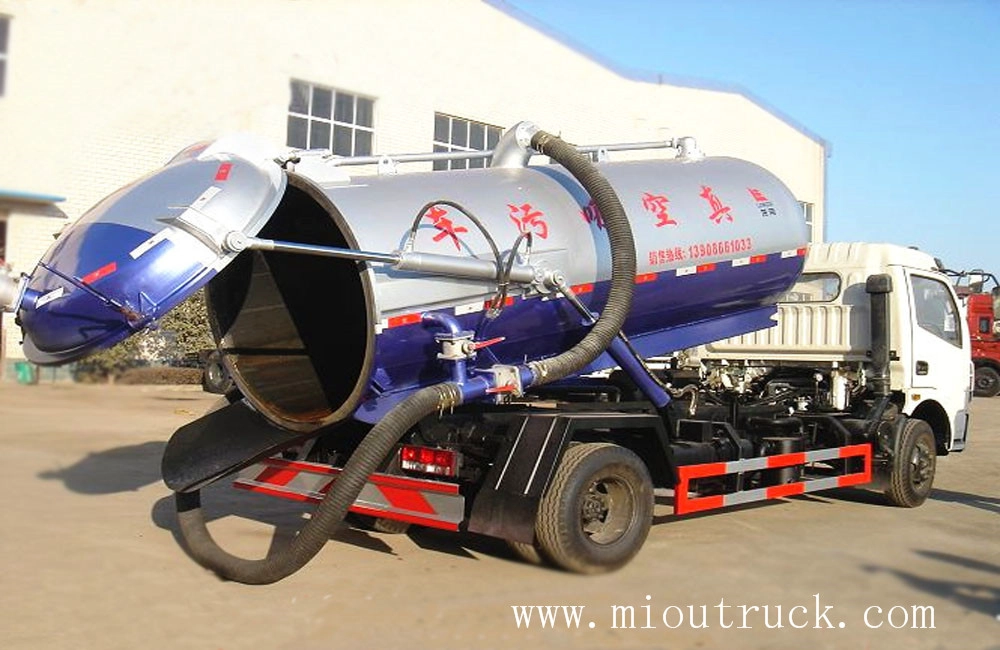

6CBM 4*2 4TON SEWAGE SUCTION TRUCK WITH 91KW POWER

  • 1.model number:CSC5082GXW4
  • 2.drive wheel:4*2
  • 3.rated load(Kg):4200
  • 4.size(mm):6700×2150×2800
  • 5.curb weight(Kg):3880
  • 6.cabin capacity:3
  • 7.approach/departure angle(°):24/15
  • 8.wheelbase(mm):3800

chassis model:DFA1080SJ12D3
manufacture:Dongfeng motor co., LTD
axle load(Kg):3310/4965
chassis size(mm):6815×2080×2440
engine:CY4102-CE4C

















【main parameter】
product name CSC5082GXW4sewage suction truck
G.V.W(Kg) 8275 drive wheel  4*2
rated load(Kg) 4200 size(mm) 6700*2150*2800
curb weight(Kg) 3880 cabin capacity 3
approach/departure
 angle(°)
24/15 F/Rsuspension
(mm)
1210/1690
axle No.s 2 wheelbase
(mm)
3800
axle load(Kg) 3310/4965 max speed
(Km/h)
99
chassis parameter
chassis model DFA1080SJ12D3 manufacture Dongfeng motor
 co., LTD
brand  dongfeng size(mm) 6815*2080*2440
tire specification 7.50R16 tire No.s 6
leaf spring 8/10+7 front wheel track
(mm)
1770
fuel type desiel rear wheel track
(mm)
1586
emission standard Euro4/national 4 gear box 5gears
engine manufacture dispalcement
(ml)
power(Kw)
CY4102-CE4C Dongfeng chaoyang
forward power co., LTD
3856 91
tanker
effictive volume 6 tanker material Q235carbon steel
filling time ≤5min effictive suction ≥8m

Brief Introduction:

 Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.

compnay display

factory display




Packing:  nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements

Delivery date: 15 days





Q:How about the warranty?

A:One year



Q:Do you have ISO certificate ?

A:Yes , we have,pls contact us to get our certifications.



Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.



Q:How about shipping ?

A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .



Q: How many trucks does your factory produce per years?

A:Almost 3000 units



Q: How do you control the quality of product?

A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.



Q: How about your product After-sales service system?

A:Our main export country have accepted after-sales service,some of country used the third department service.



Q: Do you accept Custom orders? What’s is your MOQ order?

A:Yes, we do, our MOQ is 1 set.



Q: What’s the payment terms?

A:By T/T or L/C at sight.



Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world,  such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.

We provide you sincerely serviceif you have interest,contact us now!





Remarks:

    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

    Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
