Home > Products > Carrier Vehicle > DongFeng 102hp stake truck tra.....
DongFeng 102hp stake truck trailerDongFeng 102hp stake truck trailerDongFeng 102hp stake truck trailer

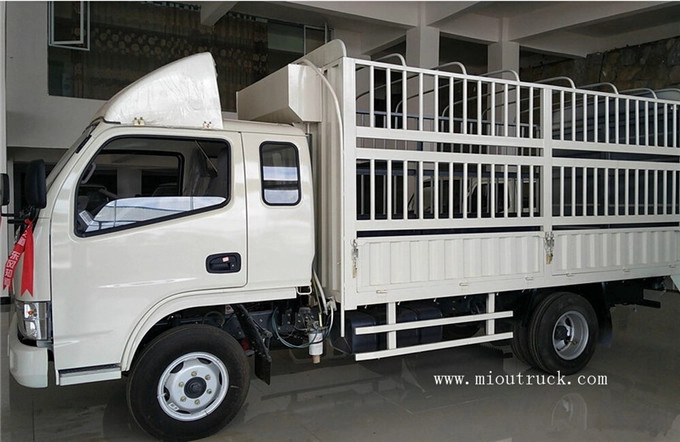

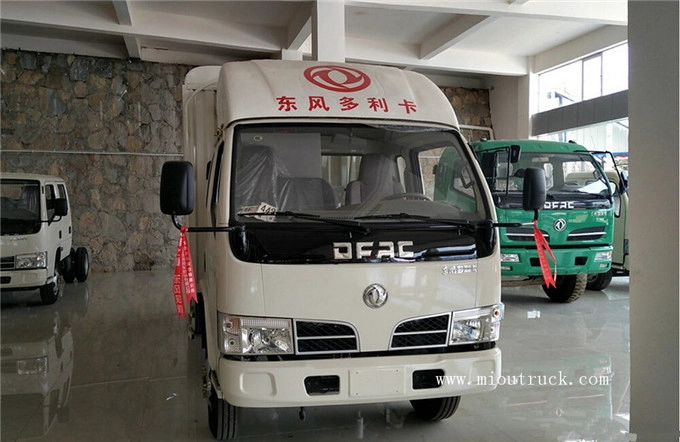

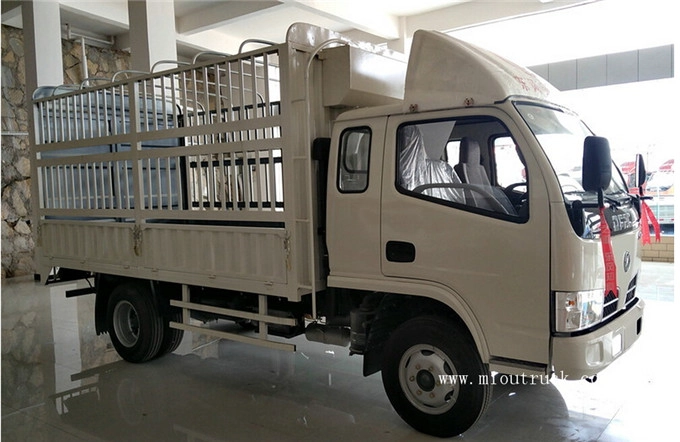

DongFeng 102hp stake truck trailer

  • 1.product brand:dongfeng
  • 2.model:DFA5041CCYL35D6AC
  • 3.feature:cargo truck
  • 4.emission standard: Euro 5
  • 5.driving type: 4* 2
  • 6.wheelbase:3300mm
  • 7.cargo body:5.995×1.98×2.99M

G.V.W :4.495 Ton
Displacement:2.545L
Spring :6/8+4
Tire specifications :7.00R16 12PR
Approach / departure angle :19/15(°)












Vehicle model DFA5041CCYL35D6AC
Drive model 4X2
Wheelbase 3300mm
Engine  SD4AW754U
Transmission WLY5A100
Rear axle ratio 5.833
Body (L x W x H) 5.995×1.98×2.99M
Front/Rear track 1506/1466mm
Vehicle weight 2.665T
Rated load 1.7T
Total weight 4.495T
Max speed  95KM/h
Approach / departure angle (°) 19/15
Front/Rear suspension(M) 1.032/1.663
Displacement 2.545L
Emission standards Euro 4
Max output power 75kw
Max horsepower 102 hp
Cargo box (L x W x H) 3.87×1.88×0.4 M
Transmission WLY5A100
Tire size 7.00R16 12PR
Number of tires 6 pcs
Fuel tank capacity 75L
Front axle allow load 1800KG
Front/rear axle (t) 1.8/3.5
Rear axle  load 2695KG
Rear axle ratio 5.833
Spring number 6/8+4





Brief Introduction:

 Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D, manufacture and sales of special purpose vehicles. We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.

Company display


Factory display




Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to their requirements

Delivery date: 15 days



Q: How about the warranty?

A: One year



Q: Do you have ISO certificate?

A: Yes, we have, pls contact us to get our certifications.



Q: How about the delivery time?

A: Most of our trucks are all have in stock, We can delivery to you within 15 Days, if specially ordered, we always need around 30 days for production.



Q: How about shipping?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container, Pls contact us to get a shipping quotation.



Q: How many trucks does your factory produce per years?

A: Almost 3000 Units



Q: How do you control the quality of product?

A: Our Factory is standard production workship, got ISO CCC BV Certification, our workers are well trained. Our very product under goes a scrutinizing inspection process.



Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service, some of country used the third department service.



Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is 1 set.



Q: What's the payment terms?

A: By T / T or L / C at sight.



Q: Which country do you have exported to?

A: Our special trucks can be found in many parts of the world, such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.


We provide you sincerely service, & Lt;If you have interest, contact us now!


Remarks:

    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

    Should you have any other information or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as follows:
