Home > Products > High altitude operation truck > Dongfeng 145 Series 4x2 Foldin.....
Dongfeng 145 Series 4x2 Folding Type Aerial Working Platform with Operational Height 22mDongfeng 145 Series 4x2 Folding Type Aerial Working Platform with Operational Height 22mDongfeng 145 Series 4x2 Folding Type Aerial Working Platform with Operational Height 22m

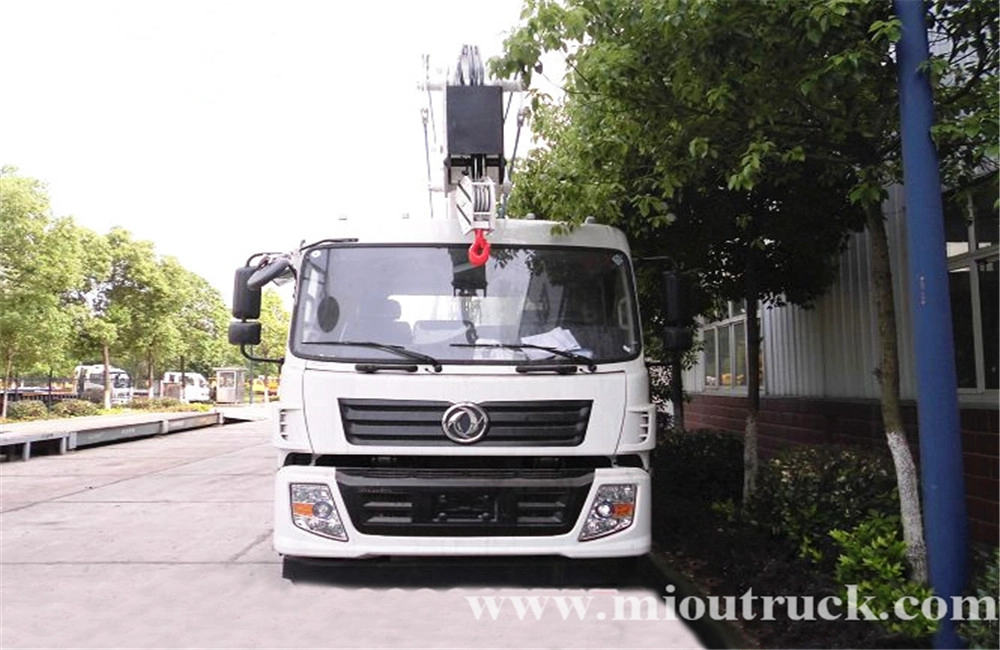

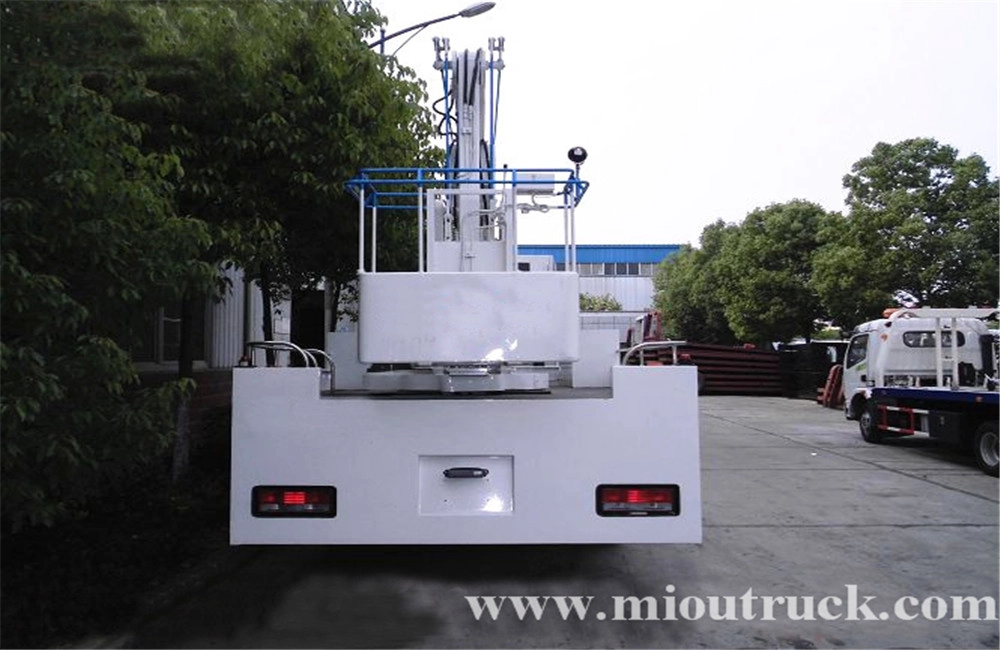

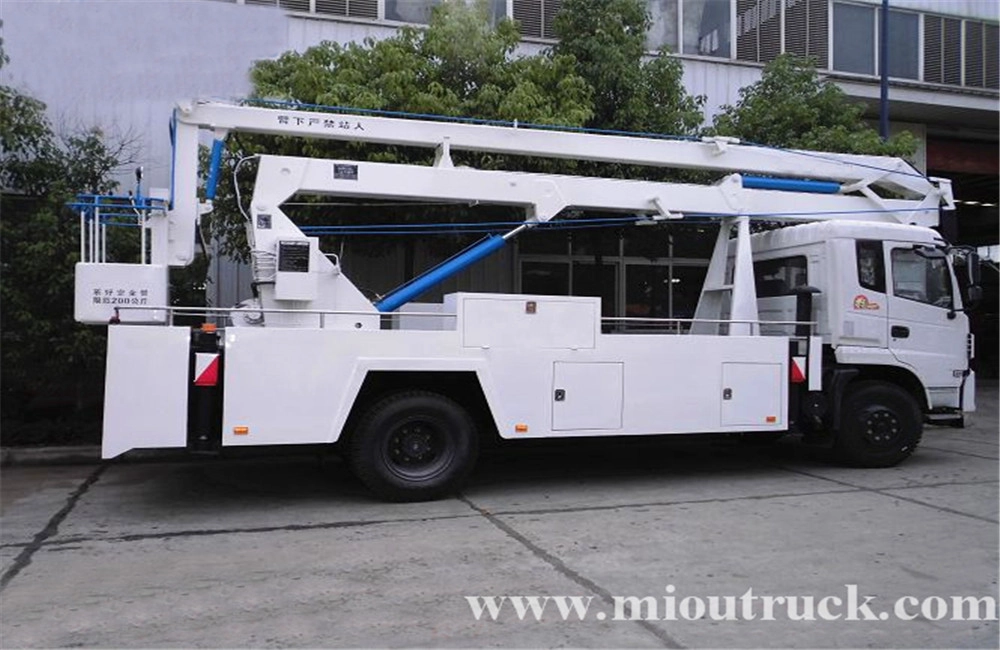

Dongfeng 145 Series 4x2 Folding Type Aerial Working Platform with Operational Height 22m

  • 1.Brand Name:Dongfeng
  • 2.Condition:New
  • 3.Feature:Aerial Working Platform
  • 4.Drive Wheel:4x2
  • 5.Power:125kw
  • 6.Fuel Type:Diesel
  • 7.Transmission Type:Manual
  • 8.Emission Standard:Euro 4

Brand Name:Dongfeng            Condition:New             Feature:Aerial Working Platform
Drive Wheel:4x2                Power:125kw                Fuel Type:Diesel
Transmission Type:Manual       Emission Standard:Euro 4





Item

Unit

Parameter

Product



JDF5110JGKD4 Aerial Working Platform

Chassis model



EQ1160GD4DJ



G.V.W

kg

10800

Curb weight

10605

Dimension

mm

9400×2495×3900

Wheelbase

4700

Engine



ISB170 40

Brand



Dongfeng Cummins

Emission standard



Euro 4

Exhaust /power

ml/kw

5900 / 125

Gear box



6 speed

Tire spec./quantity

pc

9.00R20/6

Max.speed

km/h

90

Max.height

m

22

Rated load

kg

200

Rated seats



2

Rotation Angle

degree

360

Leg type/quantity

pc

H type/4

Remark

Hydraulic operating form

Brief Introduction:

Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.

Company Display:


 Factory Display:





Packing:  nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements

Delivery date: 15 days



Q:How about the warranty?

A:One year



Q:Do you have ISO certificate ?

A:Yes , we have,pls contact us to get our certifications.



Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.



Q:How about shipping ?

A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .



Q: How many trucks does your factory produce per years?

A:Almost 3000 units



Q: How do you control the quality of product?

A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.



Q: How about your product After-sales service system?

A:Our main export country have accepted after-sales service,some of country used the third department service.



Q: Do you accept Custom orders? What’s is your MOQ order?

A:Yes, we do, our MOQ is 1 set.



Q: What’s the payment terms?

A:By T/T or L/C at sight.



Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world,  such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.

We provide you sincerely serviceif you have interest,contact us now!

Remarks:

    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

    Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
