Home > Products > Truck crane > Straight arm > Dongfeng Tianjin SYM5161JSQD 1.....

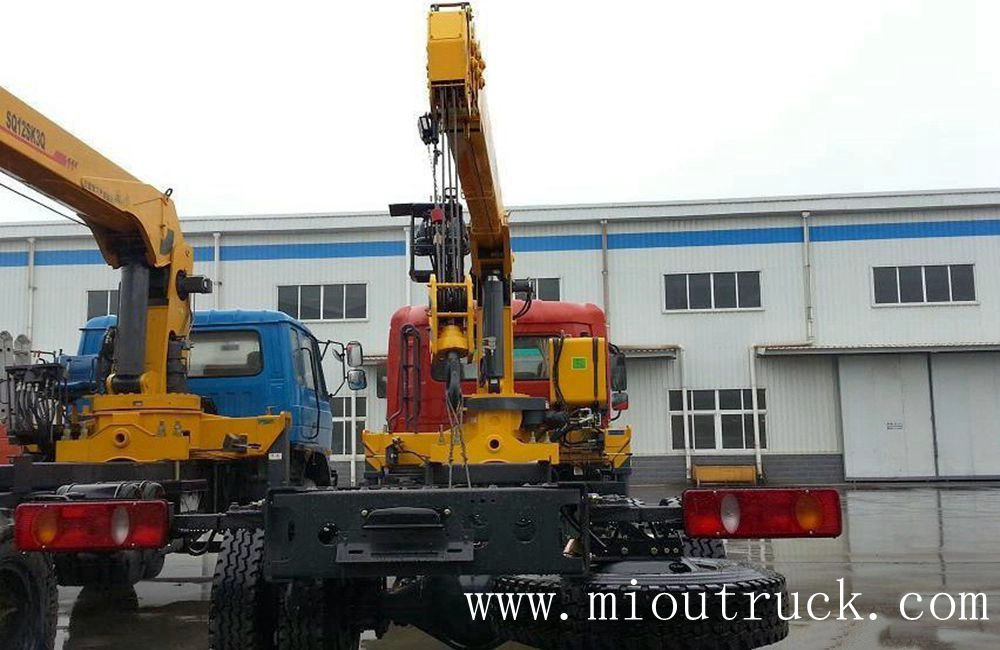

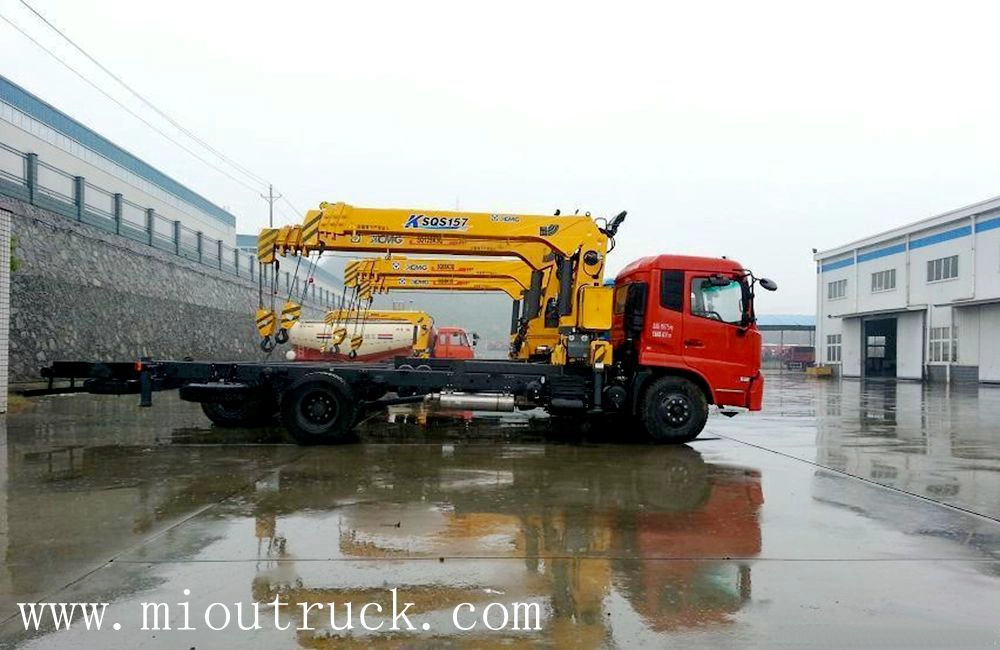

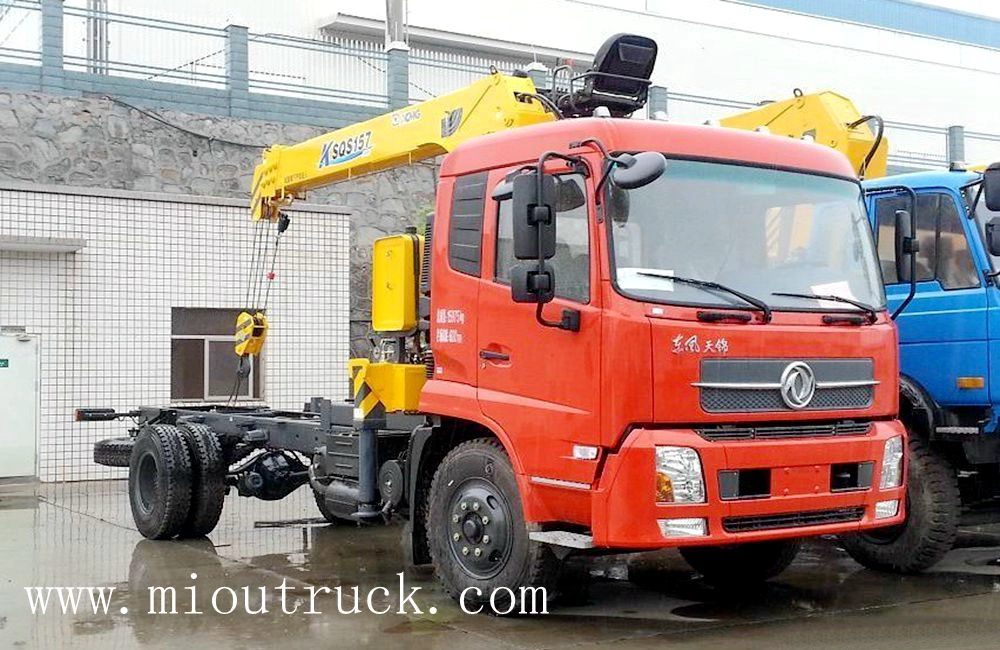

Dongfeng Tianjin SYM5161JSQD 190HP 4*2 Crane TruckDongfeng Tianjin SYM5161JSQD 190HP 4*2 Crane TruckDongfeng Tianjin SYM5161JSQD 190HP 4*2 Crane Truck

Dongfeng Tianjin SYM5161JSQD 190HP 4*2 Crane Truck

  • 1.model number:SYM5161JSQD
  • 2.drive type:4X2
  • 3.overall dimension:8950X2498X3325mm
  • 4.wheelbase:5000mm
  • 5.G.V.W:16T
  • 6.rated loading capacity:7.705T
  • 7.engine: Cummins B190 33E
  • 8.emission standard:Euro3
  • 9.chassis model:DFL1160BX

model number:SYM5161JSQD         drive type:4X2                 overall dimension:8950X2498X3325mm
wheelbase:5000mm                 G.V.W:16T                      rated loading capacity:7.705T
engine: Cummins B190 33E         emission standard:Euro3        chassis model:DFL1160BX








BASIC PARAMETER
model number DFL5160JSQBX5A
drive type 4X2
overall dimension 9000*2500*3500mm
wheelbase 5000mm
F/R wheel track 1880/1860mm
curb weight 10.875t
G.V.W 16T
rated loading capacity 6.895T
f/R Suspension 1430/2570mm
lifting weight 6.3t
crane model SQ114
crane weight 2.91t
place of origin Hubei China(mainland)
ENGINE
engine Dongfeng Cummins ISB180 40
displacement 5.9L
max output 132KW
emission standard Euro4
fuel type desiel
max horse power 180
CHASISS
chassis series Dongfeng Tianjin
chassis model DFL1160BX5
leaf spring 8/10+8
tire specification 9.00R20
number  of tires 6



Brief Introduction:

 Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.



Company Display:




Factory display




Packing:  nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements

Delivery date: 15 days





Q:How about the warranty?

A:One year



Q:Do you have ISO certificate ?

A:Yes , we have,pls contact us to get our certifications.



Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.



Q:How about shipping ?

A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .



Q: How many trucks does your factory produce per years?

A:Almost 3000 units



Q: How do you control the quality of product?

A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.



Q: How about your product After-sales service system?

A:Our main export country have accepted after-sales service,some of country used the third department service.



Q: Do you accept Custom orders? What’s is your MOQ order?

A:Yes, we do, our MOQ is 1 set.



Q: What’s the payment terms?




A:By T/T or L/C at sight.



Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world,  such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.


We provide you sincerely serviceif you have interest,contact us now!





Remarks:

    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

    Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:





Hubei Miou Special Automobile Technology Co.,Ltd

Tel:86-18772815090

Contact Person:Milla
