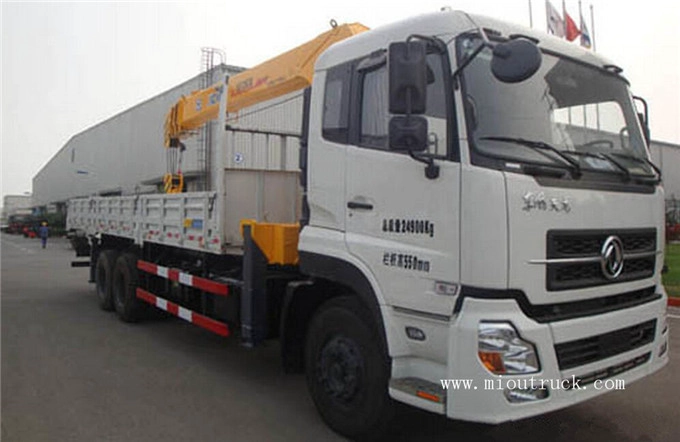

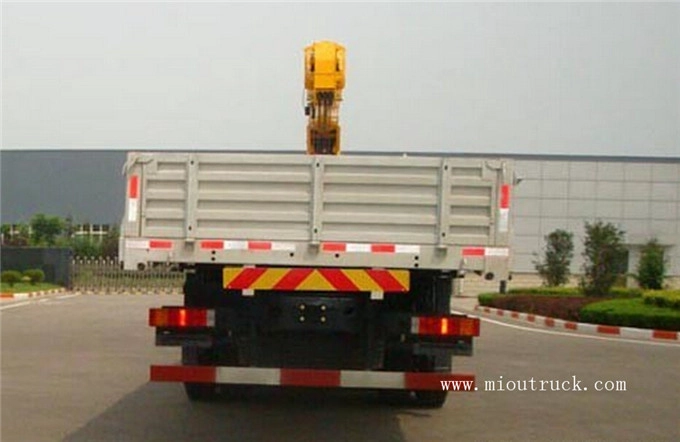

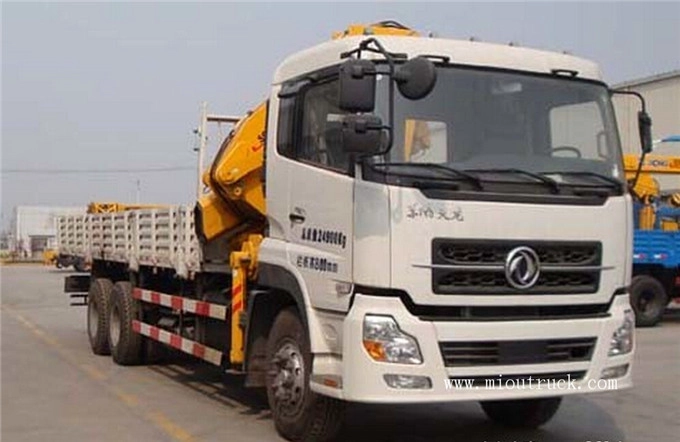

Dongfeng Tianlong 260 hp 6X4 truck craneDongfeng Tianlong 260 hp 6X4 truck craneDongfeng Tianlong 260 hp 6X4 truck crane

Dongfeng Tianlong 260 hp 6X4 truck crane

  • 1.product :Dongfeng straight arm truck crane
  • 2.model number:XZJ5254JSQ
  • 3.wheelbase:5350+1300mm
  • type:4*2
  • 5.engine:C260 33
  • 6.displacement:8300ml
  • 7.max power:191kw
  • 8.max horse power:260hp

emission standard:Euro3
gear box:8JS85E
tire specification:11.00R20
tire No.s:10

Engine  Dongfeng Cummins C260 33
Displacement 8.3L
Max output power 191kW
Max horsepower 260 hp
Gearbox Fast 8JS85E
Number of gears 8 gears
Chassis model DFL1250A9
Rear axle description 5T / 10T
Number of springs 8/9
Front / rear track 1986,2040/1860/1860mm
Number of tires 10
Tire specifications  11.00R20
Drive model 6X4
Wheelbase 5350 + 1300 mm
Body dimensions 10.96 x 2.5 x 3.8 M
Total weight  24.9 tons
Rated weight 9.125 tons
Front / rear overhang 1.46 / 2.85 M
Vehicle model XZJ5254JSQ
Crane type SQ12S
Lifting weight 12 tons
Crane weight 4.6 tons

Brief Introduction:

 Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.

company display

factory display

Packing:  nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements

Delivery date: 15 days

Q:How about the warranty?

A:One year


Q:Do you have ISO certificate ?

A:Yes , we have,pls contact us to get our certifications.


Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.


Q:How about shipping ?

A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .


Q: How many trucks does your factory produce per years?

A:Almost 3000 units


Q: How do you control the quality of product?

A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.


Q: How about your product After-sales service system?

A:Our main export country have accepted after-sales service,some of country used the third department service.


Q: Do you accept Custom orders? What’s is your MOQ order?

A:Yes, we do, our MOQ is 1 set.


Q: What’s the payment terms?

A:By T/T or L/C at sight.


Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world,  such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.

We provide you sincerely serviceif you have interest,contact us now!




    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

    Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
