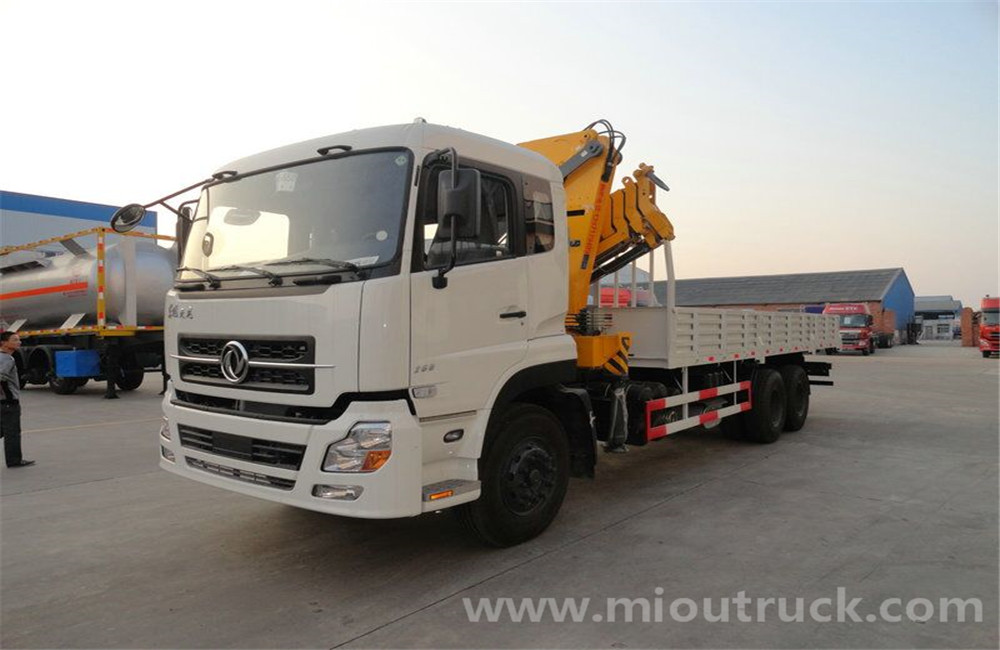

Dongfeng king-land crane truck 6x4 truck with crane mounted crane price for sale
- 1.Feature: Truck Crane
- 2.Condition: New
- 3.Rated Loading Capacity: 8065
- 4.Rated Lifting Moment: 25
- 5.Max. Lifting Load: 10000
- 6.Max. Lifting Height: 12
- 7.Place of Origin: Hubei, China (Mainland)
- 8.Brand Name: dongfeng
Quick Details
| Feature: | Condition: | Emission standard： | |||
| Rated Loading Capacity: | Rated Lifting Moment: | Max. Lifting Load: | |||
| Max. Lifting Height: | Place of Origin: | Brand Name: |
| Load Parameters | ||
| G. V. W. (kg) | 27000 | |
| Curb weight, toal (kg) | 11700 | |
| Loading capacity (kg) | 15000 | |
| Drive form | 6X4 | |
| Max. speed KM/h | 90 | |
| Appr/Dep.:(°) | 11/20 | |
| Dimission Parameters | ||
| Dimension(mm) (L*W*H) | 11900×2500×3700 | |
| Wheel base(mm) | 5850+1300mm | |
| Frame section(mm) | 300×80×[8+4] | |
| Configuration | ||
| Engine | Brand&Model | Cummins B210 33/ 210HP |
| Max. power | 155KW/2500rpm | |
| Max.output torque | 700N.m/1500rpm | |
| Displacment(ml) | 5900 | |
| Combustion types | Disel | |
| Emission standard | EURO 3 | |
| Crane | ||
| Crane Brand /model | XCMG-SQ14ZK4Q | |
| Max Lifting Moment | T.M | 35 |
| Max Lifting Capacity | KG | 14000 |
| Max lifting height | m | 12 |
| Rotation angle | ° | 360 |
| Installation space | mm | 1240 |
| Recommented power | kw | 28 |
| Maximum working pressure | Mpa | 31.5 |
| Max Flow | l/min | 63 |
| Crane weight | kg | 4468 |
| Tank volume | L | 160 |
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 15 days
Delivery date: 15 days
We provide you sincerely service，if you have interest,contact us now!
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
