Home > Products > Special Vehicle > Heavy duty 3 axles semi-trail.....
Heavy duty  3 axles semi-trailer/head truck trailerHeavy duty  3 axles semi-trailer/head truck trailerHeavy duty  3 axles semi-trailer/head truck trailerHeavy duty  3 axles semi-trailer/head truck trailer

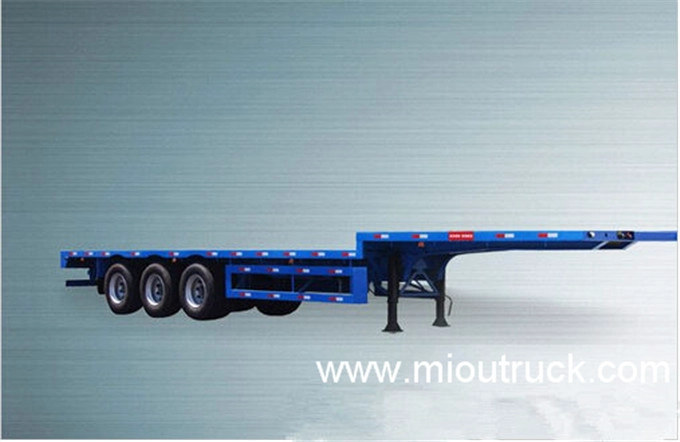

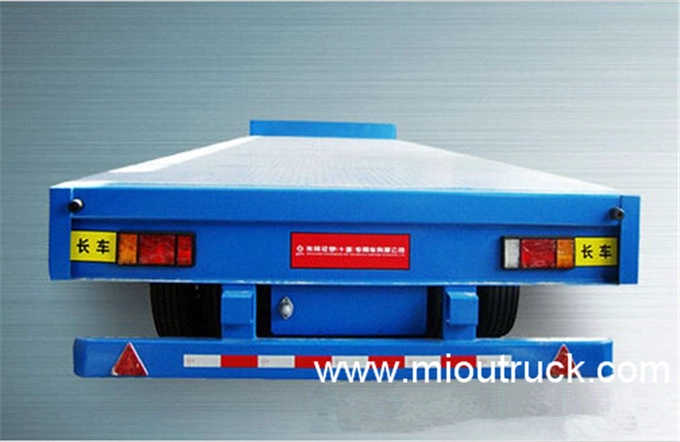

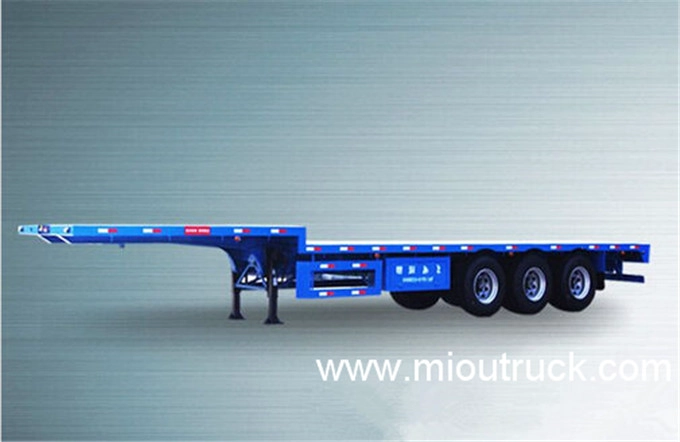

Heavy duty 3 axles semi-trailer/head truck trailer

  • 1.product :Semi-trailer
  • 2.model number:EQ9400TPBL
  • 3.wheelbase:6830+1310+1310,6530+1310+1310
  • type:4*2
  • 5.Total mass (Kg)40000
  • 6.Rear track:1840/1840/1840
  • 7.Tire specifications:11.00R20 12PR,11.00-20 12PR,12R22.5 12PR
  • 8.Curb mass (kg):7500

emission standard:Euro4
tire specification:11.00R20 12PR,11.00-20 12PR,12R22.5 12PR

Vehicle type EQ9400TPBL
Overall Size (L / W / H) 13000×2500×1530,3030
Total mass (Kg) 40000
Curb mass (kg) 7500
Approach / departure angle -/12
Wheelbase (mm) 6830+1310+1310,6530+1310+1310
Number of axes 3
Number of tires 12
Rated load mass (kg) 32500
Front / rear overhang -/2450
Axle load -/24000
Number of springs -/4/4/4,-/7/7/7,-/8/8/8,-/10/10/10
Tire specifications 11.00R20 12PR,11.00-20 12PR,12R22.5 12PR
Rear track 1840/1840/1840

Brief Introduction:

 Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.

company display

factory display

Packing:  nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements

Delivery date: 15 days

Q:How about the warranty?

A:One year


Q:Do you have ISO certificate ?

A:Yes , we have,pls contact us to get our certifications.


Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.


Q:How about shipping ?

A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .


Q: How many trucks does your factory produce per years?

A:Almost 3000 units


Q: How do you control the quality of product?

A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.


Q: How about your product After-sales service system?

A:Our main export country have accepted after-sales service,some of country used the third department service.


Q: Do you accept Custom orders? What’s is your MOQ order?

A:Yes, we do, our MOQ is 1 set.


Q: What’s the payment terms?

A:By T/T or L/C at sight.


Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world,  such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.

We provide you sincerely serviceif you have interest,contact us now!




    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

    Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
