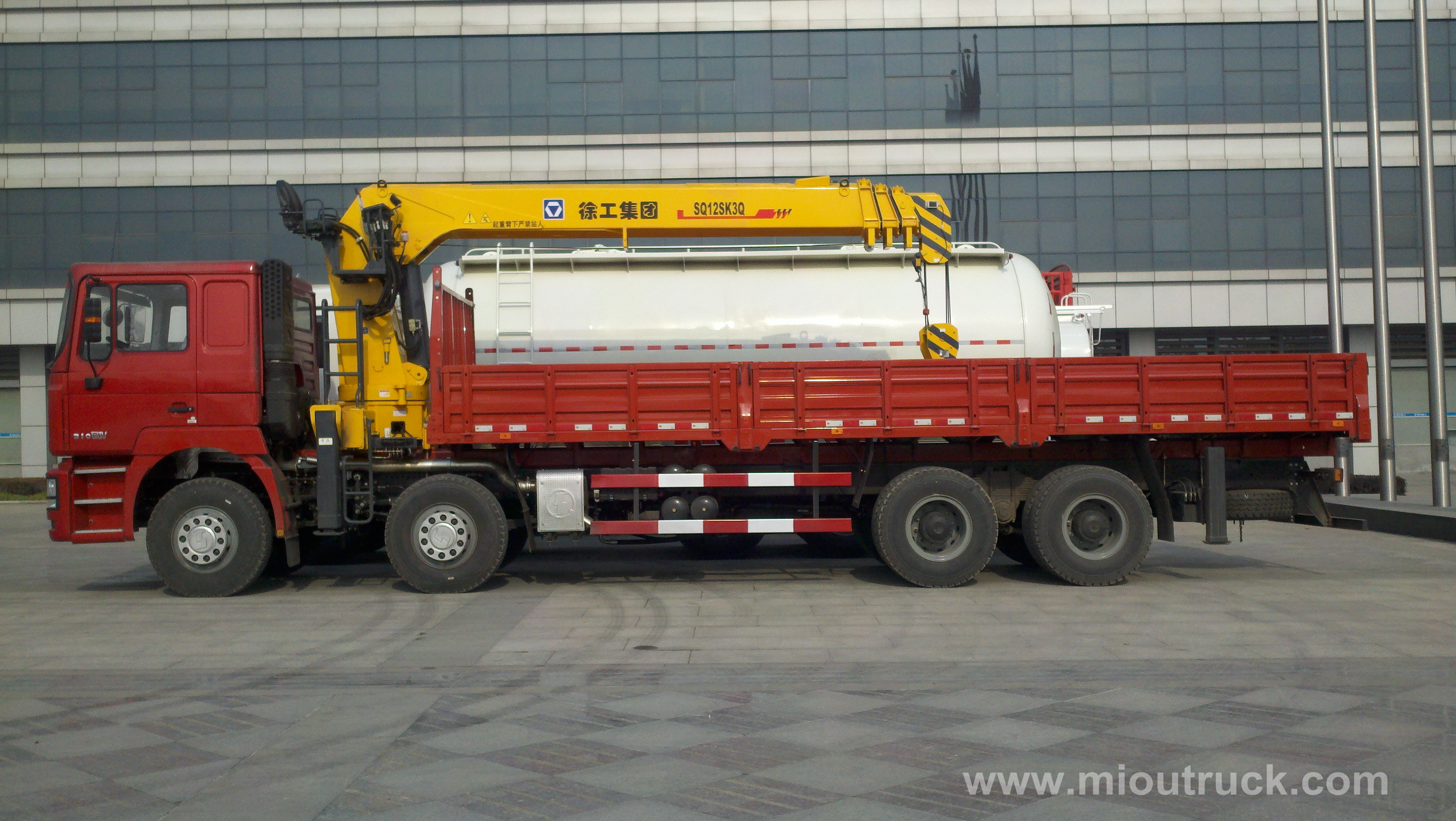

Shacman 8x4 srtaight arm cargo truck mounted crane china supplier for sale
- 1.Condition:New
- 2.Drive Wheel:8x4
- 3.Fuel Type:Diesel
- 4.Max Speed:90km/h
- 5.Feature:Truck Crane
- 6.Brand Name:SHACMAN
QUICK DATAILE:
Condition:New Fuel Type:Diesel Chassis code: BJ1310
Drive Wheel:8x4 Max Speed:90km/h GVW (kg): 31000
Brand Name:SHACMAN Feature:Truck Crane Engine Power(HP): 336hp
| Vehicle model | Shacman 8x4 staight arm cargo truck mounted crane | ||
| Model code | Foton trcuk crane | Chassis code | BJ1310 |
| Traction system | 8*4 | Number of axles | 4 |
| GVW (kg) | 31000 | Mass in working order(kg) | 16500 |
| Overall dimensions (mm) | 11990*2500*3720 | Cargo body dimensions( mm) | 8200*2300*800 |
| Performance & DIMENSION | |||
| Wheel base | 1800+4600+1350mm | Max speed(km/h) | 90 |
| Allowable passengers in cab | 3 | Electric system | 24Volts |
| Approach/departure angle | 9月16日 | F/R track base | 2022/1830 |
| Operation system | Electrically hydraulic control | ||
| Axles design | Front: HF6 6tons*2 Rear: HC 18 18tons*2 | ||
| Fuel tank capacity(L) | 300L WITH LOCK AND PROTECTION GUARD | ||
| ENGINE | |||
| Engine MODEL | WD615.95E | ||
| Engine Power(HP) | 336 | ||
| EMISSION STANDARD | Euro III | ||
| Max Torque | 1350N.m(at 1100- 1600r/min) | ||
| Displacement | 9.726L | ||
| Engine type | Sinotruk engine,6 cylinders, turbo charged ,intercooler | ||
| TRANSMISSION | HW15710 10– speed front gears and 2 reverse gears | ||
| Steering | ZF8098 | ||
| CLUTCH | Single plate dry diaphragm spring clutch, hydraulically with air assist | ||
| TIRES | 10.00-20 | ||
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Packaging Details:nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery Detail:7-10 days after getting your deposite
We provide you sincerely service，if you have interest,contact us now!
REMARKS:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
