Casa > Produtos > Caminhão guindaste > braço reto > XCMG dongfeng EQ5250JSQZM1 Eur.....
XCMG dongfeng EQ5250JSQZM1 Euro4 6*2  truck crane for saleXCMG dongfeng EQ5250JSQZM1 Euro4 6*2  truck crane for saleXCMG dongfeng EQ5250JSQZM1 Euro4 6*2  truck crane for sale

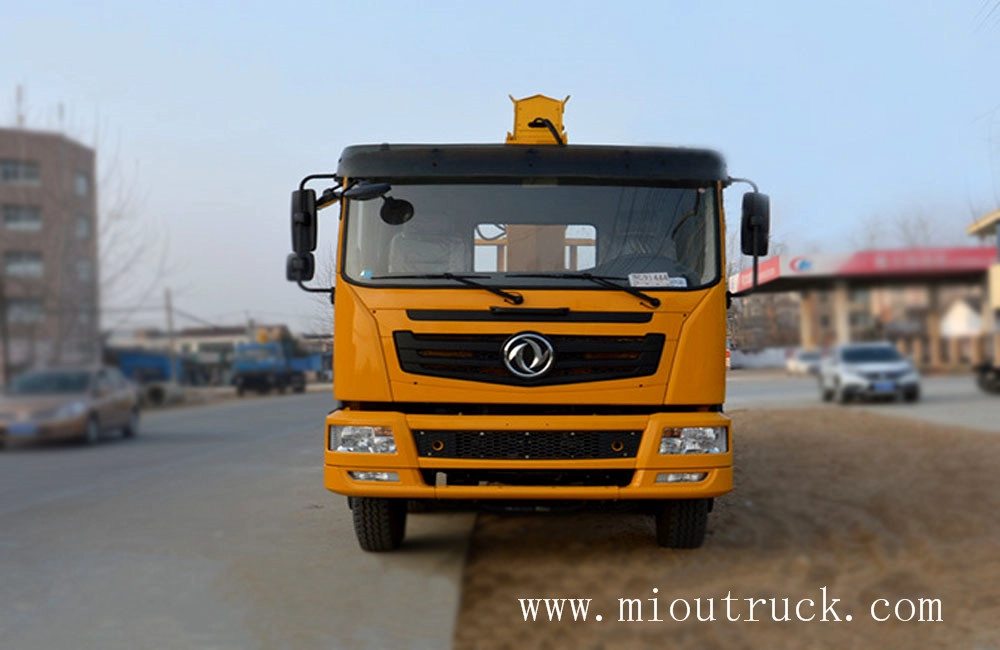

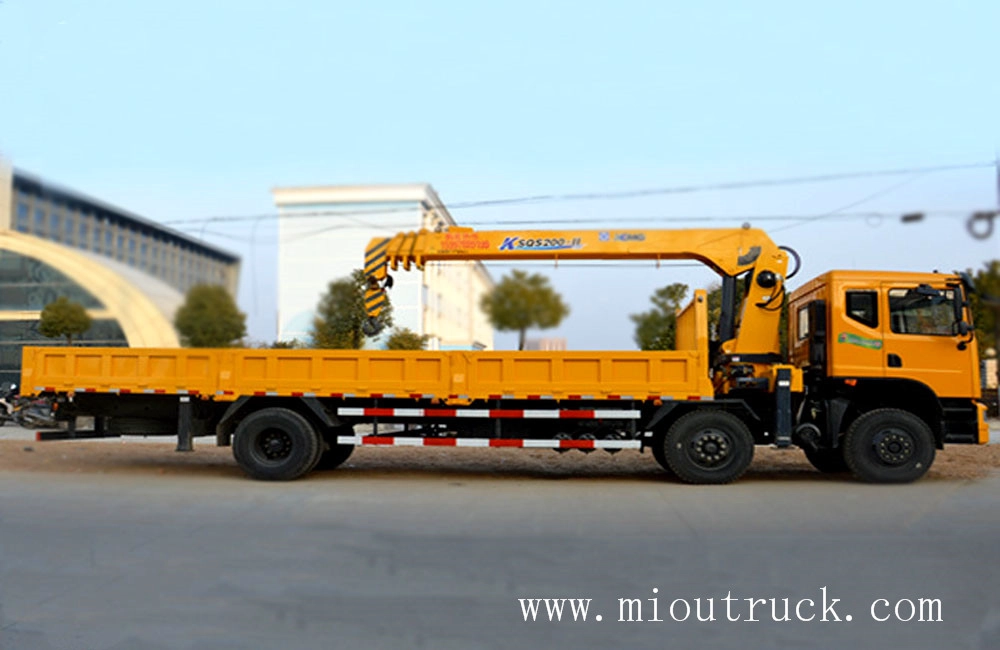

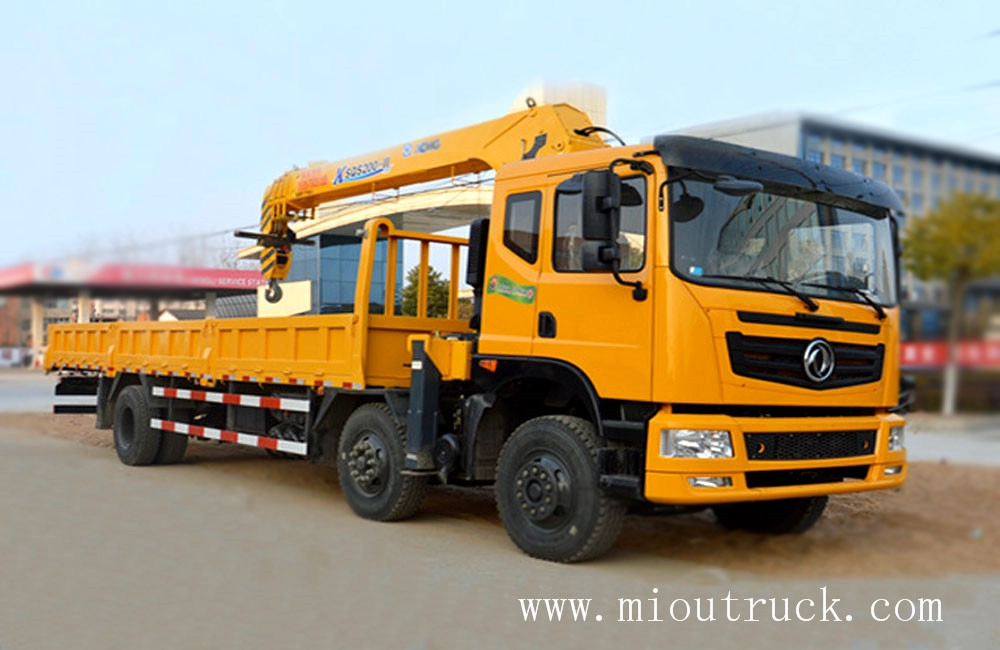

XCMG dongfeng EQ5250JSQZM1 Euro4 6*2 truck crane for sale

  • 1.model numder:EQ5250JSQZM1
  • wheel : 6*2
  • 3.G.V.W(Kg):25000
  • 4.rated load(Kg):12055 ,11555
  • 5.overall dimension(mm):11200×2490×3950
  • 6.curb weight(Kg):12750 , 13250
  • 7.cargo body inner size(mm):7500×2300×800
  • 8.wheel base(mm):1950+5000
  • 9.chassis model:EQ1250GZ4DJ
1.model numder:EQ5250JSQZM1 wheel : 6*2
4.rated load(Kg):12055 ,11555
5.overall dimension(mm):11200×2490×3950
6.curb weight(Kg):12750 , 13250
7.cargo body inner size(mm):7500×2300×800
8.wheel base(mm):1950+5000
9.chassis model:EQ1250GZ4DJ

model number EQ5250JSQZM1truck crane
drive wheel 6x2
G.V.W(Kg) 25000 passenger(person) 3
ratedload(Kg) 12055 11555 overall dimension
curb weight(Kg) 12750 , 13250 cargo body inner size
29/18 F/R suspension
axle No.s 3 wheel base(mm) 1950+5000
axle load(Kg) 7000/7000/11000 max speed(Km/h) 90
chassis paremeter
chassis model EQ1250GZ4DJ chassis brand dongfeng
manufacture Dongfeng Commercial Vehicle
Co., Ltd.
tire  No.s 8
29/28 tire specification 10.00R20
leaf spring 9/9/10+8 front wheel track(mm) 1940/1940
fuel type desiel rear wheel track(mm) 1860
emission standard

Euro 4 gear box 8 gear (8JS150J
cabin D701 luxurious interior suspended cab, with sleeper,
 optional air conditioning
engine model manufacture displacement(ml) power(Kw)
ISB190 40 Dongfeng Cummins Engine Co., Ltd 5900 140
YC6J200-42 Guangxi Yuchai Machinery Limited
by Share Ltd
6494 147
crane parameter
crane model SQS200,SQS250 crane brand XCMG
type straiight arm crane weightkg) 33,003,800
max lifting weightkg) 800,010,000 max lifting heightm 13.5,14
max working radius(m) 11.5,12 operation type On/under operation
sweep No.spart 4 landing leg No.s 2月4日
The vehicle consists of truck chassis, cargo compartment, crane, through
 the hydraulic lifting and telescopic system to achieve cargo lifting, rotating, lifting.
In general, the car uses H type landing leg to achieve its stability, according to customer requirements, optional rear legs to enhance its stability.
The vehicle can be 360 degrees continuous rotation

Brief Introduction:

 Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.

company display

factory display

Packing:  nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements

Delivery date: 15 days

Q:How about the warranty?

A:One year


Q:Do you have ISO certificate ?

A:Yes , we have,pls contact us to get our certifications.


Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.


Q:How about shipping ?

A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .


Q: How many trucks does your factory produce per years?

A:Almost 3000 units


Q: How do you control the quality of product?

A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.


Q: How about your product After-sales service system?

A:Our main export country have accepted after-sales service,some of country used the third department service.


Q: Do you accept Custom orders? What’s is your MOQ order?

A:Yes, we do, our MOQ is 1 set.


Q: What’s the payment terms?

A:By T/T or L/C at sight.


Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world,  such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.

We provide you sincerely serviceif you have interest,contact us now!




    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
