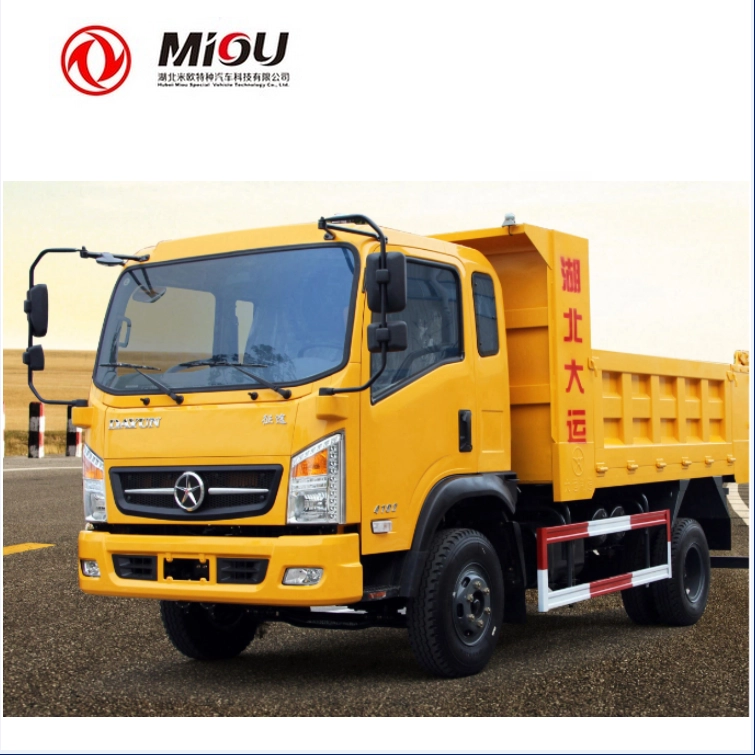

DAYUN mining dump truck diesel dump truck for sale in dubai

DAYUN mining dump truck diesel dump truck for sale in dubai

  • 1.Model Number:3H013
  • 2.Dimensions (L x W x H) (mm):5710*2026*2585
  • 3.Product name:mining dump truck
  • 4.Number of axles:2
  • 5.Front axle capacity (KG):10000
  • 6.Statutory Load Weight(kg):8000
  • 7.Max. horsepower:116hp
  • 8.Fuel tank capacity:160L
  • 9.torque:320N.m
  • 10.other name:dump truck for sale in dubai
  • 11.mini dumper Type:mining dump truck for sale

Engine Model: 4102QBZL,in-line,4 cylinder,Turbo,Intercooier
Statuory Power(Kw/rpm) : 85KW(116hp)/3000r/Min
Max Torque(N.m/rpm):320N.m/1800-2100rpm
Exhause Emission Standard :EURO2
Displacement: 3.76
Clutch:390mm(Single,dry type,diaphragm springs clutch)
Steering:Hydraulically power
Front Axle:140Bridge,Drum break,2.9Tons
Rear Axle:145 bridge,8.5Tons, Main reduction ratio6.33,Single reduction








Model   3H013
SIZE L×W×H(no-load) 5710×2026×2585
Wheelbase 3400
Cargo Box 4000×2100×800/800+200
Front/rear wheel track 1730/1700
Front/rear Suspensionmm 1260/1460
Frame 800×232×(7+4)
WEIGHT Total weightkg 10000
Curb Weightkg 4380
Statutory Load Weightkg 8000
Max Total Weightkg 16000
seats 3
PERFORMANCE Max speed≥(km/h) 75
Max climbling≥(%) 25
Min Turn diameter≤m 13
Mini Ground Clearancemm 180
Approaching angle° 22/30
  TECHNOLOGY DATA STANDARD
ENGINE Engine Model 4102QBZL,in-line,4 cylinder,Turbo,Intercooier
Statuory PowerKw/rpm 85KW(116hp)/3000r/Min
Max TorqueN.m/rpm 320N.m/1800-2100rpm
Exhause Emission Standard EURO2
Displacement 3.76
CHASSIS Transsion Wanliyang 10H46manual 5 speeds
Gear ratio Low speed 12.796,7.544,4.282,2.686,1.75,Reverse gear 7.20
Clutch 390mm(Single,dry type,diaphragm springs clutch)
Steering Hydraulically power
Front Axle 140Bridge,Drum break,2.9Tons
Rear Axle 145 bridge,8.5Tons, Main reduction ratio6.33,Single reduction
Front/rear Suspension Front: Portrail positioned parabolic steel plate springs
Rear: Portrail positioned parabolic steel plate springs
Brake System Compressed air front/rear drum brake, Diaphragm spring brake chamber.
Exhaust brake ,parking braking
Transsion Shaft Nonconstant velocity universal joint
Tires 8.25R20,6 tires with 1 spare tires
Fuel Tank(L) 160L
Electrical Power System 24V, single line, Negative electrode,140Amp/h
other
TRUCK BODY Cab D912 Flat cab,Narrow type power-driven control glass
manual rearview mirror,w/o sunshade
Air Conditioner Cool & Heater, manual control
Interior Decoration  One time molding,made from polymer based composite
 high strength UV proteclion, nontoxic, aseptic, flame retardant
Driver seat +passenger seat 1+2
Sleeper single






Brief Introduction:

 Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D, manufacture and sales of special purpose vehicles. We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.

Company display


Factory display




Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to their requirements

Delivery date: 15 days



Q: How about the warranty?

A: One year



Q: Do you have ISO certificate?

A: Yes, we have, pls contact us to get our certifications.



Q: How about the delivery time?

A: Most of our trucks are all have in stock, We can delivery to you within 15 Days, if specially ordered, we always need around 30 days for production.



Q: How about shipping?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container, Pls contact us to get a shipping quotation.



Q: How many trucks does your factory produce per years?

A: Almost 3000 Units



Q: How do you control the quality of product?

A: Our Factory is standard production workship, got ISO CCC BV Certification, our workers are well trained. Our very product under goes a scrutinizing inspection process.



Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service, some of country used the third department service.



Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is 1 set.



Q: What's the payment terms?

A: By T / T or L / C at sight.



Q: Which country do you have exported to?

A: Our special trucks can be found in many parts of the world, such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.


We provide you sincerely service, & Lt;If you have interest, contact us now!


Remarks:

    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
