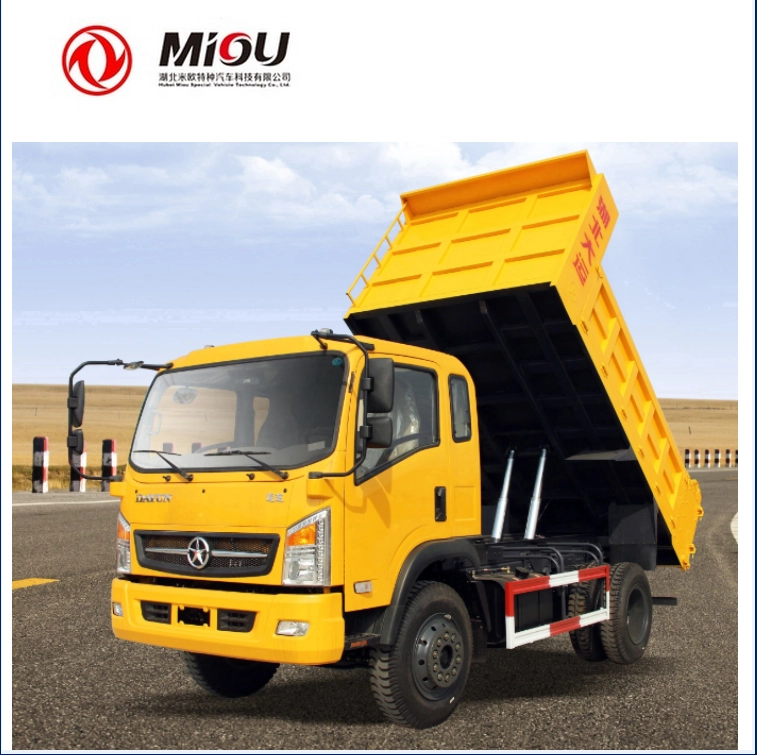

Dayun dump truck for construct diesel 10 cubic meter dump truck capacity for sale

Dayun dump truck for construct diesel 10 cubic meter dump truck capacity for sale

  • 1.Drive Wheel:4x2
  • 2.Capacity (Load):1 - 10t
  • 3.Horsepower:150 - 250hp
  • 4.Condition:New
  • 5.Transmission Type:Manual
  • 6.Emission Standard:Euro 2
  • 7.Fuel Type:Diesel
  • 8.Engine Capacity:4 - 6L
  • 9.Gross Vehicle Weight:16000
  • 10.Brand Name:DAYUN
  • 11.Model Number:T49
  • 12.Dimensions (L x W x H) (mm):5990*2350*2900
  • 13.Product name:trucks prices dump
  • 14.Engine:YC4D130-33

Gross Vehicle Weight:16000
Brand Name:DAYUN
Model Number:T49
Dimensions (L x W x H) (mm):5990*2350*2900
Product name:trucks prices dump

Model   T49
SIZE L×W×H(no-load) 5990×2350×2900
Wheelbase 3400
Cargo Box 4000×2200×800+200
Front/rear wheel track 1740/1640
Front/rear Suspensionmm 1300/2295
Frame 800×250×8+5
WEIGHT Total weightkg 16000
Curb Weightkg 6500
Statutory Load Weightkg 9500
Max Total Weightkg 15000
seats 3
PERFORMANCE Max speed≥(km/h) 85
Max climbling≥(%) 25
Min Turn diameter≤m 12
Mini Ground Clearancemm 240
Approaching angle° 22/17
ENGINE Engine Model YC4D130-33,in-line,4 cylinder,Turbo,Intercooier
Statuory PowerKw/rpm 96KW(130hp)/2800r/Min
Max TorqueN.m/rpm 520N.m/1300-1700rpm
Exhause Emission Standard EURO2
Displacement 4.214
CHASSIS Transsion Wanliyang 653manual 6 speeds
Gear ratio Low speed 12.66,7.252,4.738,3.139,2.218,1.44,Reverse gear 11.78
Clutch 430mm(Single,dry type,diaphragm springs clutch)
Steering Hydraulically power
Front Axle 1094 bridge, Drum break,3.6Tons
Rear Axle 153 bridge,10tons, Main reduction ratio 6.833Single reduction
Front/rear Suspension Front: Portrail positioned parabolic steel plate springs
Rear: Portrail positioned parabolic steel plate springs
Brake System Compressed air front/rear drum brake, Diaphragm spring brake chamber.
Exhaust brake ,parking braking
Transsion Shaft Nonconstant velocity universal joint
Tires 9.00R20,6 tires with 1 spare tires
Fuel Tank(L) 200L
Electrical Power System 24V, single line, Negative electrode,140Amp/h
TRUCK BODY Cab Flat Semi-high roof cab, power-driven control glass
manual rearview mirror,airbag seat, with sunshade
Air Conditioner Cool & Heater, manual control
Interior Decoration  One time molding,made from polymer based composite
 high strength UV proteclion, nontoxic, aseptic, flame retardant
Driver seat +passenger seat 1+2
Sleeper single

Brief Introduction:

 Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D, manufacture and sales of special purpose vehicles. We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.

Company display

Factory display

Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to their requirements

Delivery date: 15 days

Q: How about the warranty?

A: One year


Q: Do you have ISO certificate?

A: Yes, we have, pls contact us to get our certifications.


Q: How about the delivery time?

A: Most of our trucks are all have in stock, We can delivery to you within 15 Days, if specially ordered, we always need around 30 days for production.


Q: How about shipping?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container, Pls contact us to get a shipping quotation.


Q: How many trucks does your factory produce per years?

A: Almost 3000 Units


Q: How do you control the quality of product?

A: Our Factory is standard production workship, got ISO CCC BV Certification, our workers are well trained. Our very product under goes a scrutinizing inspection process.


Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service, some of country used the third department service.


Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is 1 set.


Q: What's the payment terms?

A: By T / T or L / C at sight.


Q: Which country do you have exported to?

A: Our special trucks can be found in many parts of the world, such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.

We provide you sincerely service, & Lt;If you have interest, contact us now!


    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
