Home > Products > Tractor truck > DFCV Tianlong DFL4251A15 450HP.....
DFCV Tianlong DFL4251A15 450HP 6*4 Heavy duty tractor truck(485 rear axle)DFCV Tianlong DFL4251A15 450HP 6*4 Heavy duty tractor truck(485 rear axle)DFCV Tianlong DFL4251A15 450HP 6*4 Heavy duty tractor truck(485 rear axle)

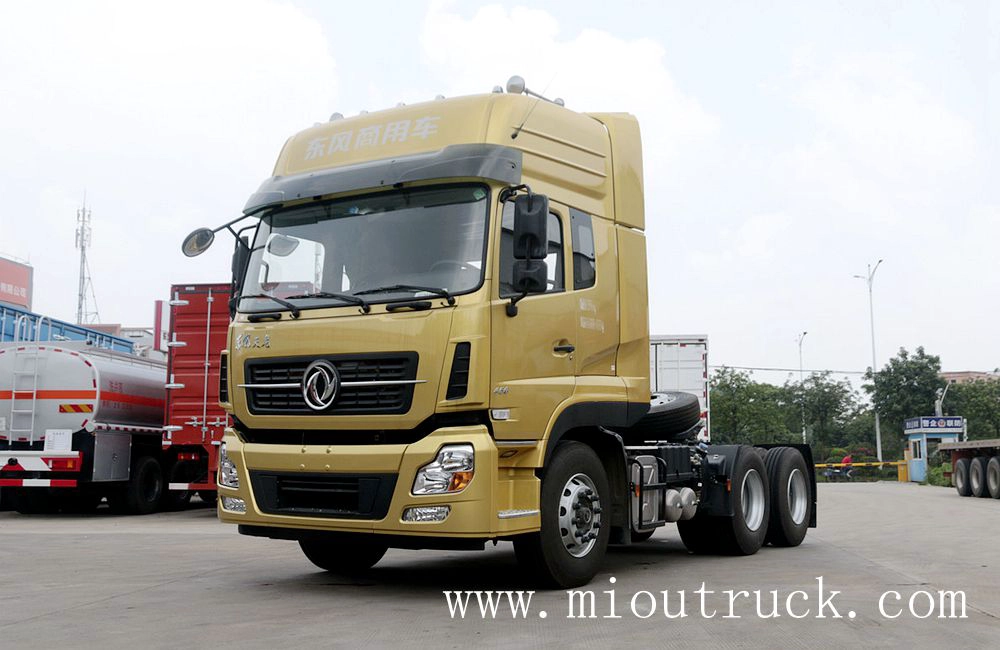

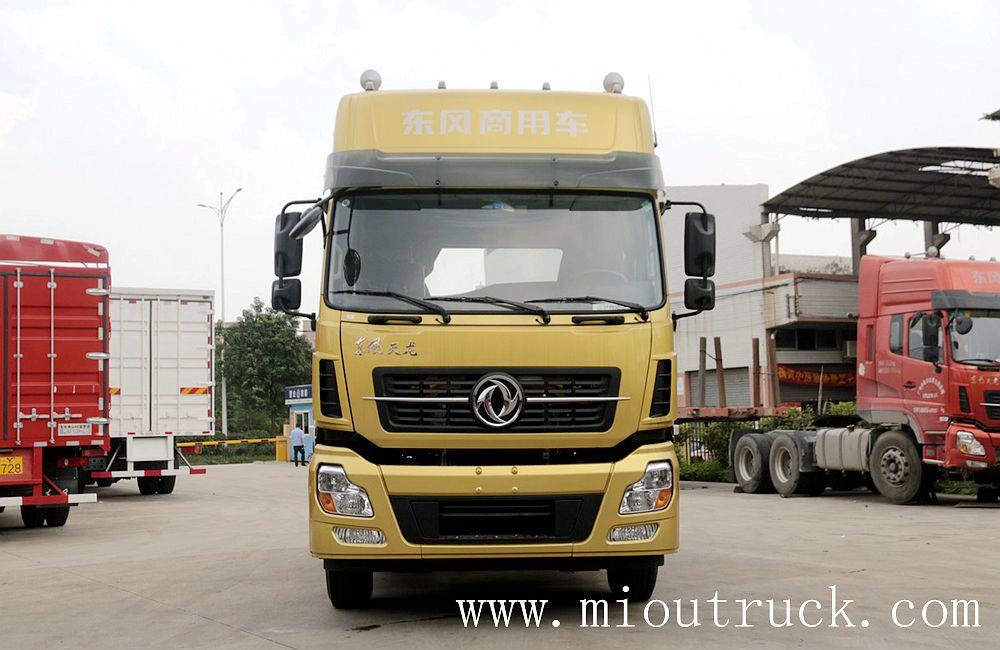

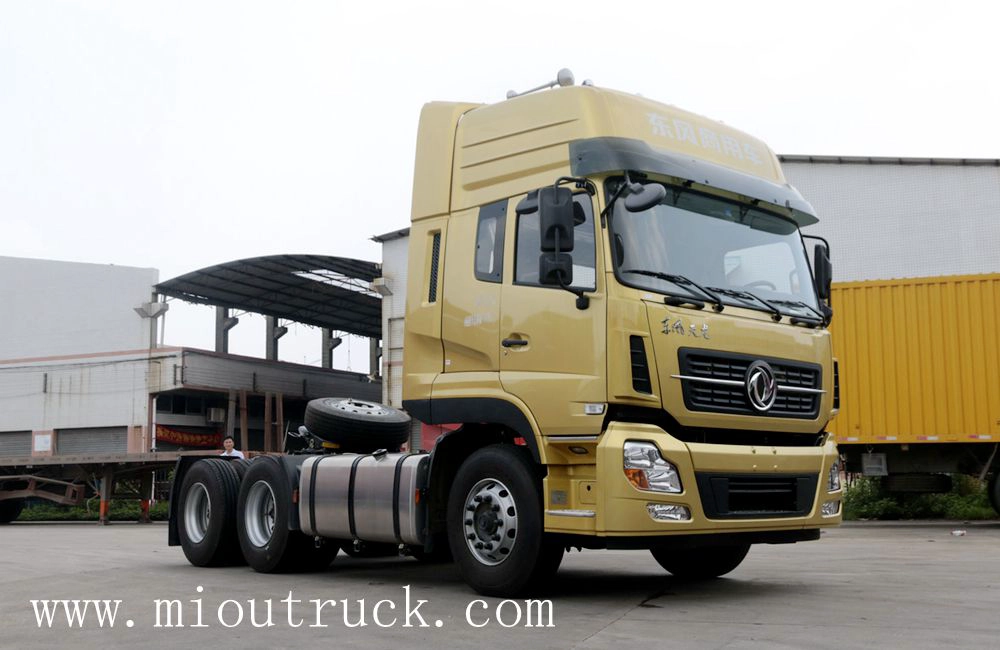

DFCV Tianlong DFL4251A15 450HP 6*4 Heavy duty tractor truck(485 rear axle)

  • 1.model number:DFL4251A15
  • 2.drive type:6*4
  • 3.overall dimension:6960*2500*3700mm
  • 4.G.V.W:25t
  • 5.rated loading capacity:6.805t
  • 6.engine:Dongfeng Cummins ISZ450 41
  • 7.emission standard:Euro4
  • 8.tire specification:12R22.5
  • 9.origin:Hubei, China(mainland)

model number:DFL4251A15     drive type:6*4                   overall dimension:6960*2500*3700mm
G.V.W:25t                   rated loading capacity:6.805t    engine:Cummins ISZ450 41
emission standard:Euro4     tire specification:12R22.5       origin:Hubei, China(mainland)








BASIC PARAMETER
model number DFL4251A15
drive type 6*4
overall dimension 6960*2500*3700mm
wheelbase 3300+1350mm
wheel track 2040,1820/1820mm
curb weight 8.8t
G.V.W 25t
rated loading capacity 6.805t
oil tanker material aluminum
oil tanker volume 750L

ENGINE
engine Dongfeng Cummins ISZ450 41
displacement 13.0L
max output 335.0kW
emission standard Euro4
fuel type desiel
torque 2237N·m
max torque speed 1400rpm
rated speed ratio 2100rpm
max horse power 450
GEAR BOX
model 法士特12JSD240TA
transmission type manual
forward gears 12
backward gears 2
CHASISS
rear axle double 485
rear axle capacity 18000
rear axle speed ratio 3.42
suspension type steelplate spring
leaf spring 3,4
tire specification 12R22.5
number of tires 10

Brief Introduction:

 Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.



Company Display:




Factory Display:









Packing:  nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements

Delivery date: 15 days






Q:How about the warranty?

A:One year



Q:Do you have ISO certificate ?

A:Yes , we have,pls contact us to get our certifications.



Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.



Q:How about shipping ?

A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .



Q: How many trucks does your factory produce per years?

A:Almost 3000 units



Q: How do you control the quality of product?

A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.



Q: How about your product After-sales service system?

A:Our main export country have accepted after-sales service,some of country used the third department service.



Q: Do you accept Custom orders? What’s is your MOQ order?

A:Yes, we do, our MOQ is 1 set.



Q: What’s the payment terms?



A:By T/T or L/C at sight.



Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world,  such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.




We provide you sincerely serviceif you have interest,contact us now!





Remarks:

    The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

    Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
