Home > Products > Truck crane > Straight arm > Dongfeng 6X4 truck mounted cra.....

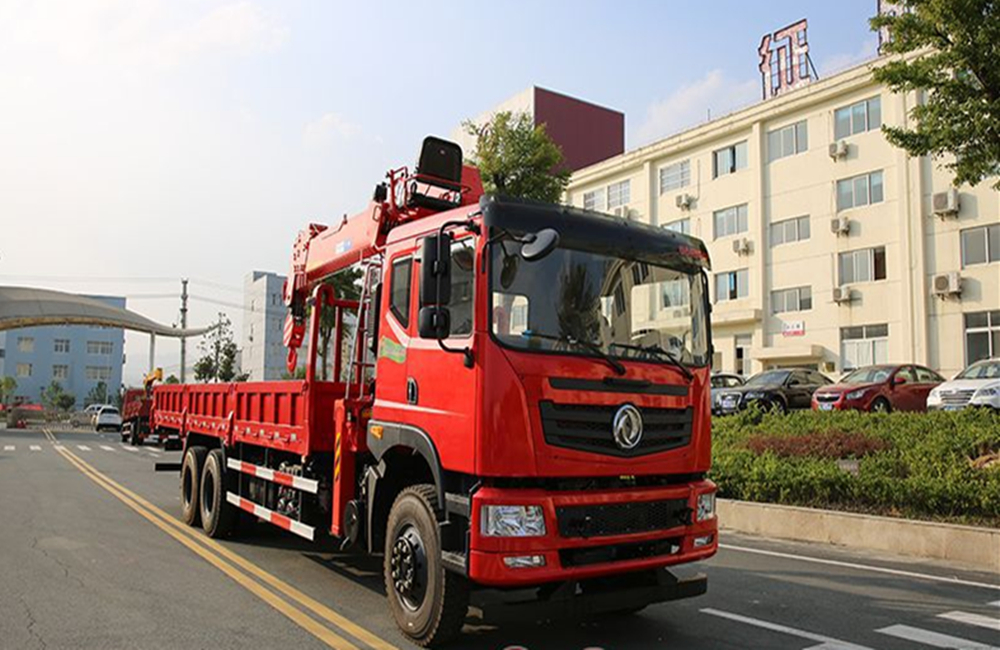

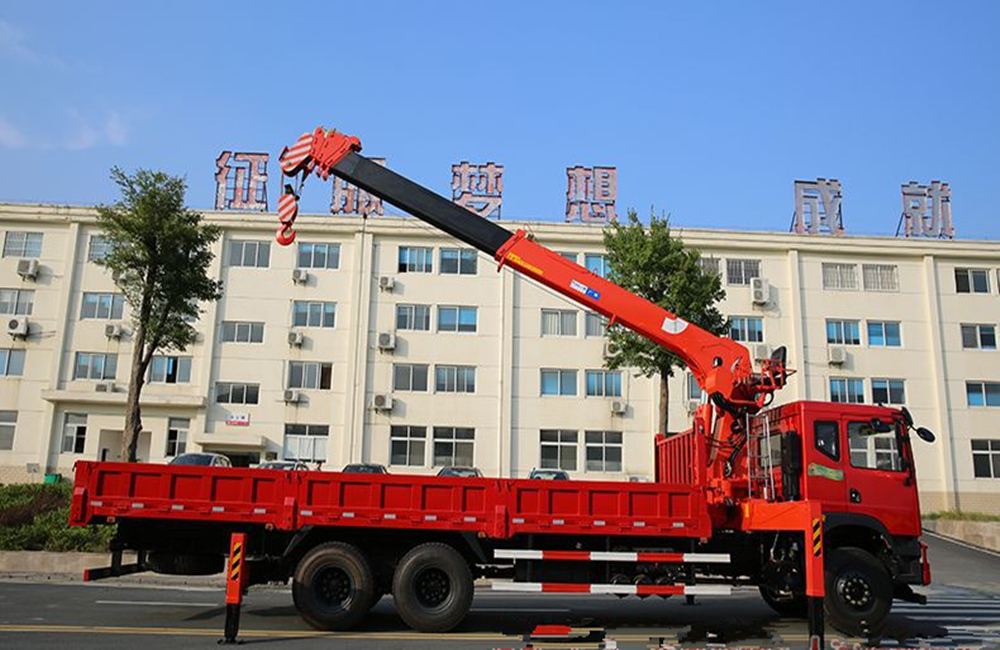

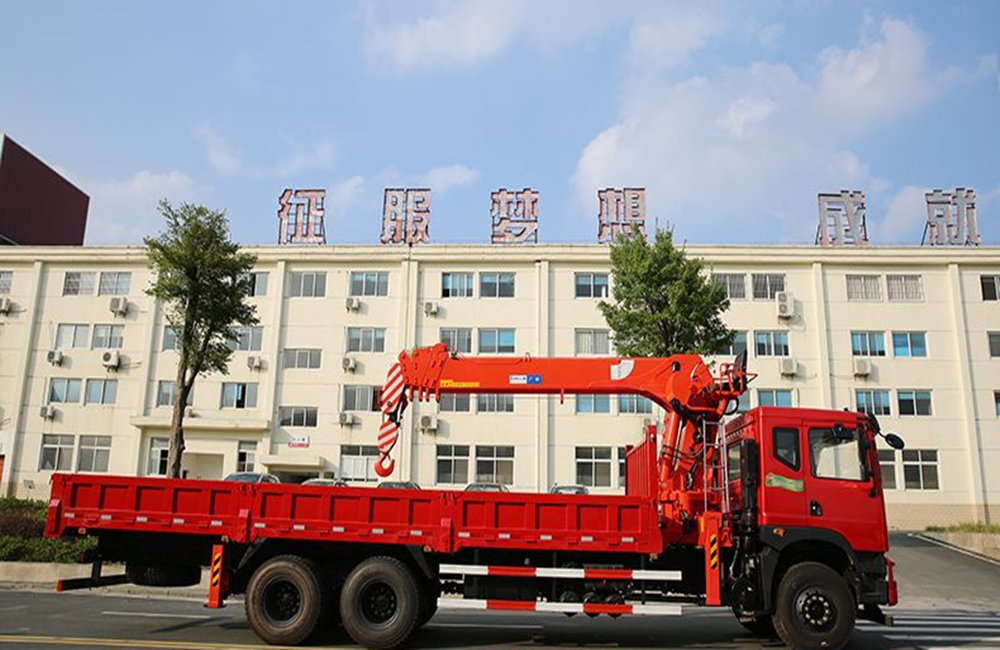

Dongfeng 6X4 truck mounted crane with best price for sale  china supplierDongfeng 6X4 truck mounted crane with best price for sale  china supplier

Dongfeng 6X4 truck mounted crane with best price for sale china supplier

  • 1.Fuel Type:Diesel
  • 2.Condition:new
  • 3.Feature:Truck Crane
  • 4.Max. Lifting Load:10tons
  • 5.Model Number:SQ10SK3Q
  • 6.Warranty:1 Year
QUICK DETAILS:
Condition:new                      Fuel Type:Diesel                 Total mass: 5000kg
Feature:Truck Crane           Dive Wheel:6X4                   Model of crane: SQ10SK3Q
Warranty:1 Year                  Max. Lifting Load:10tons       Place of Origin: Hbei,China


Brand of chassis Dongfeng Type of crane Telescopic Boom Crane
Total mass 25000kg Rated load 10505kg
Curb weight 14300kg Model of crane SQ10SK3Q
Emission level Euro 4 Quantity of axles 3
Wheel base 3500+1300mm F/R axle load 7000/18000kg(Tandem)
F/R suspension 1250/3450mm Front track 1940mm
Rear track 1860/1860mm Overall dimension 11900x2490x3850mm
Max.vehicle speed 85km/h Box dimension 8400x2300x800mm
Passengers in cab 3 Chassis model EQ1250GZ4DJ3
Engine Model B210 33
Max.power 155kw/210HP
Displacement 5900ml
Emission level  Euro 3
Electric system Operating voltage 24V negative grounded
Starter 24V,5.4KW
Alternator 28V,1.5KW
Battery voltage 2X12V/165Ah
Crane Model SQ10SK3Q
Max. lifting Moment 25T.M
Max. lifting Capacity 10000kg
Max. Lifting height 14m
Max. working radius 12m
Swivel angle ±360° continuous

Brief Introduction:
   Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.

Company Display:

Factory Display:


Packaging Details:
   nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriersor ro-ro ship or according to your requirements

Delivery Detail: 15 days
