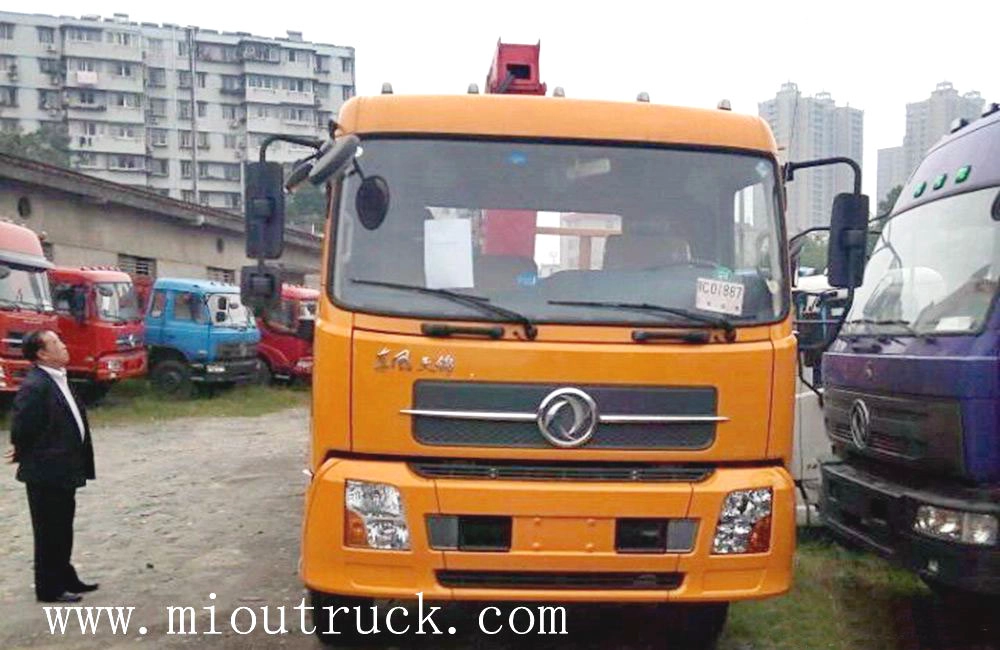

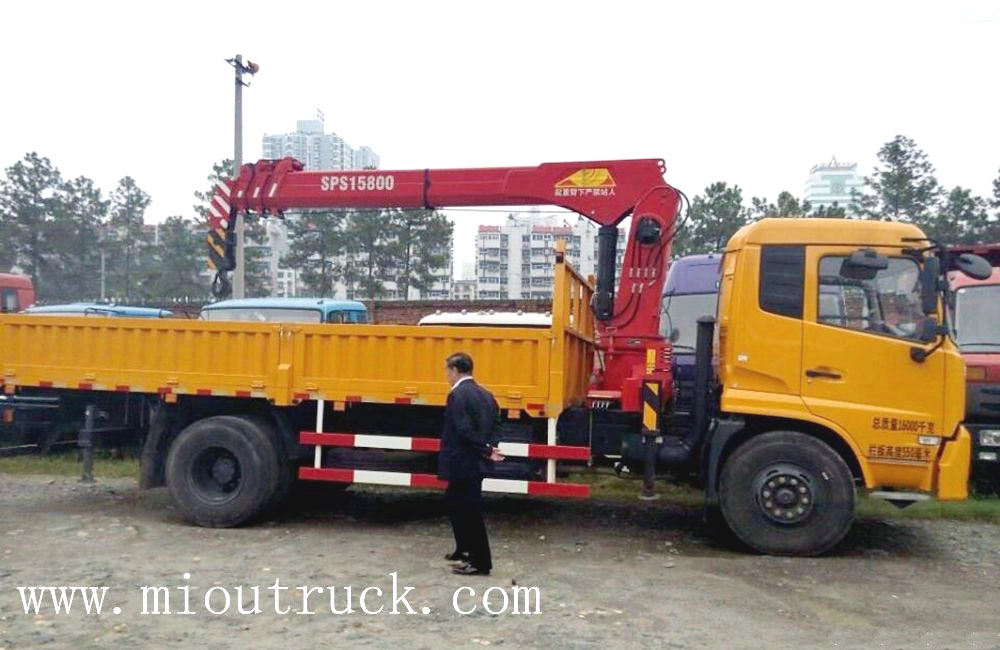

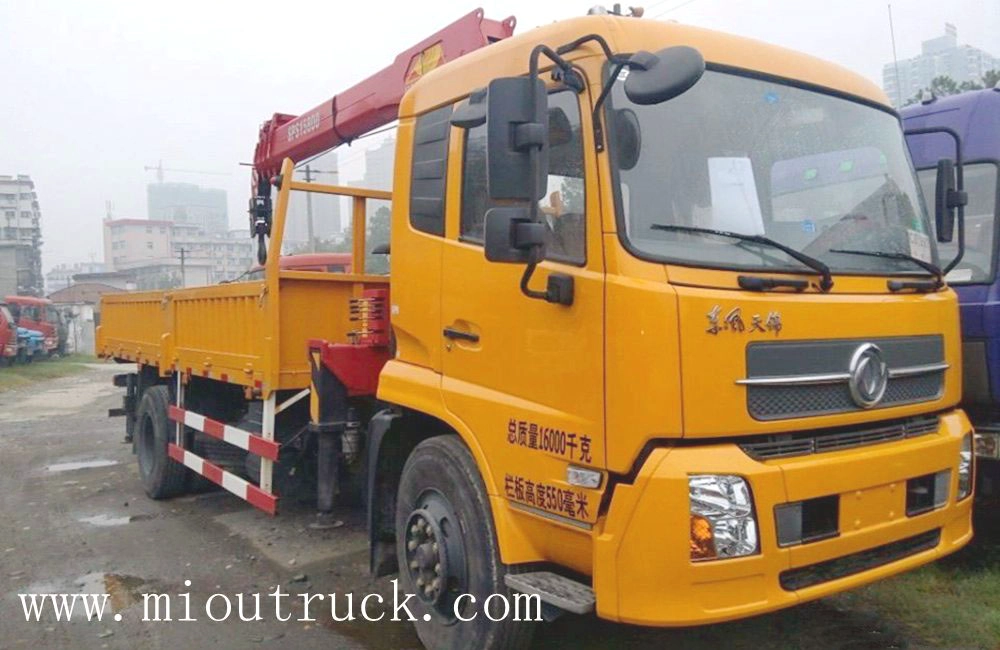

Dongfeng Tianjin 190HP 4*2 16t with Cummins engine Crane Truck
- 1.model number：SYM5161JSQD
- 2.drive type：4X2
- 3.overall dimension：8950X2498X3325mm
- 4.wheelbase：5000mm
- 5.G.V.W：16T
- 6.rated loading capacity：7.705T
- 7.lifting weight：6.3t
- 8.chassis model：DFL1160BX
- 9.tire specification：10.00R20
wheelbase：5000mm G.V.W：16T rated loading capacity：7.705T
lifting weight：6.3t chassis model：DFL1160BX tire specification：10.00R20
| BASIC PARAMETER | |
| model number | SYM5161JSQD |
| drive type | 4X2 |
| overall dimension | 8950X2498X3325mm |
| wheelbase | 5000mm |
| F/R wheel track | 1880/1920/1940，1800/1860mm |
| curb weight | 10.875t |
| G.V.W | 16T |
| rated loading capacity | 7.705T |
| f/R Suspension | 1430/2520mm |
| lifting weight | 6.3t |
| crane model | SPS15800 |
| crane weight | 8.8t |
| place of origin | Hubei China(mainland) |
| ENGINE | |
| engine | Dongfeng Cummins B190 33E |
| displacement | 5.9L |
| max output | 140kw |
| emission standard | Euro3 |
| fuel type | desiel |
| max horse power | 190 |
| GEAR BOX | |
| model | Dongfeng DF6S900 |
| transmission type | manual |
| number of gears | 6 |
| CHASISS | |
| chassis series | Dongfeng Tianjin |
| chassis model | DFL1160BX |
| F/R axle | 6t/10t |
| leaf spring | 8/10+ |
| tire specification | 10.00R20 |
| number of tires | 6 |
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 15 days
Q:How about the warranty?
A:One year
Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.
Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A:Almost 3000 units
Q: How do you control the quality of product?
A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
Q: What’s the payment terms?
A:By T/T or L/C at sight.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.
We provide you sincerely service，if you have interest,contact us now!
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
