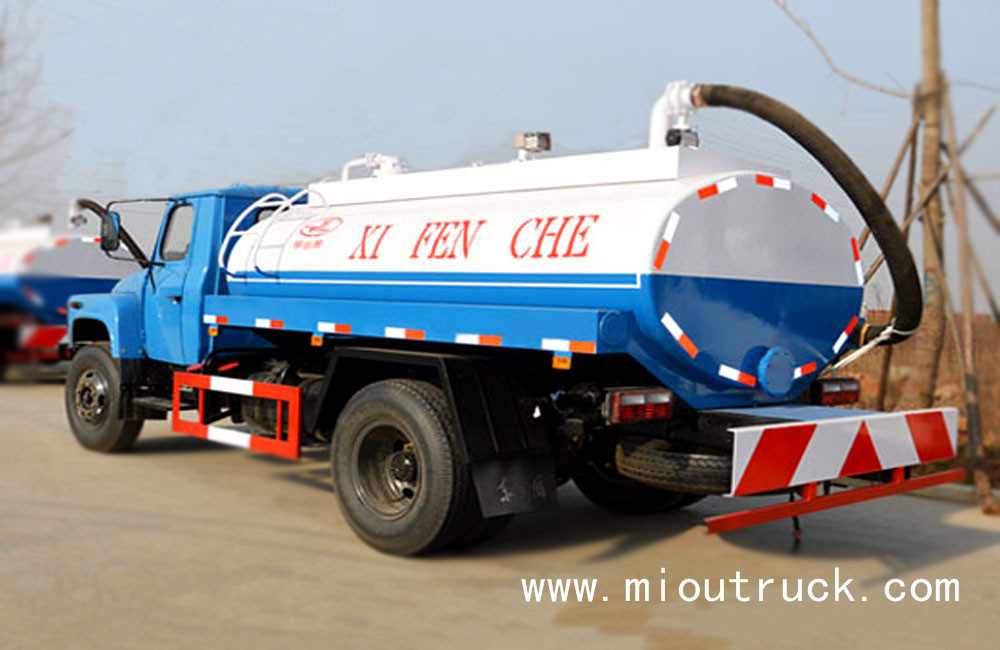

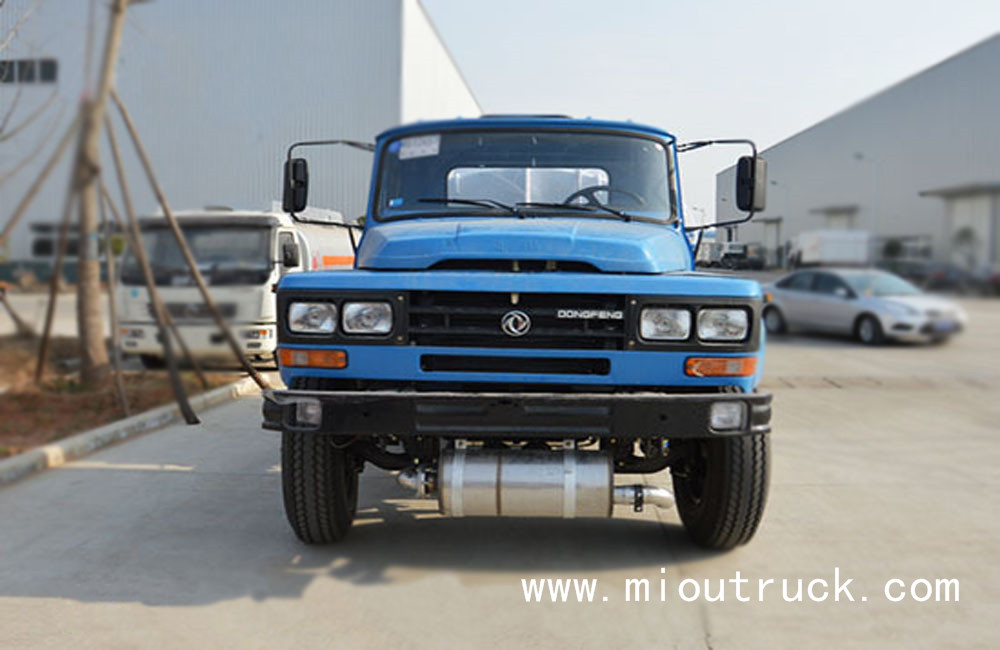

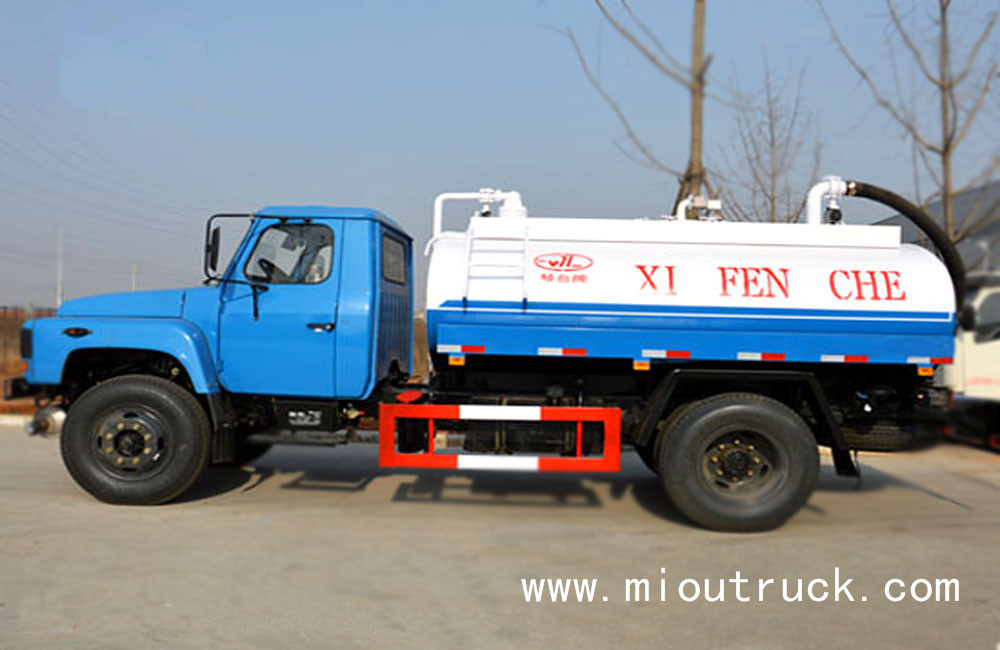

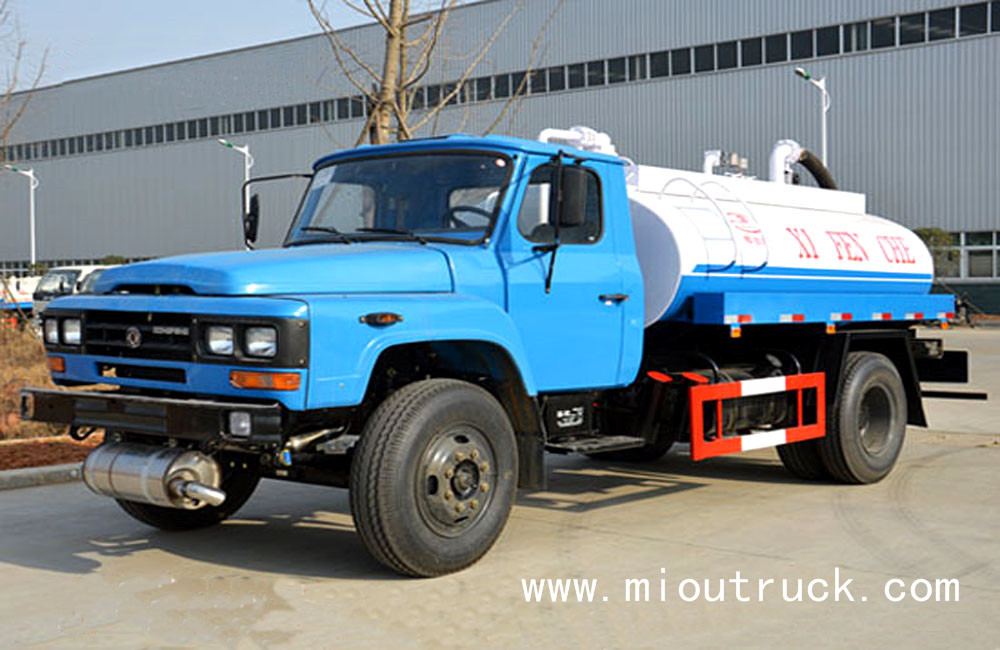

dongfeng CLQ5100GXE4 140 fecal suction truck,4*2 8CBM 5ton small fecal suction truck
- 1.model number:CLQ5100GXE4
- 2.G.V.W(Kg):10490
- 3.Drive wheel:4*2
- 4.rated load(Kg):5200
- 5.curb weight(Kg):5095
- 6.overall size(mm):7000×2450×2900
- 7.wheelbase(mm):3950
- 8.axle load(Kg):4000/6490
2.G.V.W(Kg):10490
3.Drive wheel:4*2
4.rated load(Kg):5200
5.curb weight(Kg):5095
6.overall size(mm):7000×2450×2900
7.wheelbase(mm):3950
8.axle load(Kg):4000/6490
| 【basic parameter】 | ||||||
| product name | CLQ5100GXE4fecal suction truck | |||||
| G.V.W(Kg) | 10490 | Drive wheel | 4*2 | |||
| rated load(Kg) | 5200 | overall size(mm) | 7000×2450×2900 | |||
| curb weight(Kg) | 5095 | allowance passenger |
3 | |||
| approach/departure angle(°) |
31/22 | F/R suspension (mm) |
1065/1985 | |||
| axle No.s | 2 | wheelbase (mm) |
3950 | |||
| axle load(Kg) | 4000/6490 | max speed (Km/h) |
90 | |||
| 【chassis】 | ||||||
| chassis model | EQ1100FLJ8 | manufacture | Dongfeng Motor Corporation |
|||
| brand | dongfeng | overall size (mm) |
6800×2364×2370 | |||
| tire specification | 9.00-20 | tire No.s | 6 | |||
| leaf spring | 9/12+9 | front wheel track (mm) |
1810 | |||
| fuel type | desiel | rear wheel track (mm) |
1800 | |||
| emission standard |
Euro4 | gear box | 5 | |||
| cabin | A luxurious interior and seat belt, steering, optional air conditioning. |
|||||
| engine model | engine manufacture | displacement(ml) | power(Kw) | |||
| YC4E140-42 | Guangxi yuchai machinery co., LTD |
4260 | 103 | |||
| 【fecal tanker】 | ||||||
| effictive volume（m³） | 6--8 | material | Q235carbon steel | |||
| 【feature】 | ||||||
| The car is equipped with a special vacuum pump for pumping manure, manure, sewage sludge, slurry liquid mixed with tiny granules and other sewage. Fecal suction pipe can be rotated 360 degrees,smoke filled with manure tank time: less than 5min, the absorption process is not less than the emissionof 6m. pressurized emissions and their emissions in two ways; the the car is mainly used to septic tanks,special vehicles clearing and cleaning sewage water and sewer environment. |
||||||
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 15 days
Q:How about the warranty?
A:One year
Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.
Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A:Almost 3000 units
Q: How do you control the quality of product?
A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
Q: What’s the payment terms?
A:By T/T or L/C at sight.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.
We provide you sincerely service，if you have interest,contact us now!
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
Tel:+86 18154490468
Contact Person:Caitlin
PDF Show:PDF
