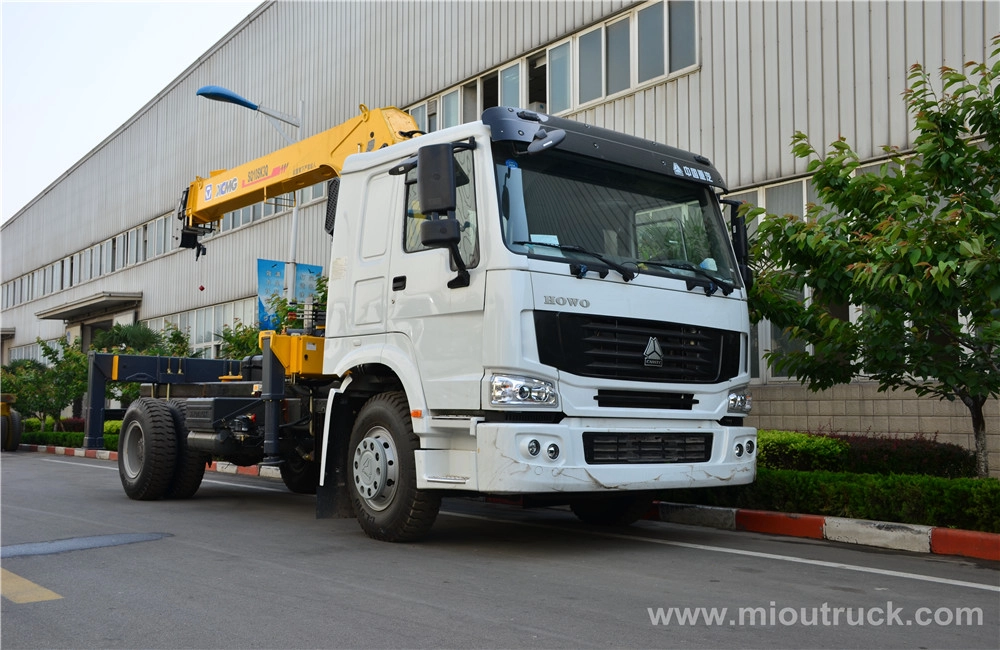

HOWO 4X2 8 ton lifting truck mounted crane china supplier with good quality for sale
- 1.Condition:New
- 2.Fuel Type:Diesel
- 3.Emission Standard:Euro2
- 4.Brand Name:HOWO
- 5.Max Speed:90km/h
- 6.Max. Lifting Load:5000 kg
QUICK DETAILS:
Condition:New Emission Standard:Euro2 Horse Power: 336HP
Drive Wheel:4x2 Fuel Type:Diesel Model: ZF8098
Max Speed:90km/h Brand Name:HOWO Fuel tanker capacity: 300L
| Basic information | |||
| Dimension(L x W x H, mm) | 11184× 2496× 3046 | ||
| Cargo body size (L x W x H, mm) | 8480x2326x600 | ||
| Approaching angle/Departure angle(° ) | 10月16日 | ||
| Overhang(front/rear, mm) | 1500/3109 | ||
| Wheel base (mm) | 5200+1400 | ||
| Max speed(km/h) | 90/102 | ||
| Curb weight(kg) | 13170 | ||
| Loading Weight(kg) | 12000 | ||
| Engine specifications | |||
| Model | WD615.69, water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and intercooling, directly injection | ||
| Fuel type | Diesel | ||
| Horse Power | 336HP | ||
| Emission | EURO2 | ||
| Fuel tanker capacity | 300L | ||
| Transmission | Model | HW15710 | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
| Steering system | Model | ZF8098 | |
| Front axle | HF9 Drum, Steering with double T-cross section beam | ||
| Rear axle | ST16, Pressed axle housing, central double reduction with differential locks between axles and wheels | ||
| Tyre | 12.00-20/12.00R20/12R22.5/315/80R22.5 | ||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Packaging Details:
nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriersor ro-ro ship or according to your requirements
Delivery Detail: 15 days
