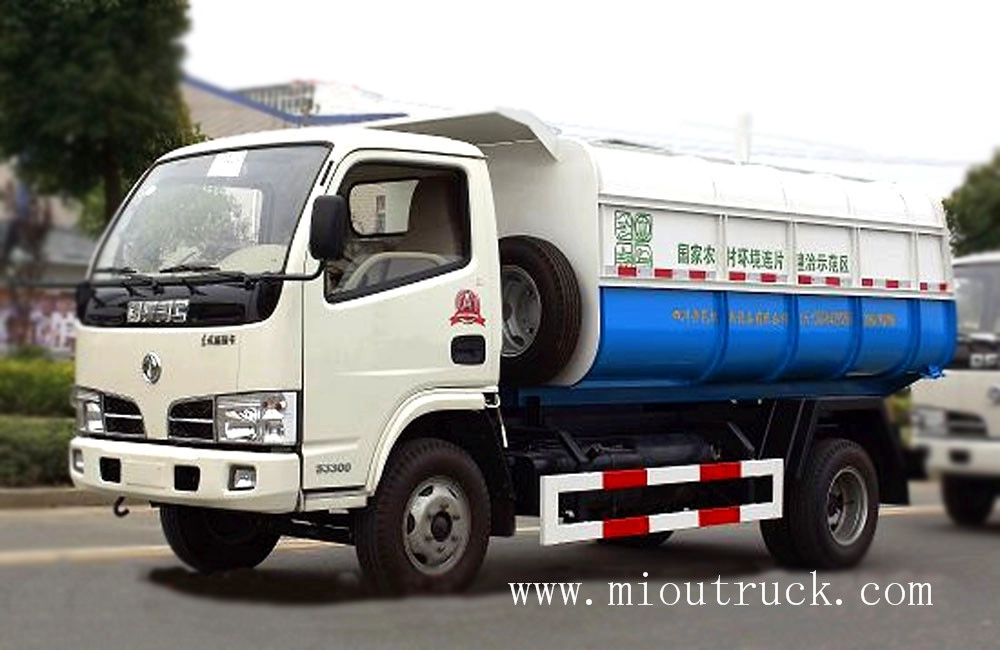

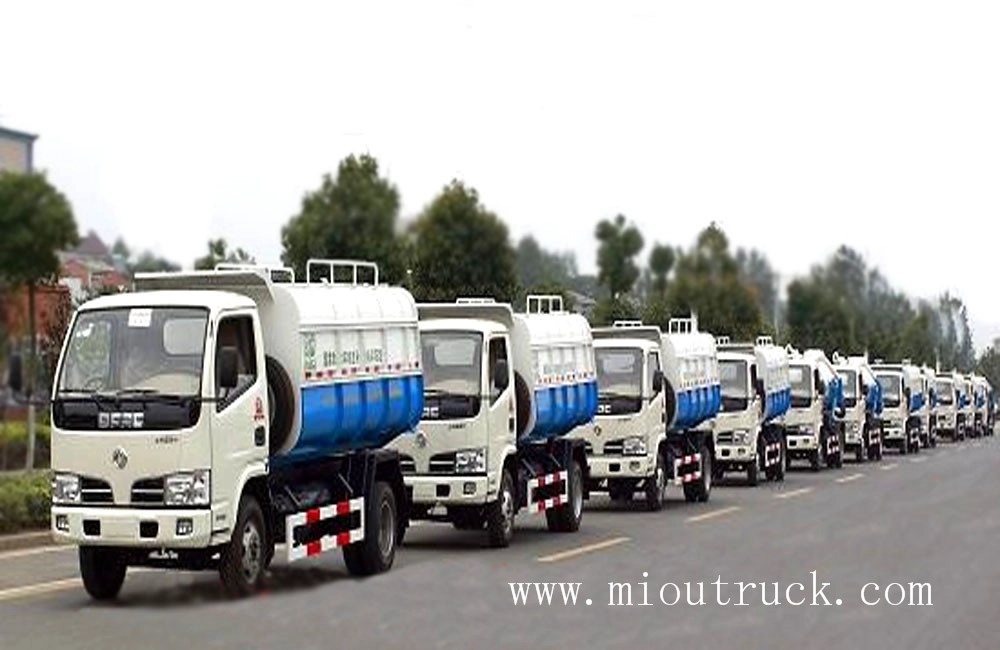

Dongfeng CLW5071ZZZ4 4*2 3ton Hydraulic Lifter Garbage truck
- 1.model number ：CLW5071ZZZ4
- 2.G.V.W(KG):7300
- 3.rated load（kg）：3320，3255
- 4.curb weight（kg）：3850
- 5.overall dimension（mm）：5800*2000*2300
- 6.F/R suspension(mm)：1032/1468
- 7.wheel base（mm）：3300
- 8.chassis model：DFA1070SJ35D6
- 9.emission standard：Euro4
2.G.V.W(KG):7300
3.rated load（kg）：3320，3255
4.curb weight（kg）：3850
5.overall dimension（mm）：5800*2000*2300
6.F/R suspension(mm)：1032/1468
7.wheel base（mm）：3300
8.chassis model：DFA1070SJ35D6
9.emission standard：Euro4
| 【basic parameter 】 | |||
| model number | CLW5071ZZZ4 | product number | ZKGBJ41Y018 |
| G.V.W(Kg) | 7300 | rated load (Kg) |
33,203,255 |
| curb weight (Kg) |
3850 | overall dimension (mm) |
5800*2000*2300 |
| approach/ departure (°) |
19/14 | F/R suspension (mm) |
1032/1468 |
| alxe No.s | 2 | wheel base(mm) | 3300 |
| axle load(Kg) | 2920/4380 | max speed (Km/h) |
95 |
specification |
Self loading garbage truck can coperate with dozens of trash can ,a car and a plurality of trash combined operation of hydraulic lifting device of the compartment can be garbage bucket, down on the work cycletime of the next 50S. sealed compartment, environmental health, avoid second pollution . Dump type: rear unloading. The vehicle mainly used for garbage collection vehicles sanitation department, garbage removal and other large industrial and mining enterprises. |
||
| 【chassis】 | |||
| chassis model | DFA1070SJ35D6 | chassis brand | dongfeng |
| overall dimension (mm) |
5845×1900×2220 | tire number | 6 |
| approach/ departure(°) |
19/16 | tire sppecification | 7.00-16 14PR, 7.00R16 14PR |
| leaf spring | 8/9+5,6/8+4 | front wheel track (mm) |
1506，1404 |
| fuel type | desiel | rear wheel track(mm) |
1466，1458 |
| emission standard |
GB3847-2005,GB17691-2005 Euro4 | ||
| engine model |
manufacture | displacement (ml) |
power (Kw) |
| 4B28BTCI | Chang Chai Limited by Share Ltd |
2834 | 70 |
| SD4BW754U | Jiangsu four Power Machinery Group Co., Ltd. |
2545 | 75 |
| YN33CRD2 | Kunming Yunnei Limited by Share Ltd |
3298 | 75 |
| CY4102-CE4F | Dongfeng Chaoyang Diesel Engine Co., Ltd. |
3856 | 73 |
| YC4FA90-40 | Guangxi Yuchai Machinery Limited by Share Ltd |
2982 | 66 |
| D28D10-4DA | Dongfeng light engine Co., Ltd. |
2771 | 75 |
