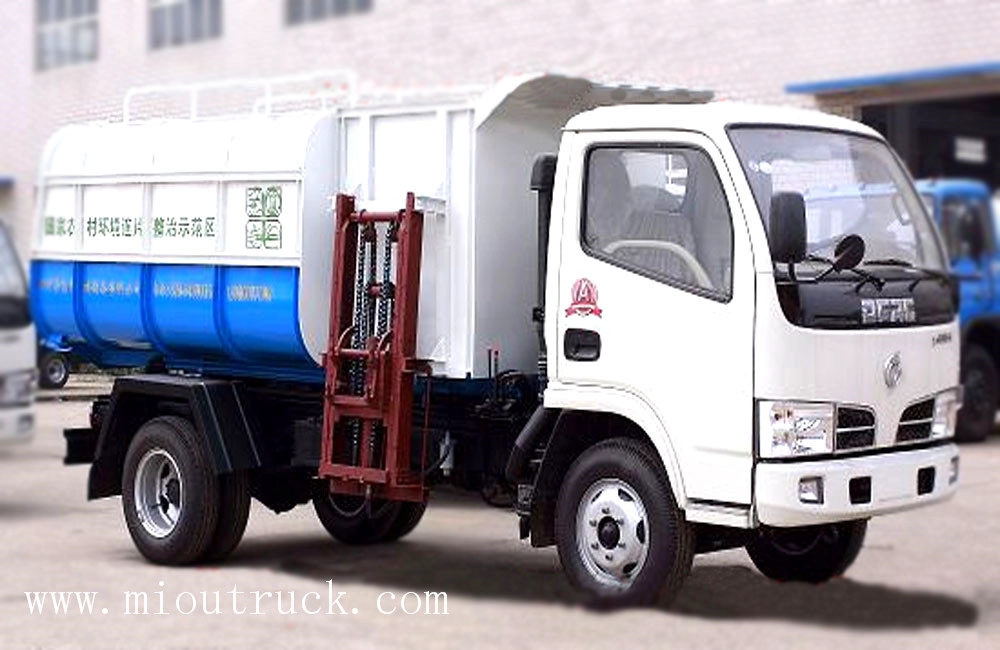

Dongfeng CLW5071ZZZ4 4*2 3ton Hydraulic Lifter Garbage truck
- 1.model number ：CLW5071ZZZ4
- 2.G.V.W(KG):7300
- 3.rated load（kg）：3320，3255
- 4.curb weight（kg）：3850
- 5.overall dimension（mm）：5800*2000*2300
- 6.F/R suspension(mm)：1032/1468
- 7.wheel base（mm）：3300
- 8.chassis model：DFA1070SJ35D6
- 9.emission standard：Euro4
2.G.V.W(KG):7300
3.rated load（kg）：3320，3255
4.curb weight（kg）：3850
5.overall dimension（mm）：5800*2000*2300
6.F/R suspension(mm)：1032/1468
7.wheel base（mm）：3300
8.chassis model：DFA1070SJ35D6
9.emission standard：Euro4
| 【basic parameter 】 | |||
| model number | CLW5071ZZZ4 | product number | ZKGBJ41Y018 |
| G.V.W(Kg) | 7300 | rated load (Kg) |
33,203,255 |
| curb weight (Kg) |
3850 | overall dimension (mm) |
5800*2000*2300 |
| approach/ departure (°) |
19/14 | F/R suspension (mm) |
1032/1468 |
| alxe No.s | 2 | wheel base(mm) | 3300 |
| axle load(Kg) | 2920/4380 | max speed (Km/h) |
95 |
specification |
Self loading garbage truck can coperate with dozens of trash can ,a car and a plurality of trash combined operation of hydraulic lifting device of the compartment can be garbage bucket, down on the work cycletime of the next 50S. sealed compartment, environmental health, avoid second pollution . Dump type: rear unloading. The vehicle mainly used for garbage collection vehicles sanitation department, garbage removal and other large industrial and mining enterprises. |
||
| 【chassis】 | |||
| chassis model | DFA1070SJ35D6 | chassis brand | dongfeng |
| overall dimension (mm) |
5845×1900×2220 | tire number | 6 |
| approach/ departure(°) |
19/16 | tire sppecification | 7.00-16 14PR, 7.00R16 14PR |
| leaf spring | 8/9+5,6/8+4 | front wheel track (mm) |
1506，1404 |
| fuel type | desiel | rear wheel track(mm) |
1466，1458 |
| emission standard |
GB3847-2005,GB17691-2005 Euro4 | ||
| engine model |
manufacture | displacement (ml) |
power (Kw) |
| 4B28BTCI | Chang Chai Limited by Share Ltd |
2834 | 70 |
| SD4BW754U | Jiangsu four Power Machinery Group Co., Ltd. |
2545 | 75 |
| YN33CRD2 | Kunming Yunnei Limited by Share Ltd |
3298 | 75 |
| CY4102-CE4F | Dongfeng Chaoyang Diesel Engine Co., Ltd. |
3856 | 73 |
| YC4FA90-40 | Guangxi Yuchai Machinery Limited by Share Ltd |
2982 | 66 |
| D28D10-4DA | Dongfeng light engine Co., Ltd. |
2771 | 75 |
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
company display
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 15 days
Q:How about the warranty?
A:One year
Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.
Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A:Almost 3000 units
Q: How do you control the quality of product?
A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
Q: What’s the payment terms?
A:By T/T or L/C at sight.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.
We provide you sincerely service，if you have interest,contact us now!
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
