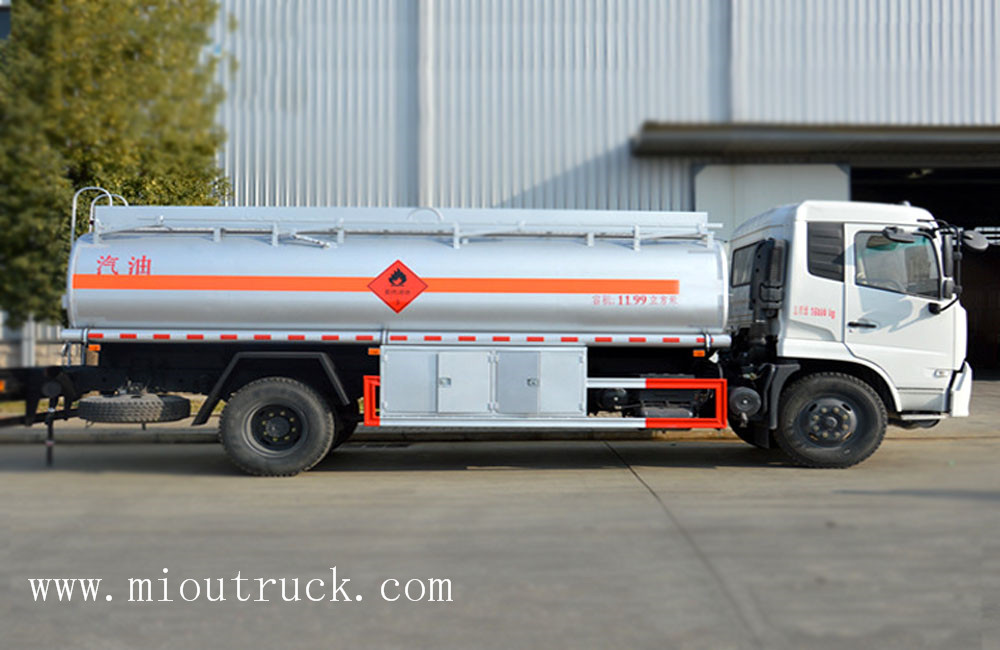

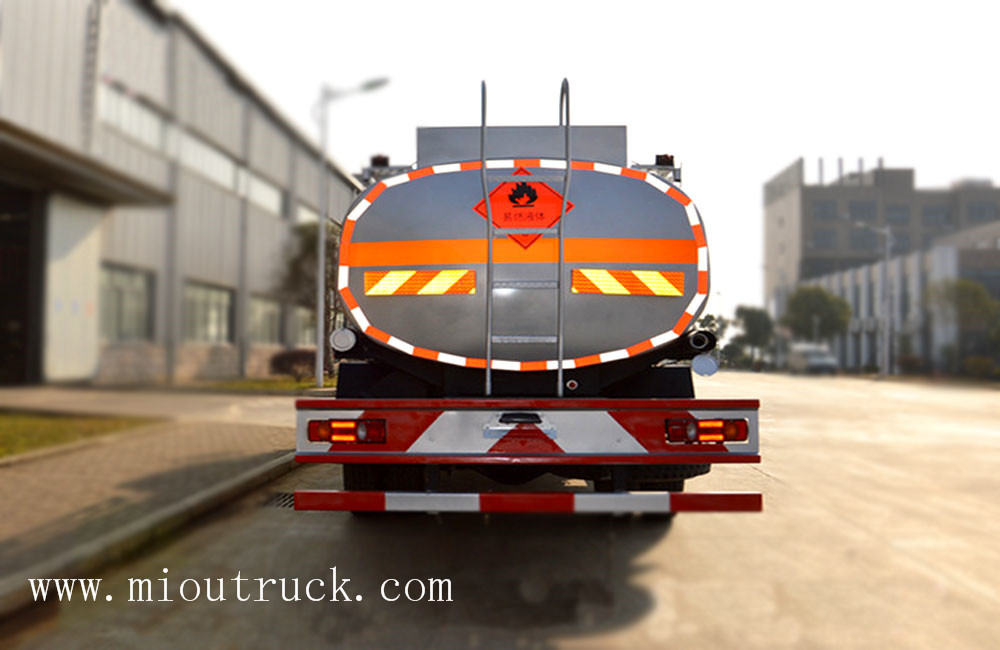

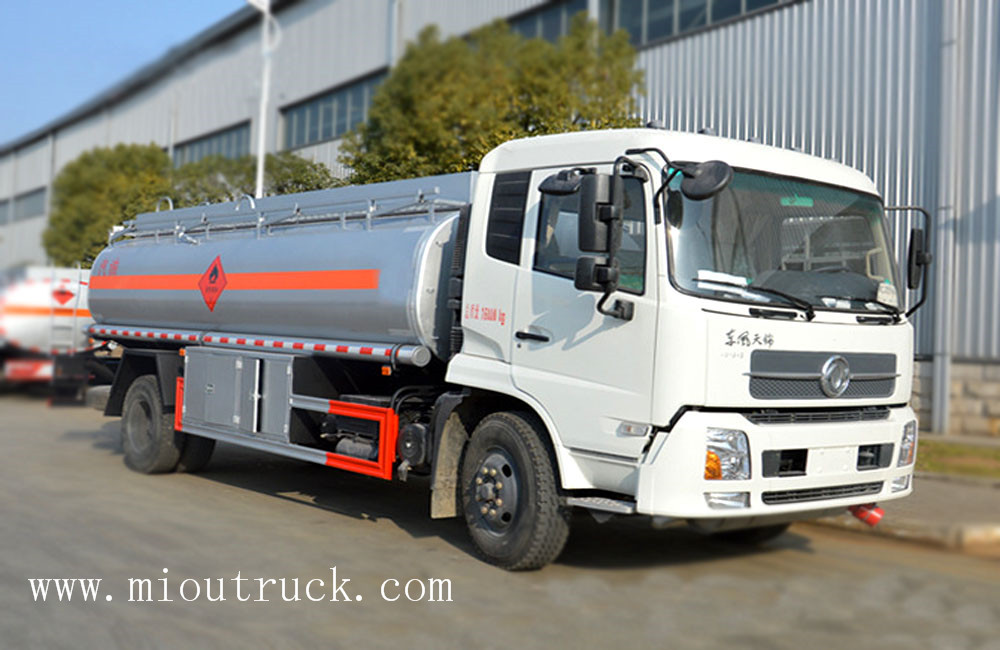

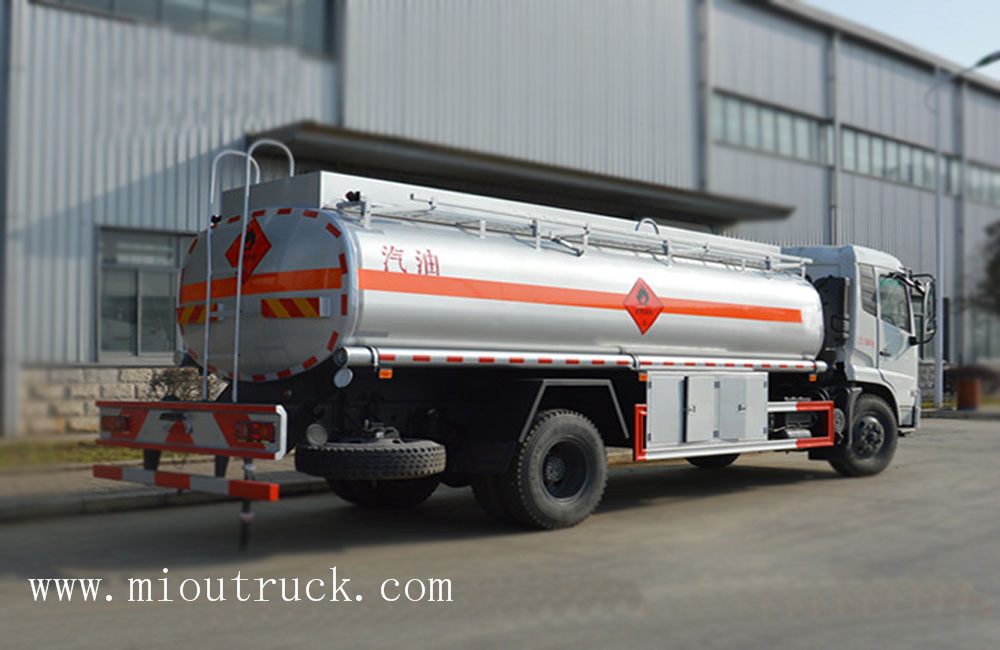

CSC5160GYYDX5 dongfeng 16CBM fuel tanker transport vehicle
- 1.model number: CSC5160GYYDX5
- 2.G.V.W(Kg):16000
- 3.Drive wheel:4*2
- 4.rated load(Kg):9800
- 5.overall dimension(mm):8990*2380*3180
- 6.wheel base(mm):4700
- 7.chassis model:DFL1160BX5
- 8.emission standard:Euro4
- 9.tanker volume（L/m³):16
2.G.V.W(Kg):16000
3.Drive wheel:4*2
4.rated load(Kg):9800
5.overall dimension(mm):8990*2380*3180
6.wheel base(mm):4700
7.chassis model:DFL1160BX5
8.emission standard:Euro4
9.tanker volume（L/m³):16
| 【basic parameter】 | ||||||
| model number | CSC5160GYYDX5 | |||||
| G.V.W(Kg) | 16000 | Drive wheel | 4*2 | |||
| rated load(Kg) | 9800 | overall dimension(mm) | 8990×2380×3180 | |||
| Curb weight(Kg) | 6005 | cabin passenger(person) | 3 | |||
| approach/departure angle(°) | 12/19 | F/R suspension(mm) | 1430/2860 | |||
| axle No.s | 2 | wheel base(mm) | 4700 | |||
| axle load(Kg) | 6000/10000 | max speed(Km/h) | 80 | |||
| 【chassis】 | ||||||
| chassis model | DFL1160BX5 | overall dimension(mm) | 7190×2370×2760 | |||
| tire specification | 9.00R20 | tire No.s | 6 | |||
| leaf spring | 8/10+8 | front wheel track(mm) | 1880 | |||
| fuel type | desile | rear wheel track(mm) | 1860 | |||
| emission standard | Euro4 | gear boxs | 6 gears | |||
| cabin | D530 flat, a row of semi flat cab, electric glass lifter, door lock control, channel type dashboard, with air conditioning |
|||||
| engine model | manufacture | displacement(ml) | power(Kw) | |||
| ISB180 40 | Dongfeng Cummins Engine Co., Ltd. | 5900 | 132 | |||
| tanker volume（L/m³)） | 16 | |||||
| tanker material | Q235carbon steel。 | |||||
| transport media | gasoline, desiel | |||||
| 【specification】 | ||||||
| A，Tanks with multichannel clapboard, make the tanks with high strength Center of gravity steady vehicles smooth transport security etc； |
||||||
| B,Conductor pump installation, can be oil absorption oil discharge, suction pressure and speed； |
||||||
| C，With the car mounted computer CCPFPM, equipped with automatic back 15 meters of pipe and refueling gun, realize mobile refueling function； |
||||||
| D，According to the needs of the user, the tank can be designed into a single chamber or multi bin packing different oil； |
||||||
| E，According to the needs of users, the tank tail or side can choose to install 1-3 free flow； |
||||||
Brief Introduction:

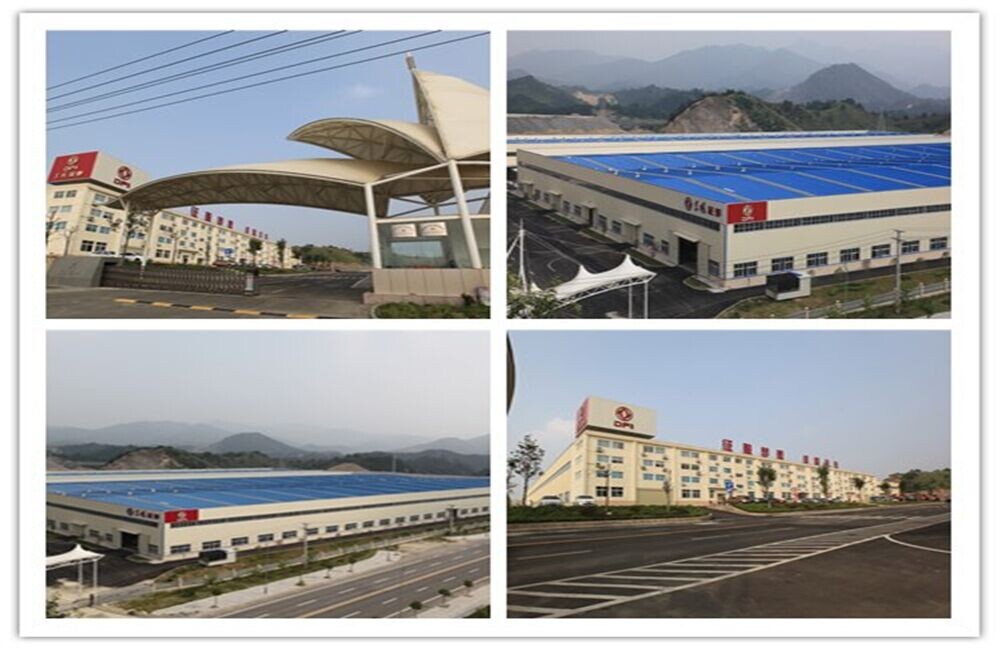

Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 15 days
Q:How about the warranty?
A:One year
Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.
Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A:Almost 3000 units
Q: How do you control the quality of product?
A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
Q: What’s the payment terms?
A:By T/T or L/C at sight.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.
We provide you sincerely service，if you have interest,contact us now!
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
