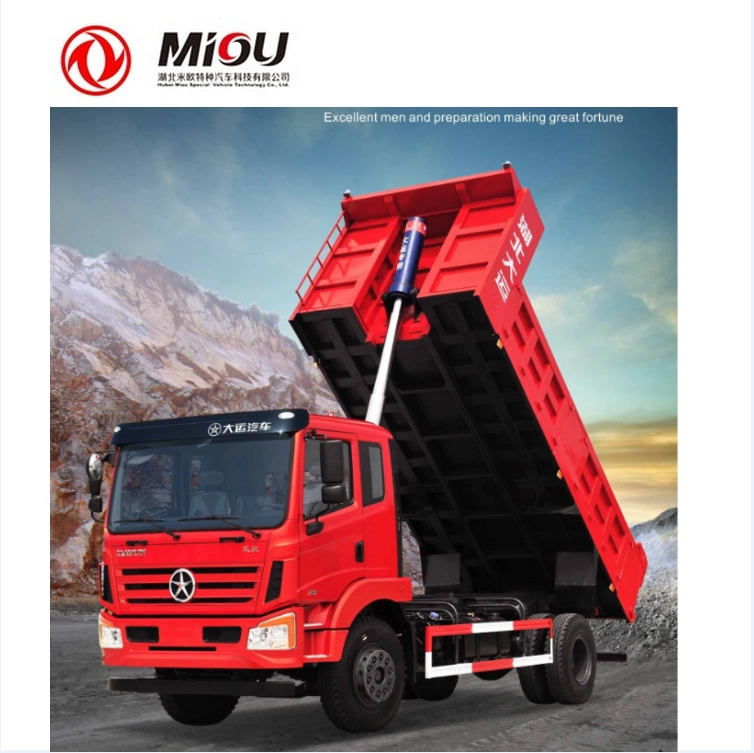

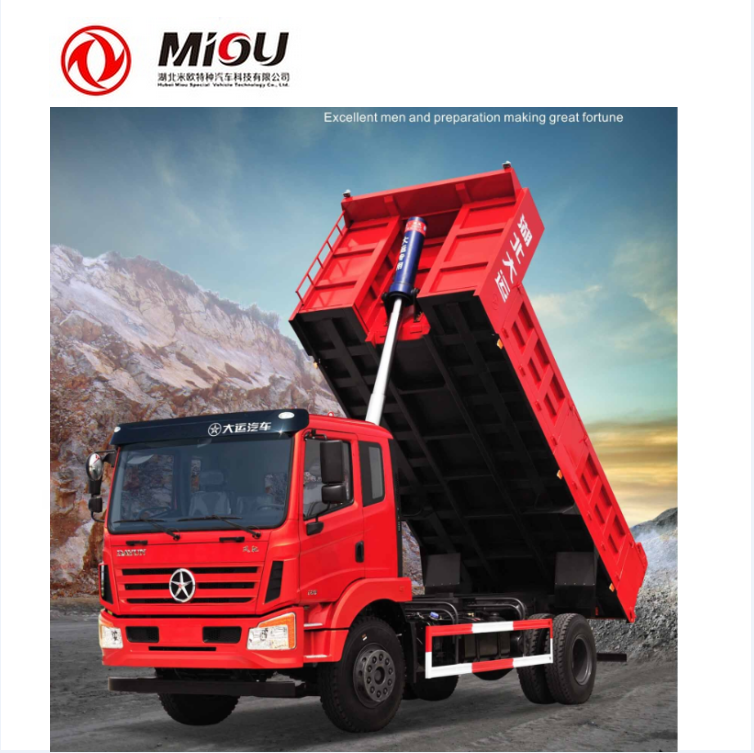

China Dayun Dump Truck Storage 5Ton Dump Truck Rentals for sale
- 1.Emission Standard:Euro 2
- 2.Fuel Type:Diesel
- 3.Engine Capacity:4 - 6L
- 4.Gross Vehicle Weight:16000
- 5.Place of Origin:Hubei, China (Mainland)
- 6.Brand Name:DAYUN
- 8.Model Number:3C009
- 9.Dimensions (L x W x H) (mm):8020*2480*3060
- 10.Product name:Dump Truck Storage
- 11.Engine:YC6J180-46
- 12.Number of tires:6
- 13.Color:White, Red, Yellow,bule,crystal green
- 14.Max speed(km/h):85
- 15.Statuory Power(Kw/rpm):132KW(180hp)/2500r/Min
- 16.Name:Dump Truck Rentals
- 17.Type:Dump Trucks in Construction
Fuel Type:Diesel
Engine Capacity:4 - 6L
Gross Vehicle Weight:16000
Place of Origin:Hubei, China (Mainland)
Brand Name:DAYUN
Model Number:3C009
Dimensions (L x W x H) (mm):8020*2480*3060
Product name:Dump Truck Storage
Engine:YC6J180-46
Number of tires:6
| Model | 3C009（DYQ3169D4UA） | |
| SIZE | L×W×H(no-load) | 8020×2480×3060 |
| Wheelbase | 4200 | |
| Cargo Box | 4900×2200×800 | |
| Front/rear wheel track | 1960/1860 | |
| Front/rear Suspension（mm） | 1460/1300 | |
| Frame | 800×280×（8+7） | |
| WEIGHT | Total weight（kg） | 16000 |
| Curb Weight（kg） | 7815 | |
| Statutory Load Weight（kg） | 7990 | |
| Max Total Weight（kg） | 25000 | |
| seats | 3 | |
| PERFORMANCE | Max speed≥(km/h) | 85 |
| Max climbling≥(%) | 25 | |
| Min Turn diameter≤（m） | 16 | |
| Mini Ground Clearance（mm） | 240 | |
| Approaching angle（°） | 25/20 | |
| TECHNOLOGY DATA | STANDARD | |
| ENGINE | Engine Model | YC6J180-46,in-line,4 cylinder,Turbo,Intercooier |
| Statuory Power（Kw/rpm） | 132KW(180hp)/2500r/Min | |
| Max Torque（N.m/rpm） | 590N.m/1200-1700rpm | |
| Exhause Emission Standard | EURO 4 | |
| Displacement | 6.494 | |
| CHASSIS | Transsion | FAST 8JS118，manual 8 speeds |
| Gear ratio | 11.7,7.94,5.63,4.06,2.81,1.96,1.39,1,Reverse gear 11.35 | |
| Clutch | 430mm(Single,dry type,diaphragm springs clutch) | |
| Steering | Hydraulically power | |
| Front Axle | 153,5Ton, Drum break,w/o ABS | |
| Rear Axle | 457,13Tons, Main reduction ratio 6.833，Single reduction,w/o ABS | |
| Front/rear Suspension | Front: Portrail positioned parabolic steel plate springs | |
| Rear: Portrail positioned parabolic steel plate springs | ||
| Brake System | Compressed air front/rear
drum brake, Diaphragm spring brake chamber. Exhaust brake ,parking braking |
|
| Transsion Shaft | Nonconstant velocity universal joint | |
| Tires | 10.00R20,6 tires with 1 spare tires | |
| Fuel Tank(L) | 280L | |
| Electrical Power System | 24V, single line, Negative electrode,140Amp/h | |
| other | ||
| TRUCK BODY | Cab | Flat Semi-high roof cab,
power-driven control glass manual rearview mirror,airbag seat, with sunshade |
| Air Conditioner | Cool & Heater, manual control | |
| Interior Decoration | One time molding,made from
polymer based composite high strength UV proteclion, nontoxic, aseptic, flame retardant |
|
| Driver seat +passenger seat | 1+2 | |
| Sleeper | single |
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D, manufacture and sales of special purpose vehicles. We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company display
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to their requirements
Delivery date: 15 days
Q: How about the warranty?
A: One year
Q: Do you have ISO certificate?
A: Yes, we have, pls contact us to get our certifications.
Q: How about the delivery time?
A: Most of our trucks are all have in stock, We can delivery to you within 15 Days, if specially ordered, we always need around 30 days for production.
Q: How about shipping?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container, Pls contact us to get a shipping quotation.
Q: How many trucks does your factory produce per years?
A: Almost 3000 Units
Q: How do you control the quality of product?
A: Our Factory is standard production workship, got ISO CCC BV Certification, our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service, some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is 1 set.
Q: What's the payment terms?
A: By T / T or L / C at sight.
Q: Which country do you have exported to?
A: Our special trucks can be found in many parts of the world, such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.
We provide you sincerely service, & Lt;If you have interest, contact us now!
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other information or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as follows:
Tel:+86 18154490468
Contact Person:Caitlin
PDF Show:PDF
