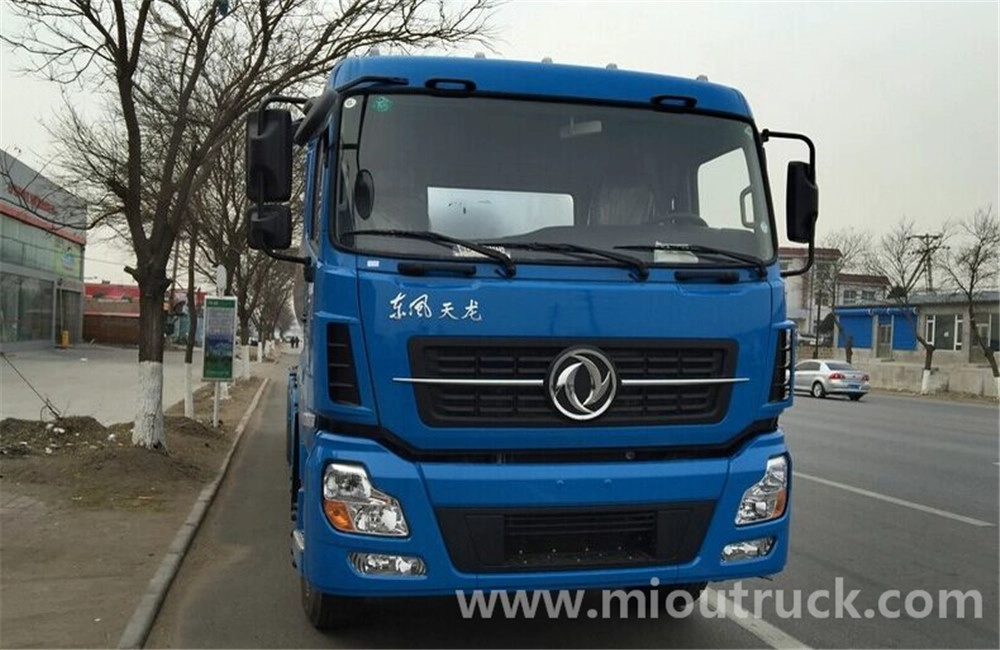

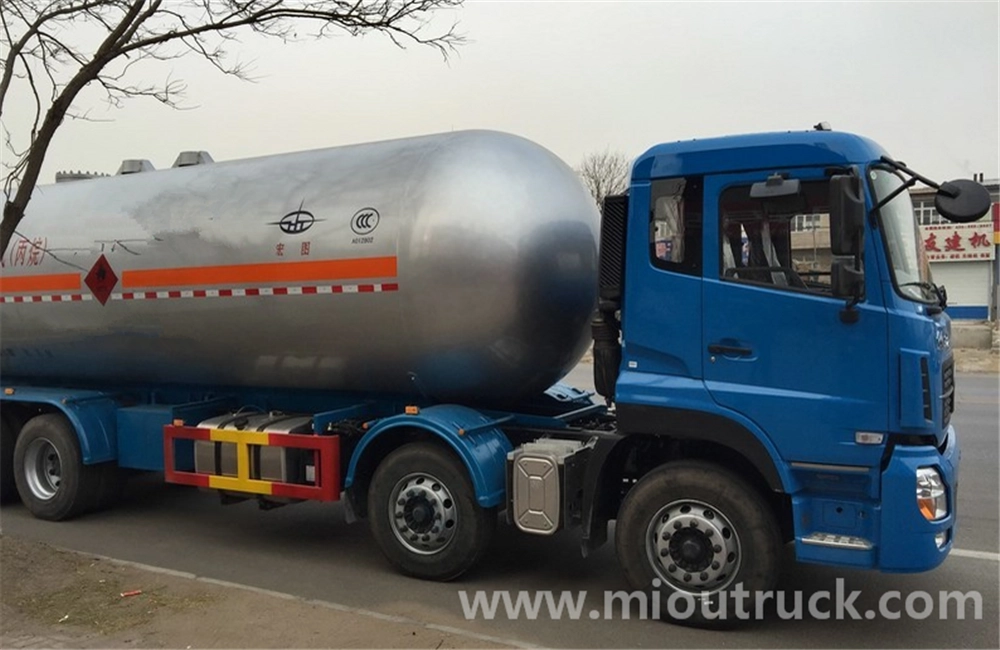

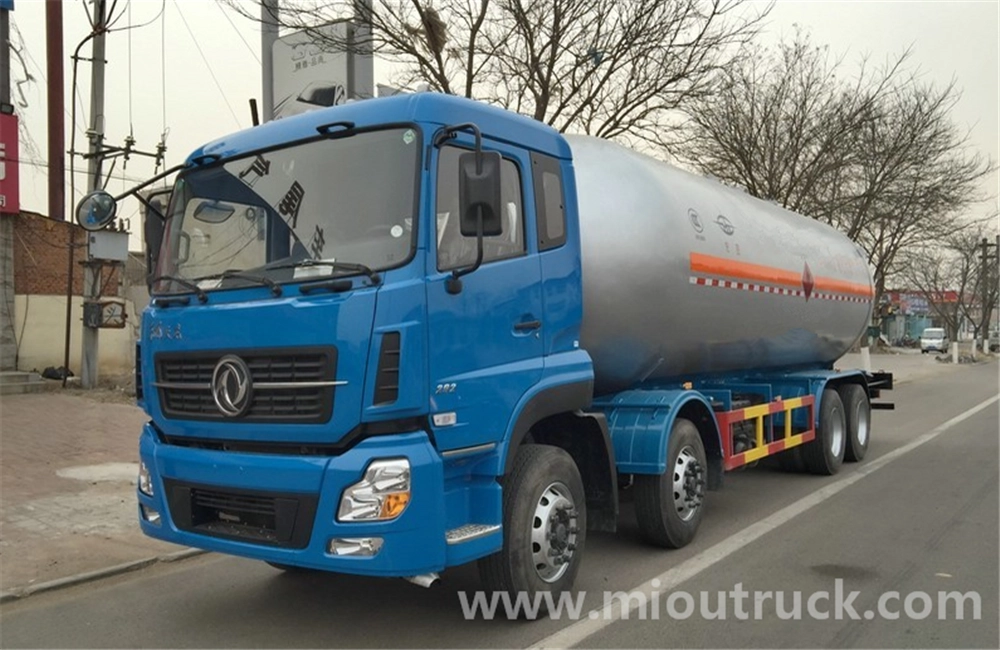

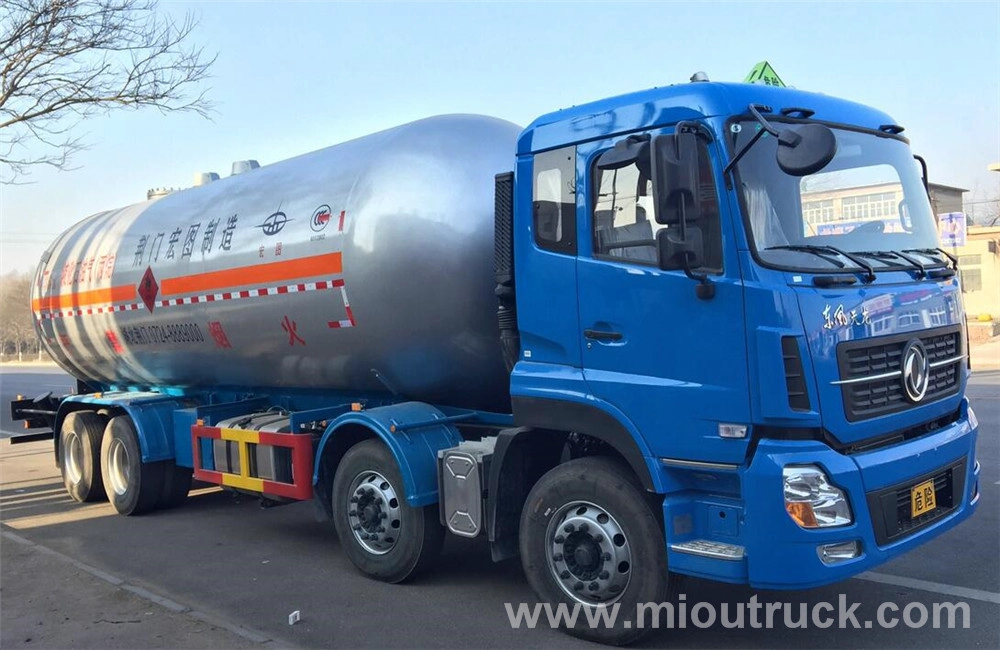

DONGFENG 12 Wheel 8x4 lpg tank truck tanker gas transport truck
- 1.Condition: New
- 2.Transmission Type: Manual
- 3.Emission Standard: Euro 4
- 4.Fuel Type: Diesel
- 5.Dimensions (L x W x H) (mm): 11980x2500x3690
- 6.Gross Vehicle Weight: 31000
- 7.Place of Origin: Hubei, China (Mainland)
- 8.Brand Name: DONGFENG
- 9.Model Number: HT5312GYQ3D
Quick Details:
Condition: | Storage: | Drive Wheel: | |||
Horsepower: | Transmission Type: | Fuel Type: | |||
Tank Volume: | Engine Capacity: | Dimensions (mm): |
Vehicle | Model | HT5312GYQ3D | |||
Overall dimension length/width/height(mm) | 11980*2500*3690 | ||||
Gross Vehicle Mass(kg) | 31000 | ||||
Curb weight(kg) | 15750 | ||||
Rated load(kg) | 15120 | ||||
Fuel Type | Diesel | ||||
Top speed(km/h) | 80 | ||||
Chassis | Brand | DONGFENG | |||
Model | DFL1311A10 | ||||
Drive type | 8*4, LHD(or RHD) | ||||
Number of Axles | 4 | ||||
Front track base (mm) | 2040/2040 | ||||
Rear track base (mm) | 1860/1860 | ||||
Approach/Departure Angle(°) | 20/10.4 | ||||
F/R Suspension (mm) | 1460/2720 | ||||
Number of Tyres | 12 | ||||
Tank body | Medium | LPG | |||
Shape | Round | ||||
Dimension (mm) | 9116x2370 | ||||
Total Volume(L) | 36 | ||||
Tanker Body Material | 5mm or 6mm Q235 carbon steel | ||||
Discharging Valve | Diameter is 3 or 4 inches | ||||
Compartments | 1-7 Optional |
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 15 days
Delivery date: 15 days
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
