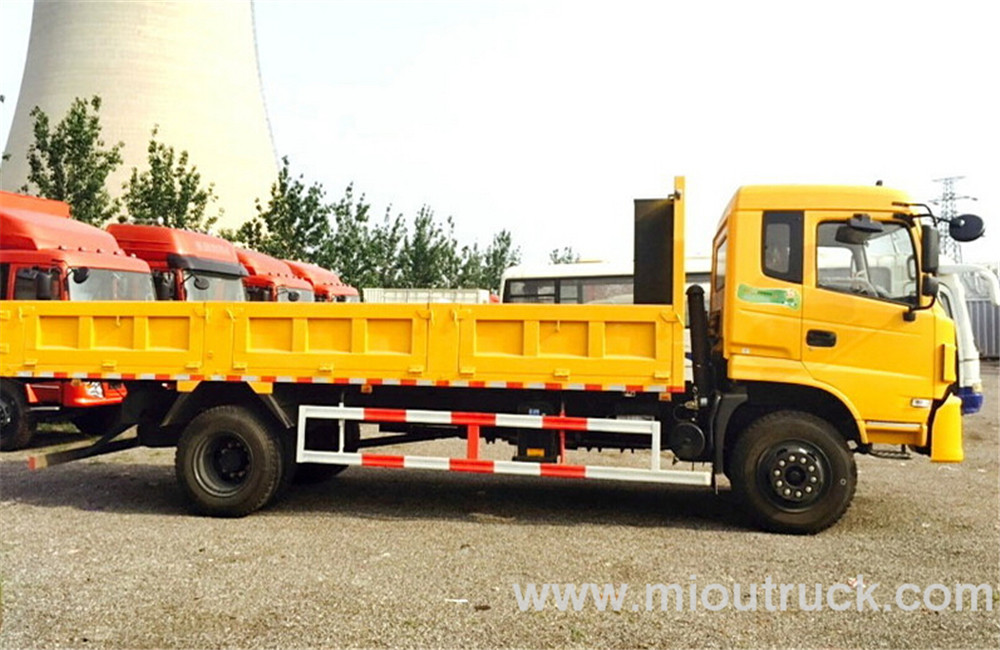

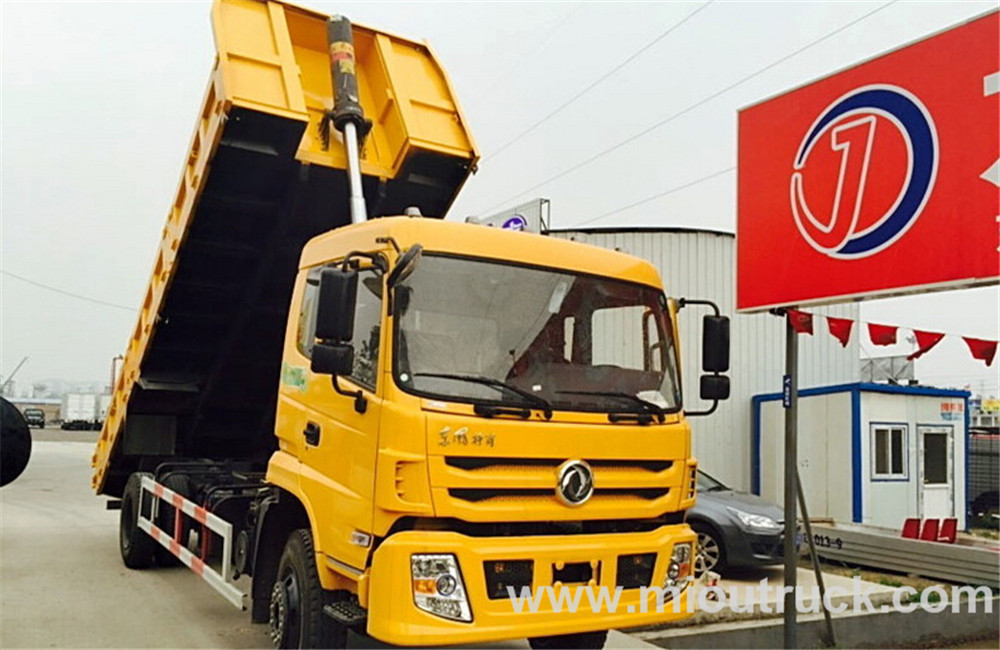

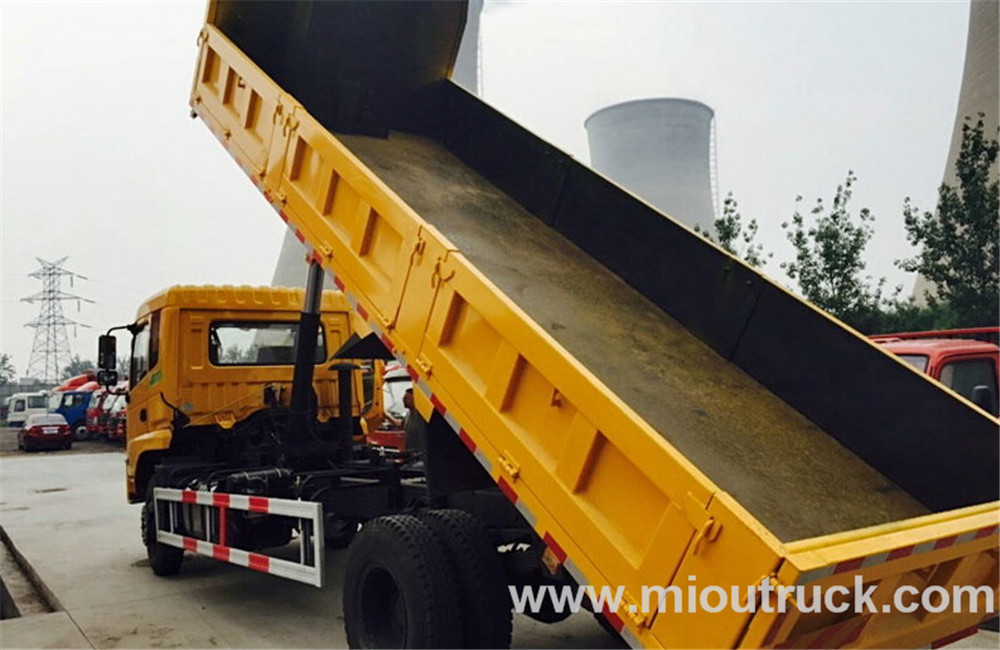

DONGFENG dumper tipper 4*2 Dump truck for sale supplier china
- 1.Drive Wheel:4*2
- 2.Capacity (Load):11 - 20t
- 3.Horsepower:150 - 250hp
- 4.Condition:New
- 5.Transmission Type:Manual
- 6.Emission Standard:Euro 4
- 7.Fuel Type:Diesel
- 8.Engine Capacity:4 - 6L
- 9.Gross Vehicle Weight:15900
Drive Wheel:4*2 Capacity (Load):11 - 20t Horsepower:150 - 250hp
Condition:New Transmission Type:Manual Emission Standard:Euro 4
Fuel Type:Diesel Engine Capacity:4 - 6L Gross Vehicle Weight:15900
Condition:New Transmission Type:Manual Emission Standard:Euro 4
Fuel Type:Diesel Engine Capacity:4 - 6L Gross Vehicle Weight:15900
| Vehicle | Model | EQ3160GF7 | |||
| Overall dimension length/width/height(mm) | 8800x2480x3000 | ||||
| Gross Vehicle Mass(kg) | 15900 | ||||
| Curb weight(kg) | 7580 | ||||
| Rated load(kg) | 8125 | ||||
| Fuel Type | Diesel | ||||
| Top speed(km/h) | 85 | ||||
| Chassis | Brand | DONGFENG | |||
| Model | EQ3160GFJ7 | ||||
| Drive type | 4*2, LHD(or RHD) | ||||
| Number of Axles | 2 | ||||
| F/R Axle load (kg) | 5950/9950 | ||||
| Wheel base (mm) | 5100 | ||||
| Front track base (mm) | 1920 | ||||
| Rear track base (mm) | 1800 | ||||
| Approach/Departure Angle(掳) | 23/15 | ||||
| F/R Suspension (mm) | 1230/2370 | ||||
| Number of Tyres | 6 | ||||
| Tyre type | 9.00R20,10.00R20 | ||||
| Pieces of spring | 9/10+8 | ||||
| Transmission | 5 forward gear,1 reverse gear,manual mechanical type | ||||
| Clutch | Uniwafer, dry clutch, hydraulic remote control | ||||
| Braking system | Air braking, cam drum braking | ||||
| Cab | One and half row non-longhead cab can turn over | ||||
| Air-condition | Chose to fix | ||||
| Engine | Model | ISB3.9-140E40A | |||
| Horse Power(hp) | 140 | ||||
| Displacement(cc)/Power(kw) | 3900/103 | ||||
| Emission | Euro4 | ||||
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R &
D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles
production base company of the Chinese Dongfeng Motor Group and also the Overseas
Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R &
D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles
production base company of the Chinese Dongfeng Motor Group and also the Overseas
Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can
be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 15 days
We provide you sincerely service，if you have interest,contact us now!
be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 15 days
We provide you sincerely service，if you have interest,contact us now!
We provide you sincerely service，if you have interest,contact us now!
Remarks:
The above information is just for your reference. We can manufacture the trucks as per
your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to
contact me. It would be my great pleasure to be on your service. Pls check my contact
information as following：
Remarks:
The above information is just for your reference. We can manufacture the trucks as per
your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to
contact me. It would be my great pleasure to be on your service. Pls check my contact
information as following：
