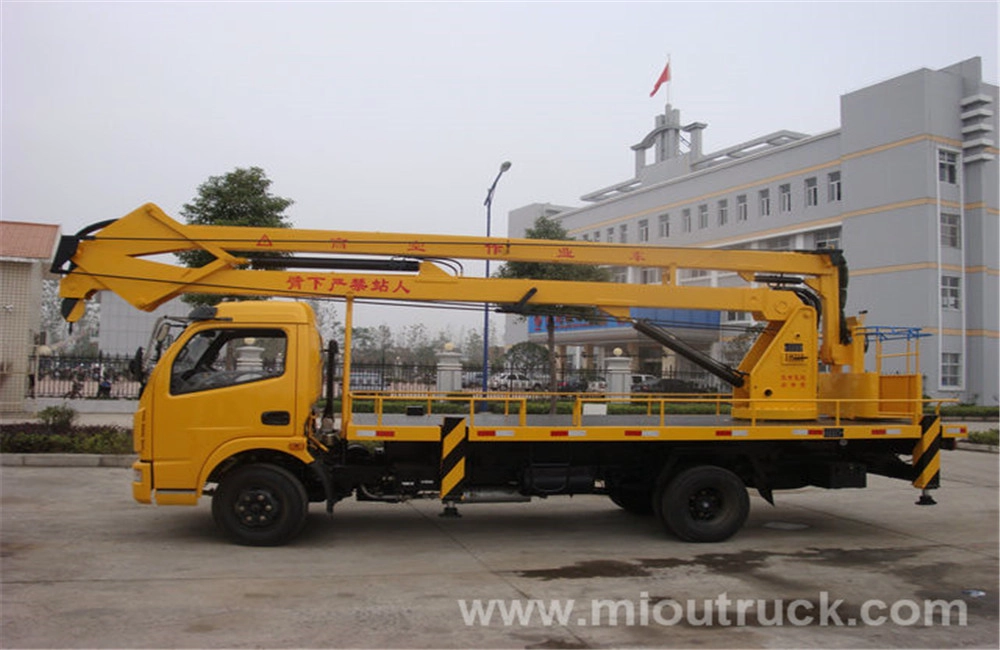

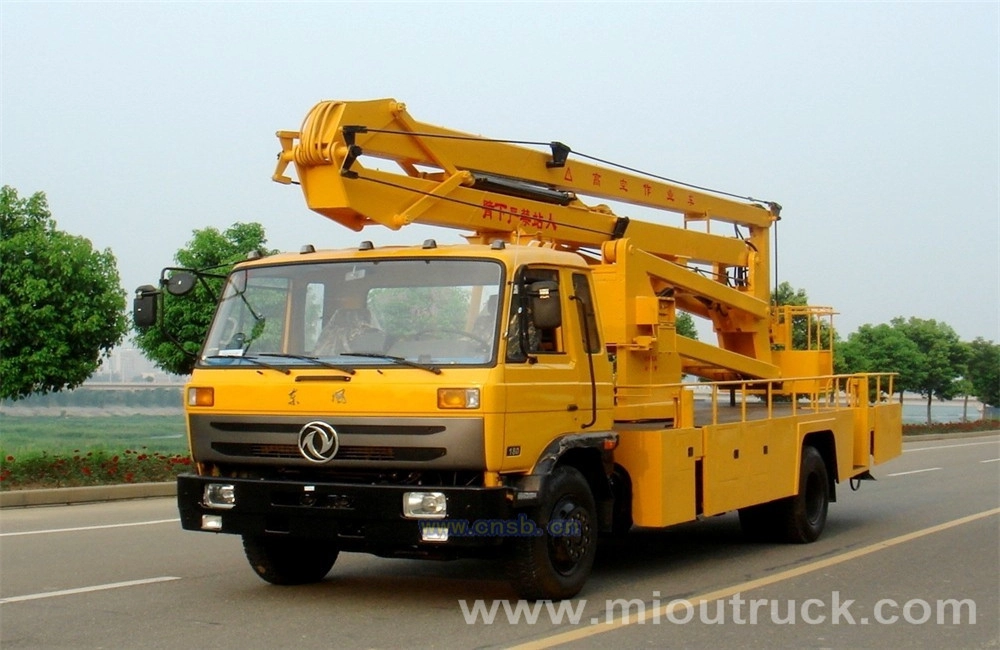

DongFeng 145 High-altitude Truck,high platform truck,good quality China manufacturers
- 1.Chassis model:EQ1108G6DJ16
- 2.Overall dimensions:7210mm×2470mm×3560mm
- 3.Fact loading:200kg
- 4.Exhaust/hp:5880/118ml/kw
- 5.Max speed:90km/h
- 6.Fuel type:Diesel
Condition:new Transmission Type:Manual Chassis model:EQ1108G6DJ16
Fuel type:Diesel Emission standard:Euro2 Place of origin:Hubei,China(Mainland)
Drive Type:4x2 Max speed:90km/h Fact loading:200kg
| Item | unit | parameter | |||
| Fuel type | / | Diesel | |||
| Chassis model | / | EQ1108G6DJ16 | |||
| Overall dimensions | mm | 7210×2470×3560 | |||
| Fact loading | kg | 200 | |||
| GVW | kg | Appro×10300 | |||
| Rated loading capacity | Appro×500 | ||||
| Mass in working order | Appro×10000 | ||||
| Body internal dimensions | mm | / | |||
| Wheel base | 3950 | ||||
| F/R track base | 1250/1820 | ||||
| Approach/departure angle | ° | 30/18 | |||
| Exhaust/hp | ml/kw | 5880/118 | |||
| Max speed | km/h | 90 | |||
| Tire specification | 9.00-20,9.00R20 | Engine type | EQB160-20 | ||
| Traction system | 4×2 | transmission | 6-speed with over drive | ||
| Number of axles | 2 | Electric system | 24v | ||
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | ||
| Equipment | max operation height≥18m,max operation radius≥7.5m,max working platform height≥16m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1100*570*1000mm,360°turning(left or right),4 H-shape legs. | ||||
| clients can shoose hydraulic parts made in China or Italy,to be mentioned. | |||||
| Engine | DongFeng Cummins Environmental Protection,supercharge,diesel engine | ||||
| Production cycle | 25-30 days | ||||
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:

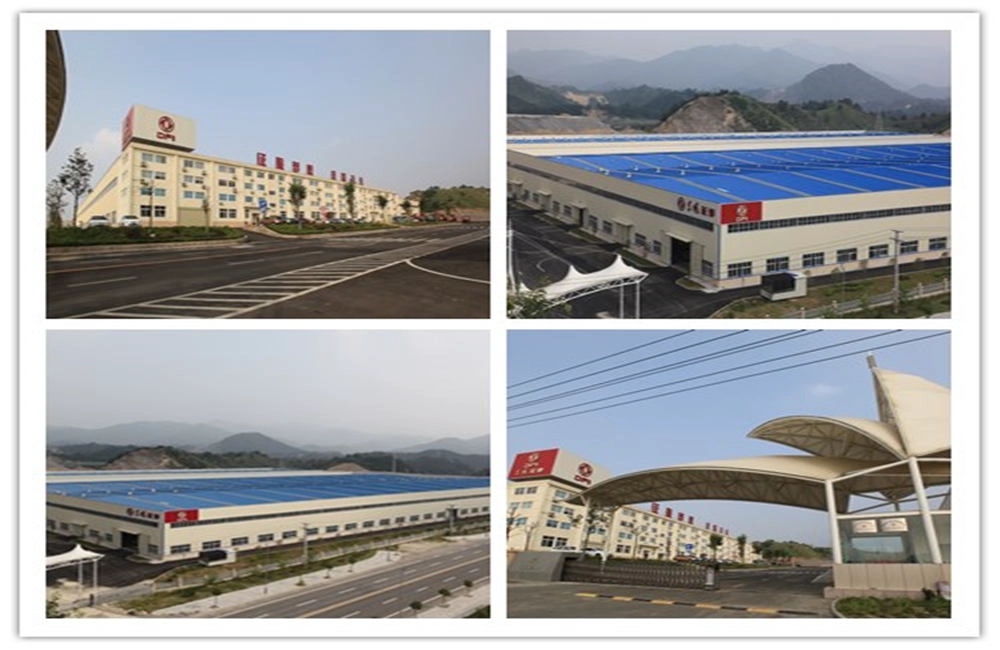

Factory Display:
Packaging Details:
nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriersor ro-ro ship or according to your requirements
Delivery Detail: 15 days
Hubei Miou Special Automobile Technology Co.,Ltd
Tel:+86 18154490468
Contact Person:Caitlin
PDF Show:PDF
