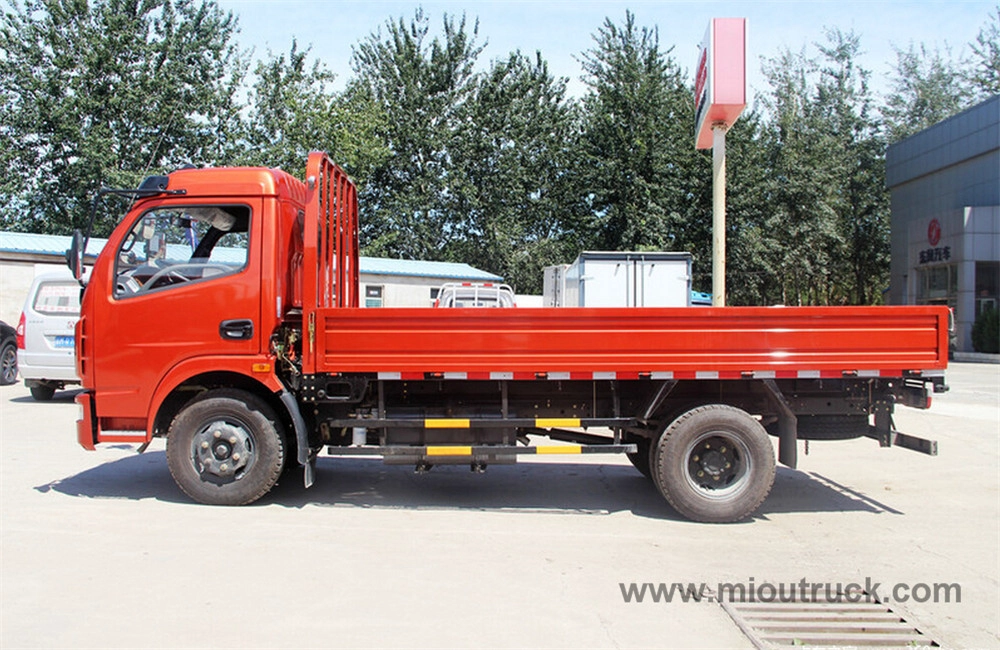

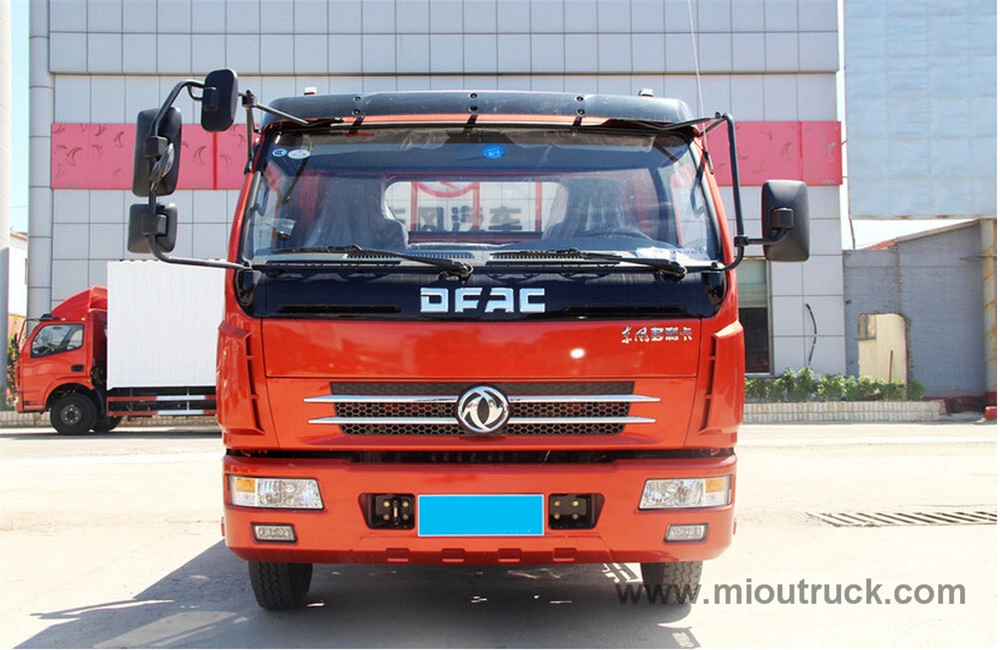

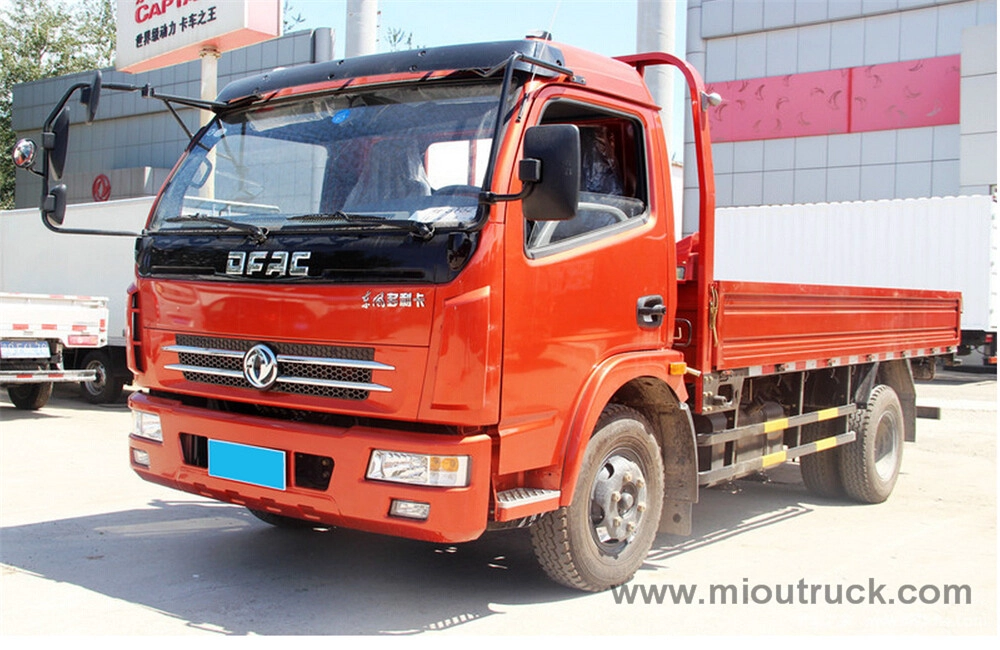

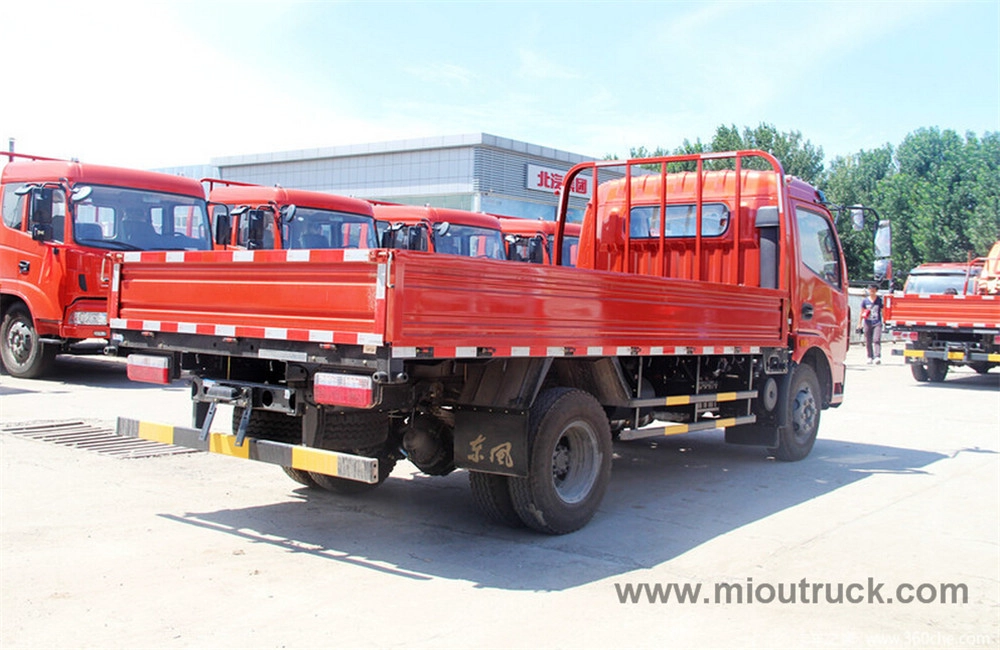

Factory direct sale Euro 4 diesel engine 115hp 2ton 4x2 small dump truck
- 1.Condition:New
- 2.Drive Wheel:4x2
- 3.Fuel Type:Diesel
- 4.Transmission Type:Manual
- 5.Emission Standard:Euro 4
- 6.Max Speed:110km/h
- 7.Cab Seats:3
- 8.Vehicle Model:DFA1041S11D2
- 9.Engine Brand:YUCHAI
Condition:New Brand Name:Dongfeng Transmission Type:Manual
Drive Wheel:4x2 Max Speed:110km/h Emission Standard:Euro 4
Fuel Type:Diesel Engine Brand:YUCHAI Vehicle Model:DFA1041S11D2
If you want to know more information about other varieties of truck crane. Please click here:javascript:void(0);/*1459323373210*/
| Vehicle Model | DFA1041S11D2 | |
| Load Parameters | ||
| G. V. W. (kg) | 4445 | |
| Curb weight, toal (kg) | 2450 | |
| Loading capacity (kg) | 1800 | |
| Drive form | 4x2 | |
| Max. speed KM/h | 110KM/h | |
| Leaf spring | 8/10+7 | |
| Appr/Dep.:(°) | 27/21 | |
| Dimension Parameters | ||
| Dimension(mm) (L*W*H) | 5995X2150X2500 | |
| Cargo box | Dimension(L*W*H) | 4150X2050X400 |
| Wheel base(mm) | 3300 | |
| Wheel trace(mm) | 1586, 1530 | |
| Configuration Parameters | ||
| Cabin | Cabin type | Single |
| Seating capacity | 3 | |
| Engine | Brand&Model | YC4FA115-40 |
| Max. horsepower | 115hp | |
| Max. power | 85KW/1600-2400RPM | |
| Max.output torque | 300N.m | |
| Displacment(ml) | 2982 | |
| Combustion types | Diesel | |
| Gear box | Brand&Model | DONGFENG 646(A100) |
| Fuel tank capacity | 125L | |
| Emission standard | EURO 4 | |
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.

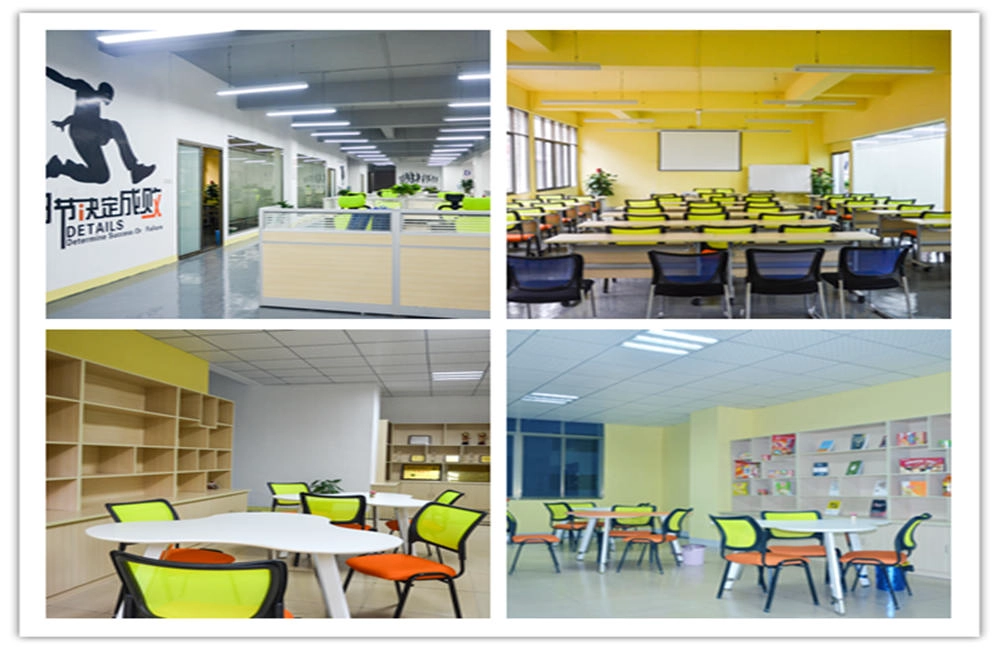

Company Display:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:

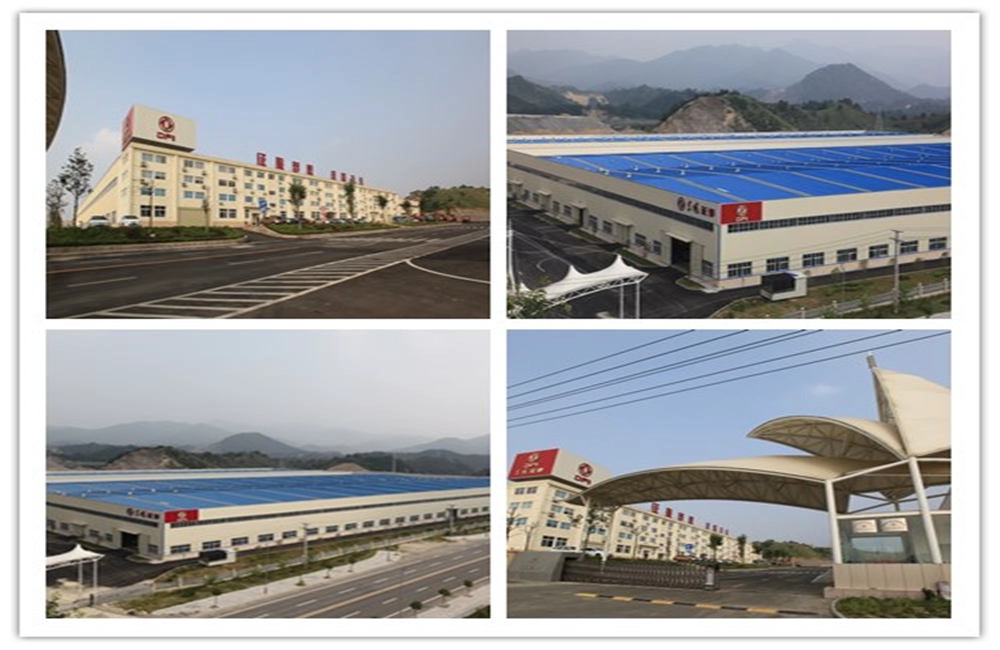

Factory Display:
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 15 days
Delivery date: 15 days
We provide you sincerely service，if you have interest,contact us now!
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
