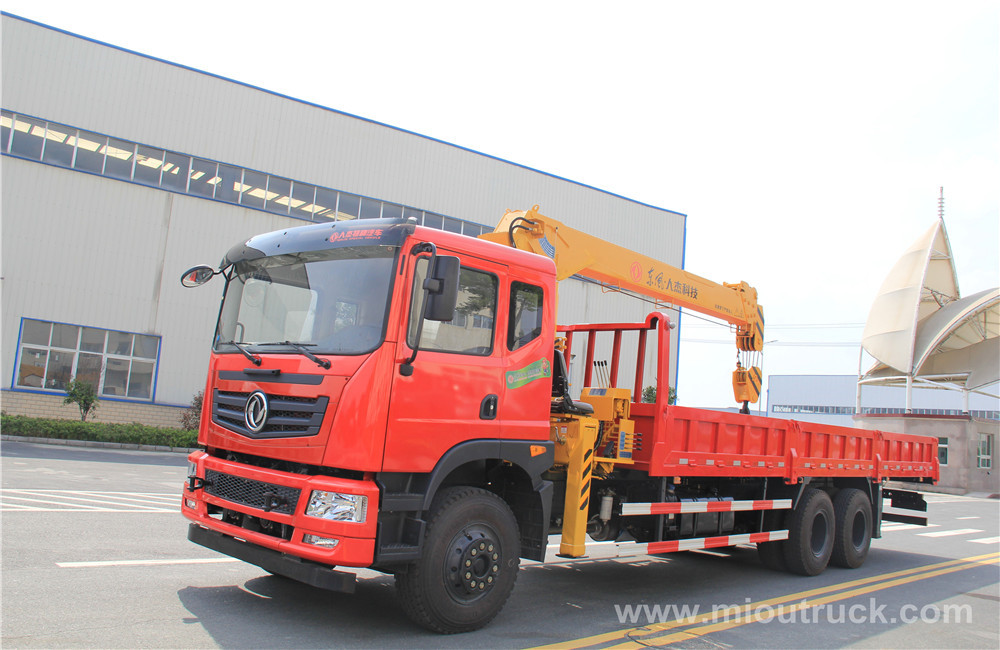

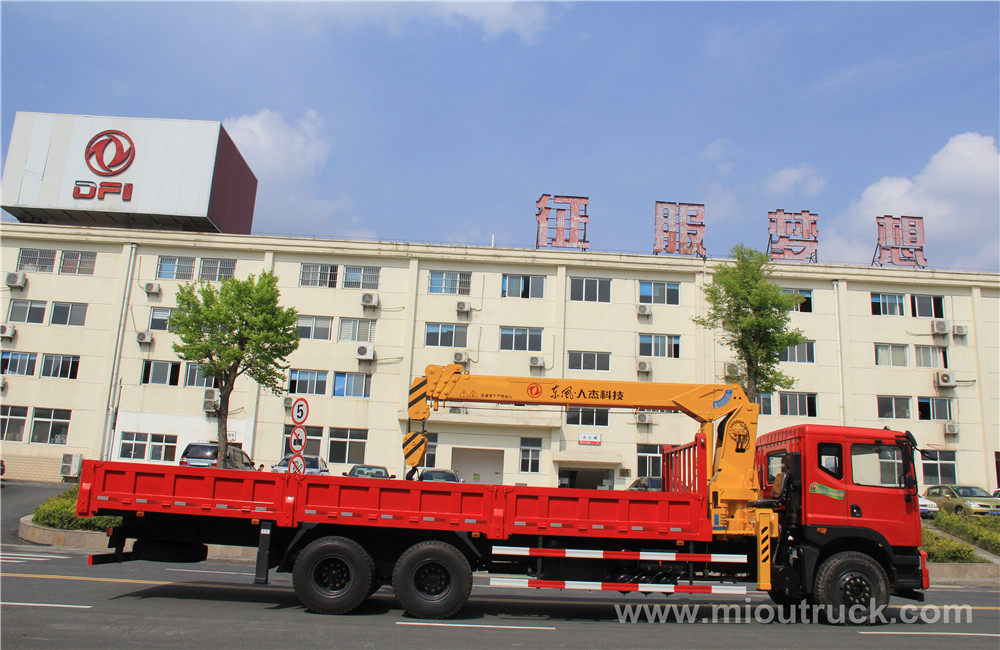

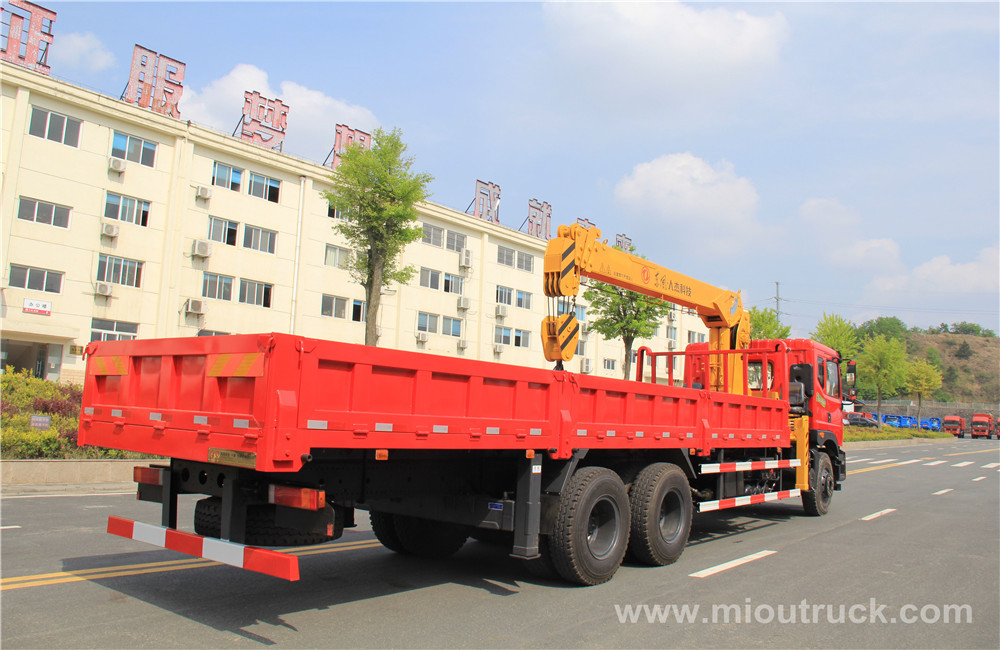

DongFeng Tianjin 6*4 chassis truck-mounted crane UNIC 160 horsepower truck with crane for sale
- 1.Condition:New
- 2.Brand Name:Dongfeng
- 3.Fuel Type:Diesel
- 4.Transmission Type:Manual
- 5.Emission Standard:Euro 3
- 6.G.V.W:25000kg
- 7.Payload:9815kg
- 8.Drive Wheel:6x4
- 9.Max Speed:90km/h
Condition:New Brand Name:Dongfeng Transmission Type:Manual
Max Speed:90km/h Fuel Type:Diesel Emission Standard:Euro 3
Payload:9815kg Drive Wheel:6x4 G.V.W:25000kg
| [Main specifications] | |||||||
| Product model,name | DongFeng Tianjin 6*4 chassis truck-mounted crane | ||||||
| Gross vehicle weight(kg) | 25000 | Drive type | 6 x 4 | ||||
| Payload(kg) | 9815 | cab seats (man) | 3 | ||||
| Curb weight(Kg) | 14990 | Overall dimension (mm) | 10980×2500×3750 | ||||
| Approach/departure angle (°) | 20/13 | Box internal dimension(mm) | 7300×2294×550 | ||||
| Number of axles | 3 | Front/rear hang(mm) | 1460/2870 | ||||
| Axle load(Kg) | 7000/18000 | Wheelbase(mm) | 5350+1300 | ||||
| Max speed(Km/h) | 90 | ||||||
| [Chassis specifications] | |||||||
| Chassis model | DFL1250A9 | Brand name | Dongfeng | ||||
| Manufacturer | Dongfeng Motor Corporation | Tires No. | 10 | ||||
| Approach/departure angle (°) | 20/16,15,13 | Tire specification | 11.00R20 | ||||
| Steel spring number | 8/9 | Front track(mm) | 19,862,040 | ||||
| Fuel type | Diesel | Rear track(mm) | 1860/1860 | ||||
| Emission standard | Euro III | Transmission | 9 gears | ||||
| Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | ||||
| C260 33 | Dongfeng engine co., LTD | 8300 | 191 | ||||
Q:How about the warranty?
A:One year
Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.
Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A:Almost 3000 units
Q: How do you control the quality of product?
