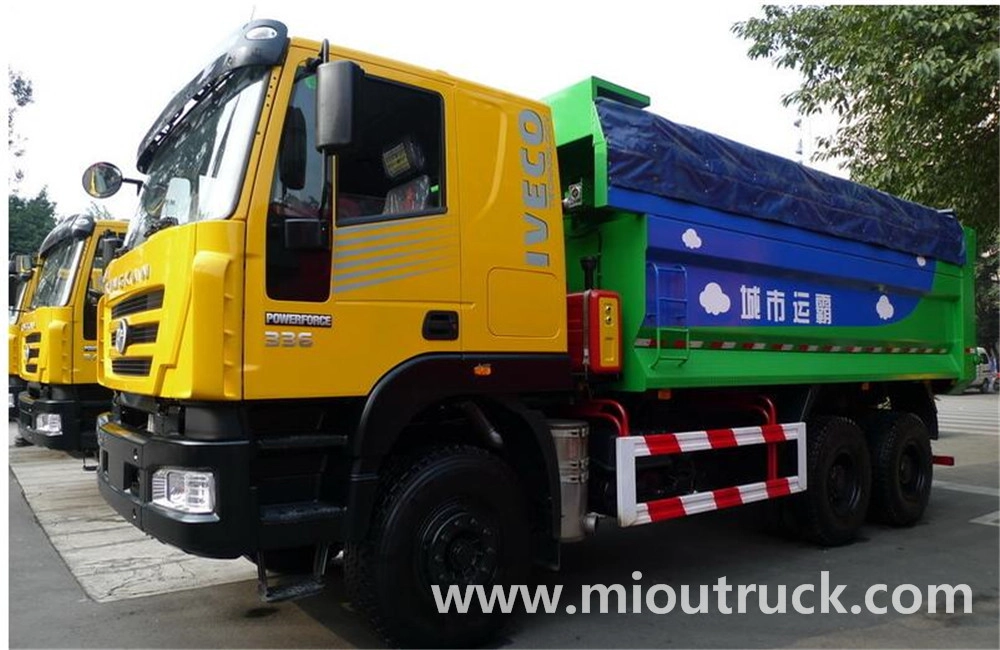

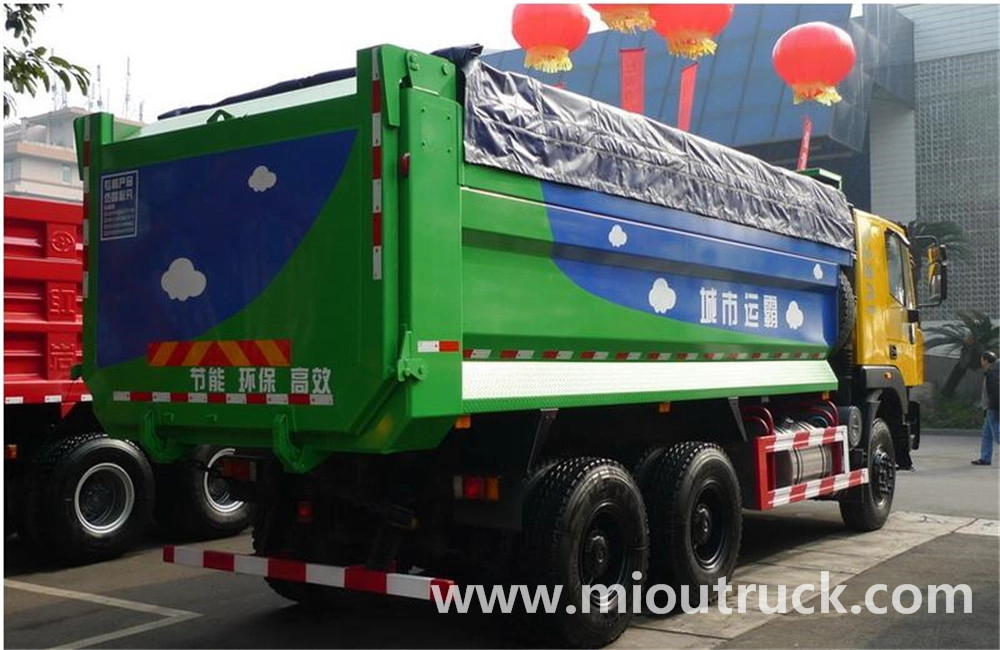

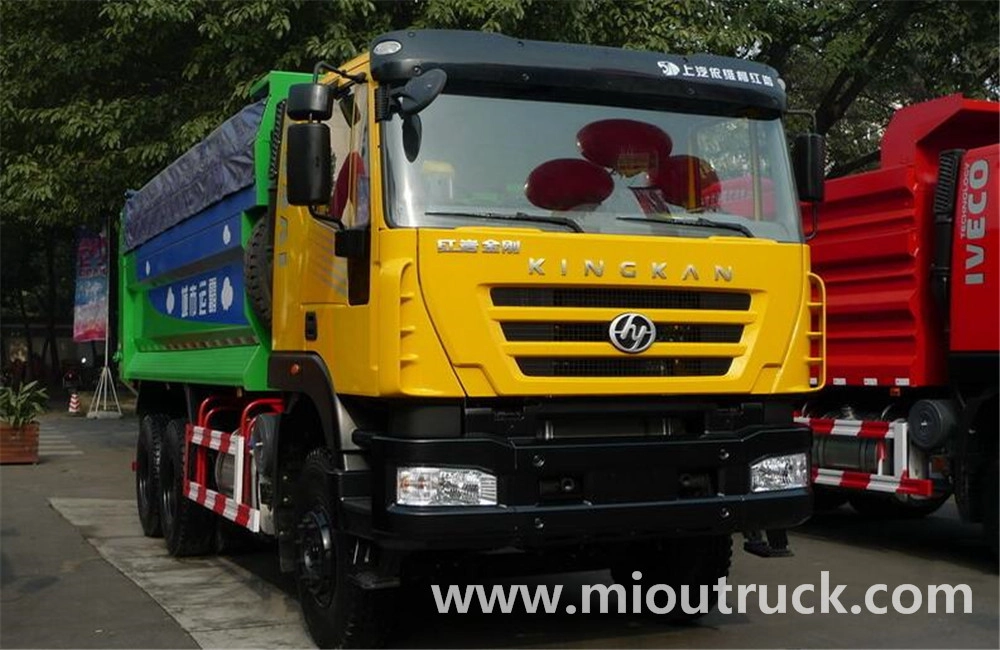

Hongyan 6x4 336hp dumper garbage truck for sale
- 1.Place of Origin: Hubei, China
- 2.Brand Name: HONGYAN
- 3.Model Number: CQ3255HTG404
- Dimension(mm): 8720*2500*3460
- 4.Weight: 25000
- 5.Certification: ISO,BV,CCC
- 6.Wheel base: 4000+1400mm
- 7.Max. travel speed: 80km/h
| Quick Details | |||||
| Place of Origin: | Hubei, China | Brand Name: | HONGYAN | Model Number: | CQ3255HTG404 |
| Dimension(mm): | 8720*2500*3460 | Weight: | 25000 | Certification: | ISO,BV,CCC |
| Wheel base: | 4000+1400mm | Max. travel speed: | 80km/h | Engine model: | WP10.336E40 |
| Vehicle | Model | CQ3255HTG404 | |||
| Overall dimension length/width/height(mm) | 8720x2500x3460 | ||||
| Gross Vehicle Mass(kg) | 25000 | ||||
| Curb weight(kg) | 12090 | ||||
| Rated load(kg) | 12780 | ||||
| Fuel Type | Diesel | ||||
| Top speed(km/h) | 80 | ||||
| Chassis | Brand | HONGYAN | |||
| Model | CQ3255HTG40-504 | ||||
| Drive type | 6*4, LHD(or RHD) | ||||
| Number of Axles | 3 | ||||
| F/R Axle load (kg) | 7000/18000 | ||||
| Wheel base (mm) | 4000+1400 | ||||
| Front track base (mm) | 2006 | ||||
| Rear track base (mm) | 1850/1850 | ||||
| Approach/Departure Angle(°) | 25/20 | ||||
| F/R Suspension (mm) | 1435/1885 | ||||
| Number of Tyres | 10 | ||||
| Tyre type | 11.00-20 18PR | ||||
| Pieces of spring | 9/12 | ||||
| Air-condition | Chose to fix | ||||
| Engine | Model | F2CE3681G*P | |||
| Horse Power(hp) | 350 | ||||
| Displacement(cc)/Power(kw) | 8709/257 | ||||
| Emission | Euro4 | ||||
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery date: 15 days
Delivery date: 15 days
Q:How about the warranty?
A:One year
Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.
Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A:Almost 3000 units
We provide you sincerely service，if you have interest,contact us now!
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
