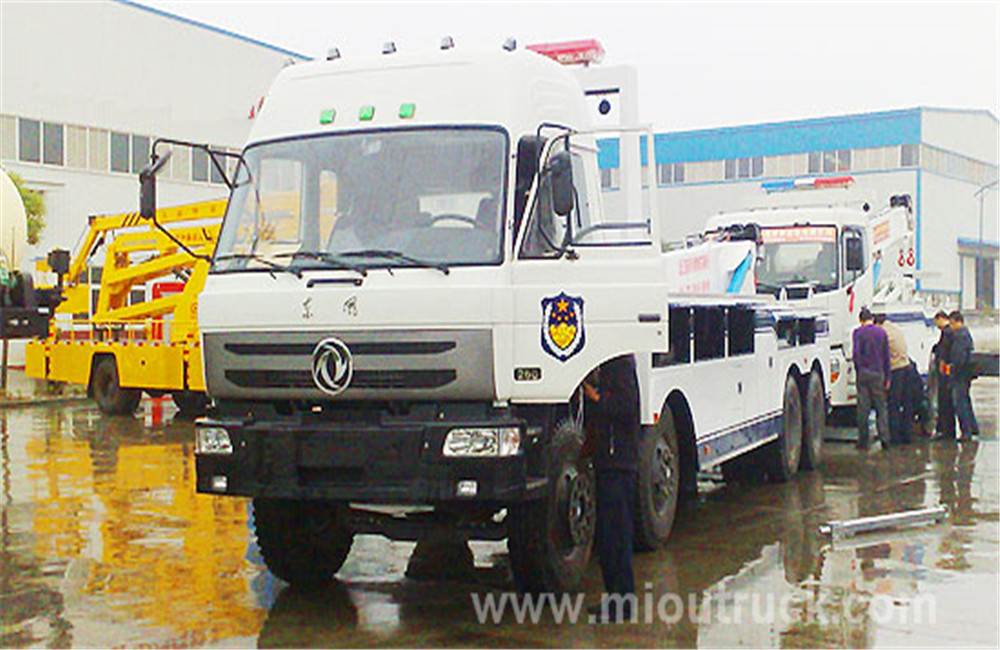

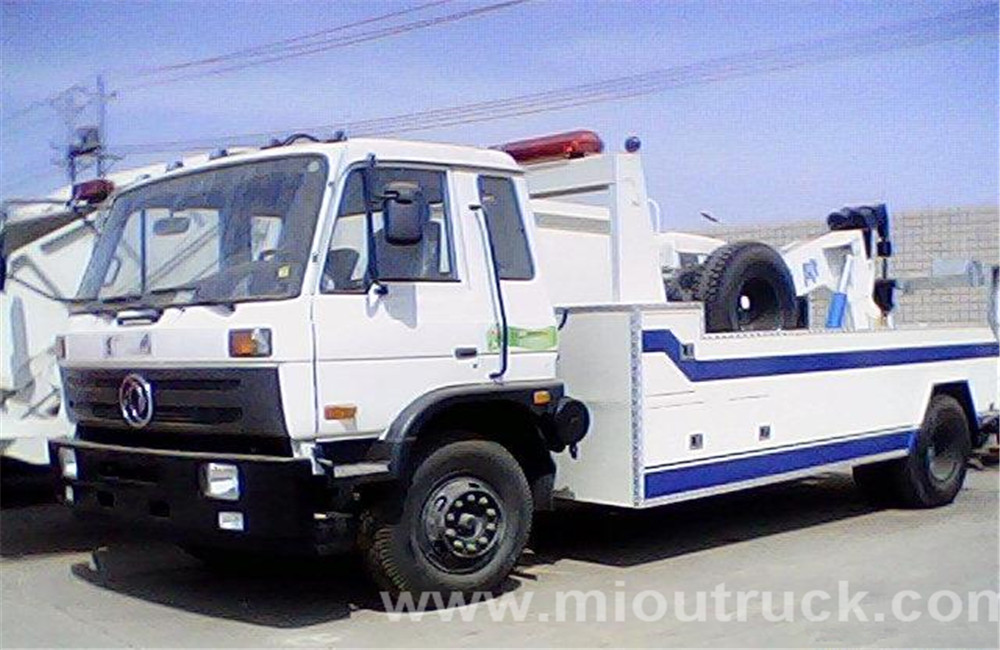

Hot product of DongFeng brand road wrecker Wrecker truck in China
- 1.Overall dimension：7840×2480×3030mm
- 2.Traction system: 4×2
- 3.Engine type: EQB180-20
- 4.Wheel base: 5000 mm
- 5.F/R track base: 940/1860 mm
Quick Details:
Fuel Type: Diesel Transmission Type: Manual Engine: Commins
Emission Standard: Euro 3 Place of Origin: Hubei, China Horsepower: 180hp
Condition: New Fact lift weight: 4000Kg Lift Weight: 4000kg
| wrecker truck | |||
| Item | Unit | Parameter | |
| Chassis | EQ1141G7DJ2 | ||
| Overall dimension | mm | 7840×2480×3030 | |
| Fact lift weight | kg | 3800-4000 | |
| Mass in working order | kg | Appro×10300 | |
| Arm extension stroke of lift | mm | Approx2000 | |
| Max loading weight | kg | Approx14000 | |
| Max starting power | Kg | Approx13000 | |
| Case dimension | mm | NO | |
| Wheel base | 5000 mm | Engine type | EQB180-20 |
| F/R track base | 1940/1860 mm | Exhaust/hp | 5880/132 ml/kw |
| F/R over hang | 1245/1970mm | fuel consumption / 100 km | 22.4L |
| Approach/Departure angle | 34/14 ° | Min turning radius | 18 m |
| Max speed | 90 km/h | Max grade ability | 28° |
| Tire | 10.00-20 | Min ground clearance | 248 mm |
| Armor plate spring quantity | 8/10+8 | Gearbox | 6speeds |
| Brake System | Exhaust brake | Clutch | 395 mm |
| Brake space | 8.5m | Air condition | optional |
| Traction system | 4×2 | Electric system | 24v |
| Number of axles | 2 | Allowable passengers in cab | 3 |
Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:
Factory Display:
Packaging Details:
nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriersor ro-ro ship or according to your requirements
Delivery Detail: 15 days
Q:How about the warranty?
A:One year
Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 15 days, if specially ordered , we always need around 30 days for production.
Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A:Almost 3000 units
Q: How do you control the quality of product?
A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
Q: What’s the payment terms?
A:By T/T or L/C at sight.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine, Kazakhstan, Azerbaijan, Iran, Iraq, Algeria, Turkey, Brazil, Thailand, Vietnam, Angola etc, and gain good reputation from local market.
If you have any other questions or need any other information, please feel free to contact me. It would be my great pleasure to be on your service. Please check my contact information as following:
