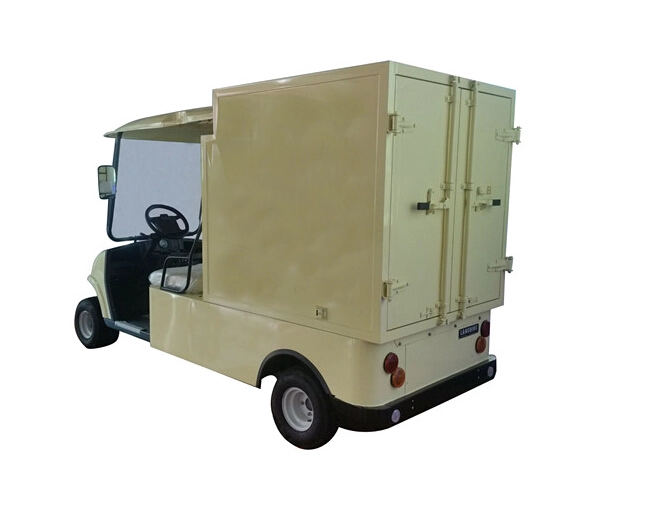

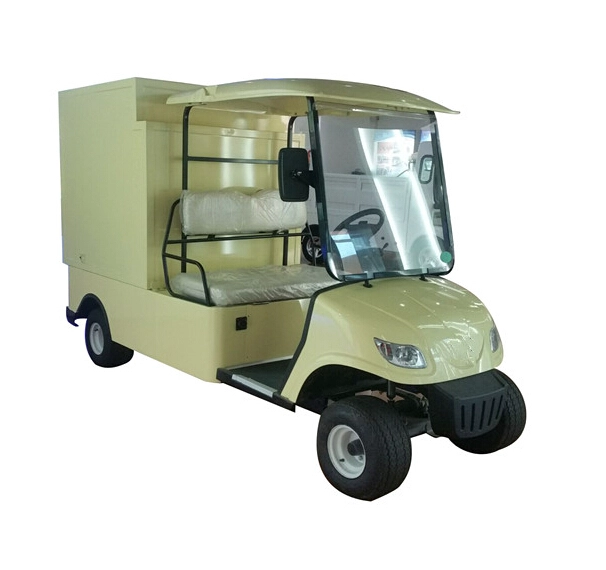

electric cargo transportation vehicles

• Passenger capacity 2 seats
• Max speed 24km/h
• Range (loaded) 80km
• Climbing ability (loaded) 25%
• Braking distance ≤4.3m
• Min.Turning Raius 4.3m
• Min.Clearance 105mm
• Recharge time 8~10h
• LXWXH 3280×1220×1950mm
• F/R Tread 870/980mm
• Axle Distance 2450mm
• Curb Weight 690kg
• Max. loading 320kg
• Motor 48V/3KW DC motor
• Controller 48V/300A
• Battery Maintenance-free battery 6V*8PCS
• body and Roof ABS Plastic/ PP material
• Windshield one – piece see-through POLYCARBONATE glass
• Seats Sponge + artificial leather
• Rear view mirror 2pcs
• Bumper Front and rear Bumper
• Tire golf course use 18×8.50-8  6PR
• Chassis Welded tubular steel with rust-proof powder coated paint
• Steering Single reduction rack and pinion
• Front Suspension non-independent suspension, leaf spring+Barrel type hydraulic shock absorber
• Rear suspension non-independent suspension, leaf spring+Barrel type hydraulic shock absorber
• lighting system 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
• Sound system Horn, back-up buzzer
• Brake system Dual rear wheel mechanical self-adjusting drum brakes.  Automatic park brake
• Charger Automatic high efficiency pulse, Output:48V/25A, Input AC  220V/50HZ
• Dashboard 4 cups cup holders+1  phone holder, electricity meter, speedometer, Headlight switch, turn signal switch
