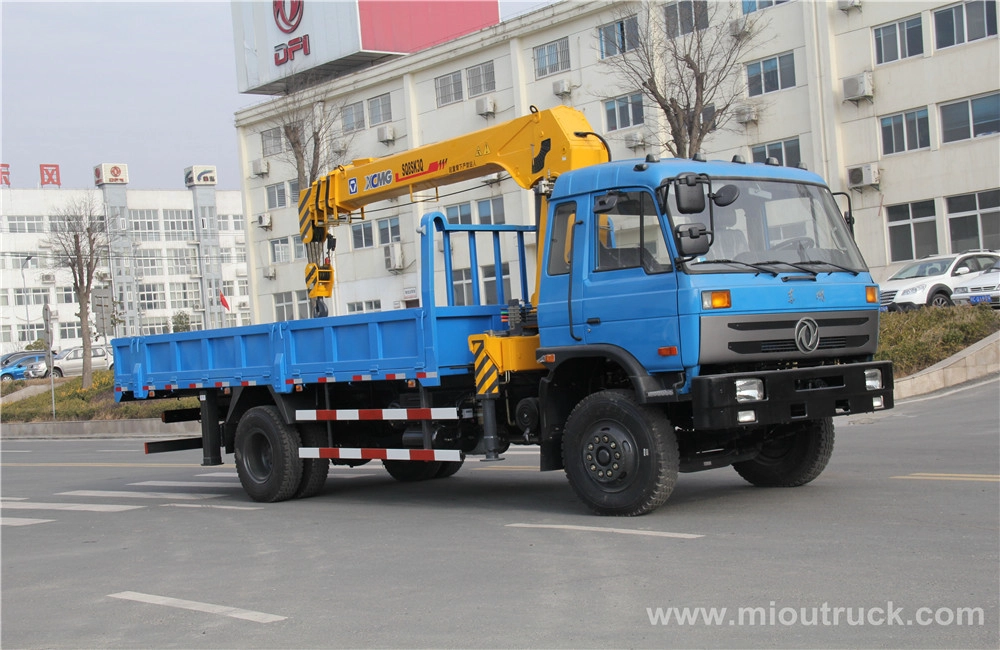

Tianjin Dongfeng 4X2 chassis 4 telescopics boom trucks mounted crane UNIC for sale China suppliers
- 1.Vehicle Model: EQ5160JSQZM2
- 2.Chassis Model / Manufacturer: EQ1160ZZ4GJ1
- 3.Cab:Dongfeng Tianjin
- 4.Total Weight: 16500kg
- 5.Fuel Type: Diesel
- 6.Tire type 10.00-20R
- 7.Driving Type: 4X2
- 8.Max speed: 90km / h
Condition: New Fuel Type:Diesel Emission standard: EURO 3
Manufacturer:EQ1160ZZ4GJ1 Max speed:90km/h Cab:Dongfeng Tianjin
Rated load: 7405kg Driving Type: 4X2
| Crane trucks | ||||||
| Vehicle Model | EQ5160JSQZM2 | |||||
| Technical parameters Chassis | ||||||
| Chassis Model / Manufacturer | EQ1160ZZ4GJ1 | |||||
| Taxi Services | Dongfeng Tianjin | |||||
| Overall dimensions | Length high | mm | 8500 * 2580 * 2300 | |||
| The size of the cargo box | Length high | mm | 6100x2300x550 | |||
| The overall weight | kg | 16500 | ||||
| Rated load | kg | 7405 | ||||
| Kerb weight | kg | 9050 | ||||
| Suspension front / rear suspension | 1250/2550 | |||||
| Engine | Model /Popular Power | EQH160-40 / ISDe180-40 | ||||
| Standard clearance | Euro 3 | |||||
| Type of fuel | Diesel | |||||
| Type of tire | 10.00-20R | |||||
| Driving Type | 4X2 | |||||
| Wheel Base | mm | 4700 | ||||
| Number of axles | section | 2 | ||||
| Max Speed | Km / h | 90 | ||||
| Tech Parameter Crane | ||||||
| Performance lift | Not rated lifting capacity | t | 8 | |||
| Min. working radius | m | 5,176 | ||||
| Max. working radius | m | 14,142 | ||||
| Max. Load time | Base explosion | KN.m | 1166 | |||
| Fully extended boom | KN.m | 645 | ||||
| Fully extended boom + jib | KN.m | 475 | ||||
| Outrigger span | Longitudinal | m | 5:35 | |||
| Lateral | m | 6 | ||||
| Lifting height | Base explosion | m | 10.5 | |||
| Fully extended boom | m | 33 | ||||
| Fully extended boom + jib | m | 48 | ||||
| Noise limits | Crane External Sound | dB (A) | ≤118 | |||
| If Seated | dB (A) | ≤90 | ||||
Brief Introduction:
Miou is located in Shiyan, Hubei province, China.Our company is specialized in R & D,manufacture and sales of special purpose vehicles .We are the special purpose vehicles production base company of the Chinese Dongfeng Motor Group and also the Overseas Department of Dongfeng Zhengmeng Special Purpose Vehicle Co., Ltd.
Company Display:

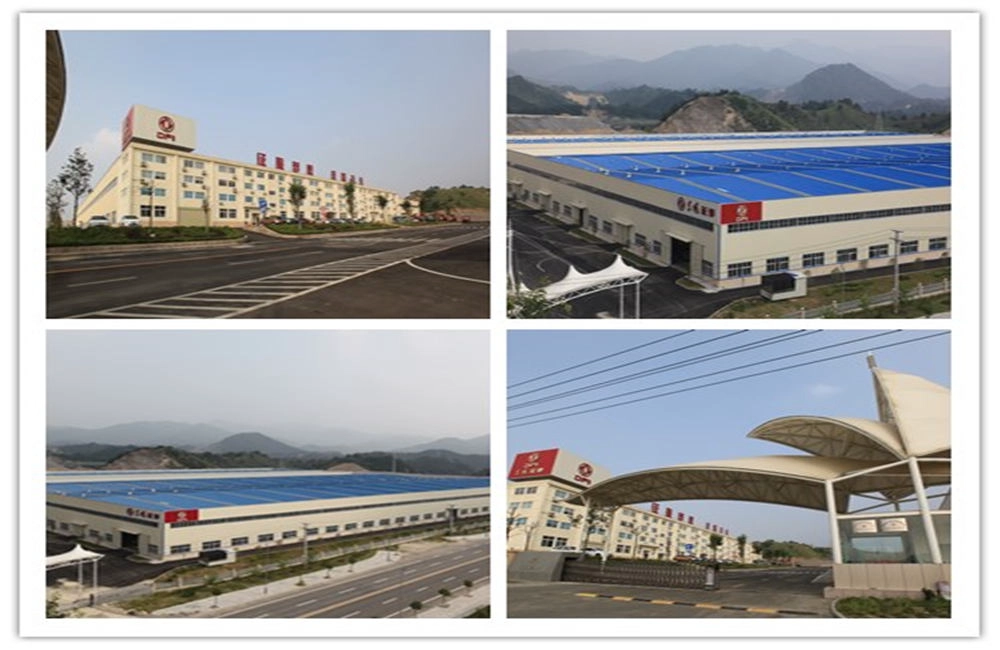

Factory Display:
Packaging Details:
nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriersor ro-ro ship or according to your requirements
Delivery Detail: 15 days
